LEXUS LS430 UCF30L-AEAGKV / TOOL-ENGINE-FUEL / STARTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

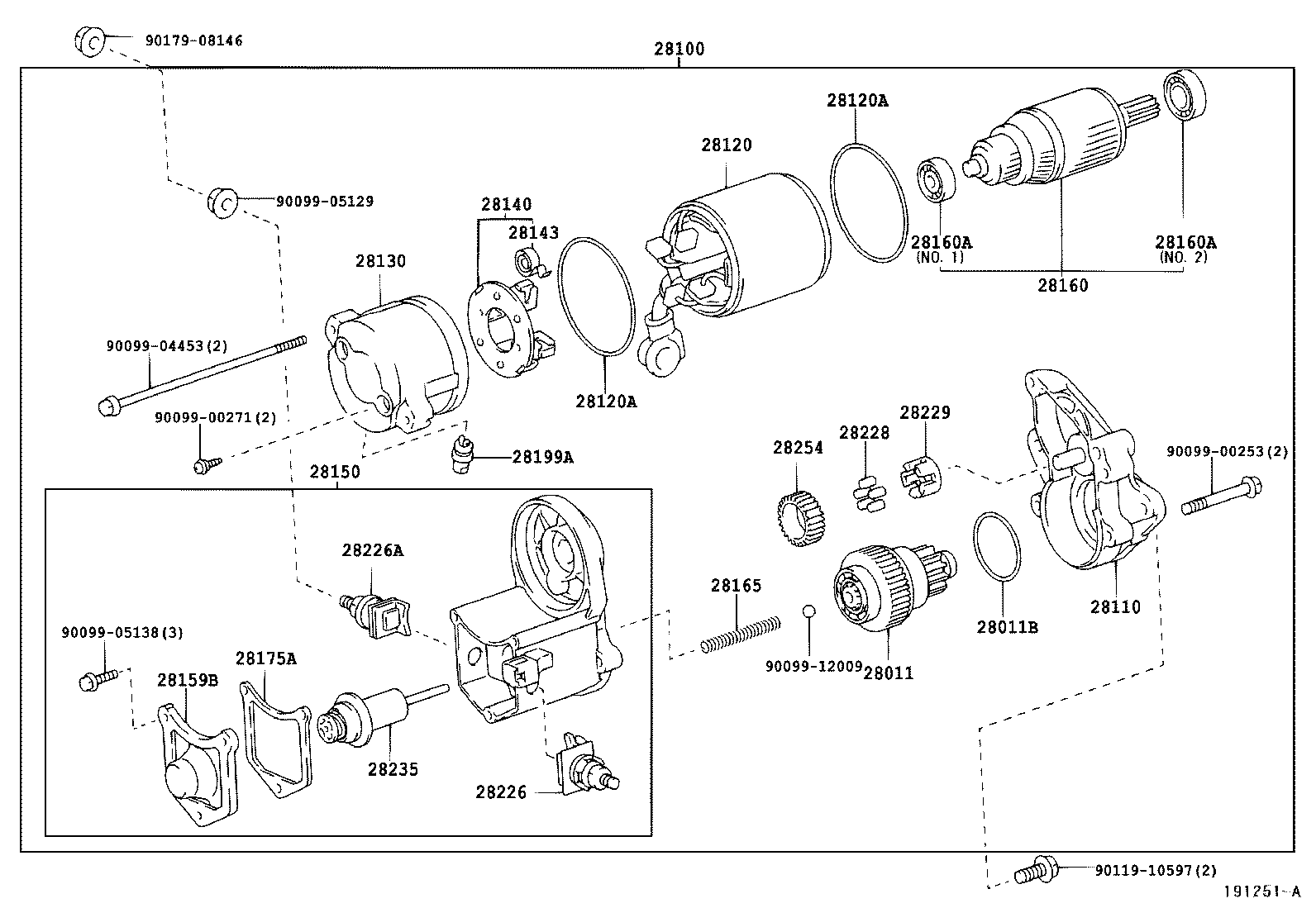

STARTER

12V 2.0KW ILLUST NO. 2 OF 3(0008-0307)3UZFE..LHD

LS430 | STARTER 28011 - CLUTCH SUB-ASSY, STARTER 28011B - RING, O(FOR STARTER CLUTCH) 28100 - STARTER ASSY 28110 - HOUSING ASSY, STARTER DRIVE 28120 - YOKE ASSY, STARTER 28120A - RING, O(FOR STARTER YOKE) 28120A - RING, O(FOR STARTER YOKE) 28130 - FRAME ASSY, STARTER COMMUTATOR END 28140 - HOLDER ASSY, STARTER BRUSH 28143 - SPRING, STARTER BRUSH 28150 - SWITCH ASSY, MAGNET STARTER 28159B - COVER, MAGNET SWITCH 28160 - ARMATURE ASSY, STARTER 28160A - BEARING, STARTER ARMATURE 28160A - BEARING, STARTER ARMATURE 28165 - SPRING, STARTER MAGNET SWITCH RETURN 28175A - GASKET, MAGNET SWITCH COVER 28199A - PROTECTOR, DUST STARTER 28226 - STARTER KIT, BATTERY TERMINAL 28226A - STARTER KIT, MOTOR TERMINAL 28228 - ROLLER, STARTER IDLE GEAR CLUTCH 28229 - RETAINER, STARTER IDLE GEAR 28235 - PLUNGER, MAGNET SWITCH 28254 - PINION, STARTER IDLE GEAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
