LEXUS RX300 MCU15R-AWPGKW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FRONT SEAT SEAT TRACK

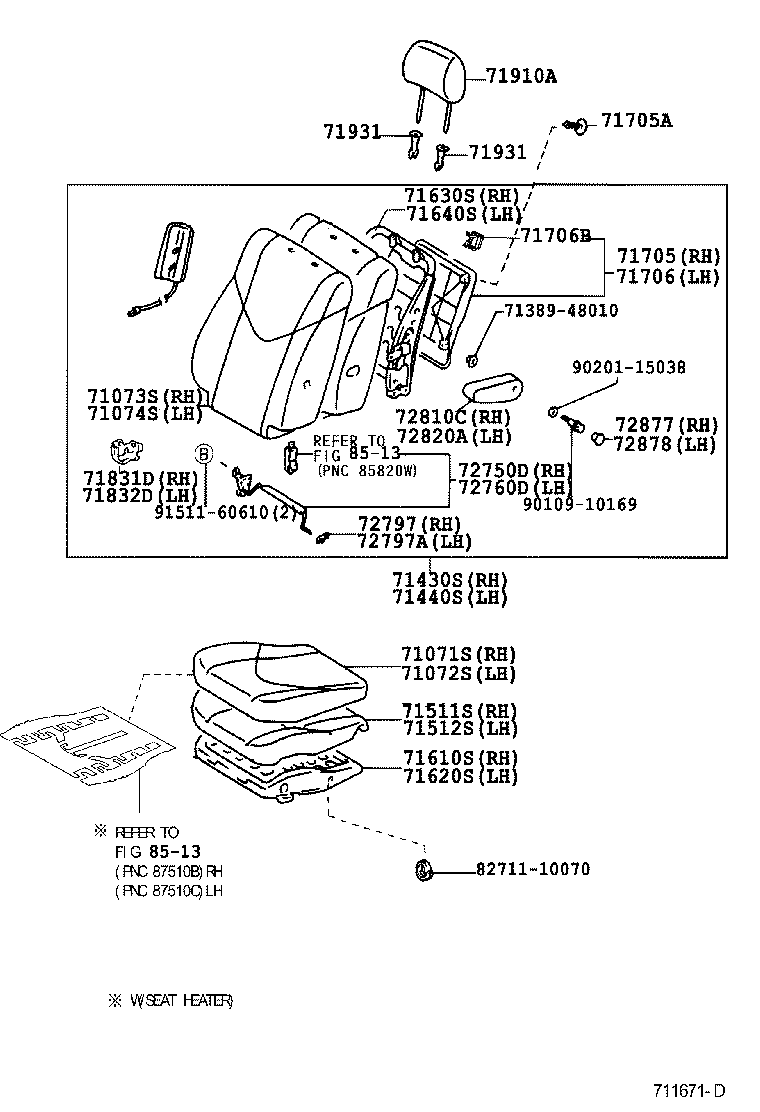

ILLUST NO. 1 OF 2(0007- )

RX300 | FRONT SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) ** Std Part 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71705A - CLIP(FOR FRONT SEAT BACK BOARD) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71706B - CLIP, FRONT SEAT BACK BOARD 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 72797 - SPACER, LUMBAR SUPPORT 72797A - SPACER, LUMBAR SUPPORT 72810C - ARMREST ASSY, FRONT SEAT, CENTER 72820A - ARMREST ASSY, SEAT, LH 72877 - COVER, SEAT ARMREST, RH 72878 - COVER, SEAT ARMREST, LH ** Std Part ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
