LEXUS IS250 350 2 D ALE20R-AEFSYW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

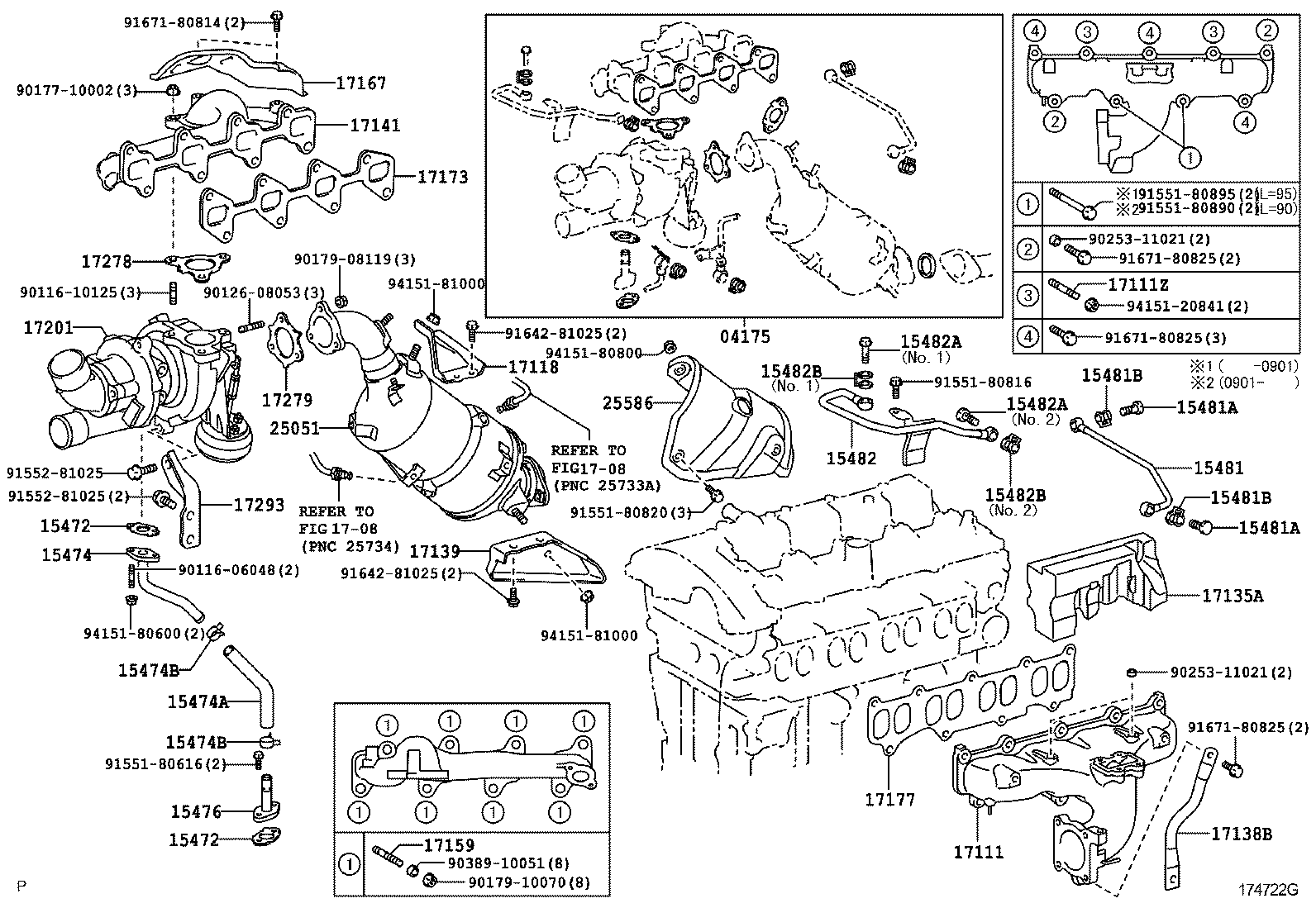

MANIFOLD

(0511-1008)2ADFHV

IS250 350 2 D | MANIFOLD 04175 - GASKET KIT, TURBOCHARGER 15472 - GASKET, TURBO OIL OUTLET, NO.1 15472 - GASKET, TURBO OIL OUTLET, NO.1 15474 - PIPE, TURBO OIL OUTLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15476 - PIPE, TURBO OIL OUTLET, NO.2 15481 - PIPE, TURBO OIL, NO.1 15481A - BOLT, UNION, NO.1 15481A - BOLT, UNION, NO.1 15481B - GASKET(FOR UNION BOLT NO.1) 15481B - GASKET(FOR UNION BOLT NO.1) 15482 - PIPE, TURBO OIL, NO.2 15482A - BOLT, UNION, NO.2 15482A - BOLT, UNION, NO.2 15482B - GASKET(FOR UNION BOLT NO.2) 15482B - GASKET(FOR UNION BOLT NO.2) ** Refer Fig ** Refer Fig 17111 - MANIFOLD, INTAKE 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17118 - STAY, MANIFOLD 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 17138B - STAY, INTAKE MANIFOLD 17139 - STAY, MANIFOLD, NO.2 17141 - MANIFOLD, EXHAUST 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17201 - TURBOCHARGER SUB-ASSY 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17293 - STAY, TURBOCHARGER 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
