LEXUS RX300 330 350 GSU35L-AWAGKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

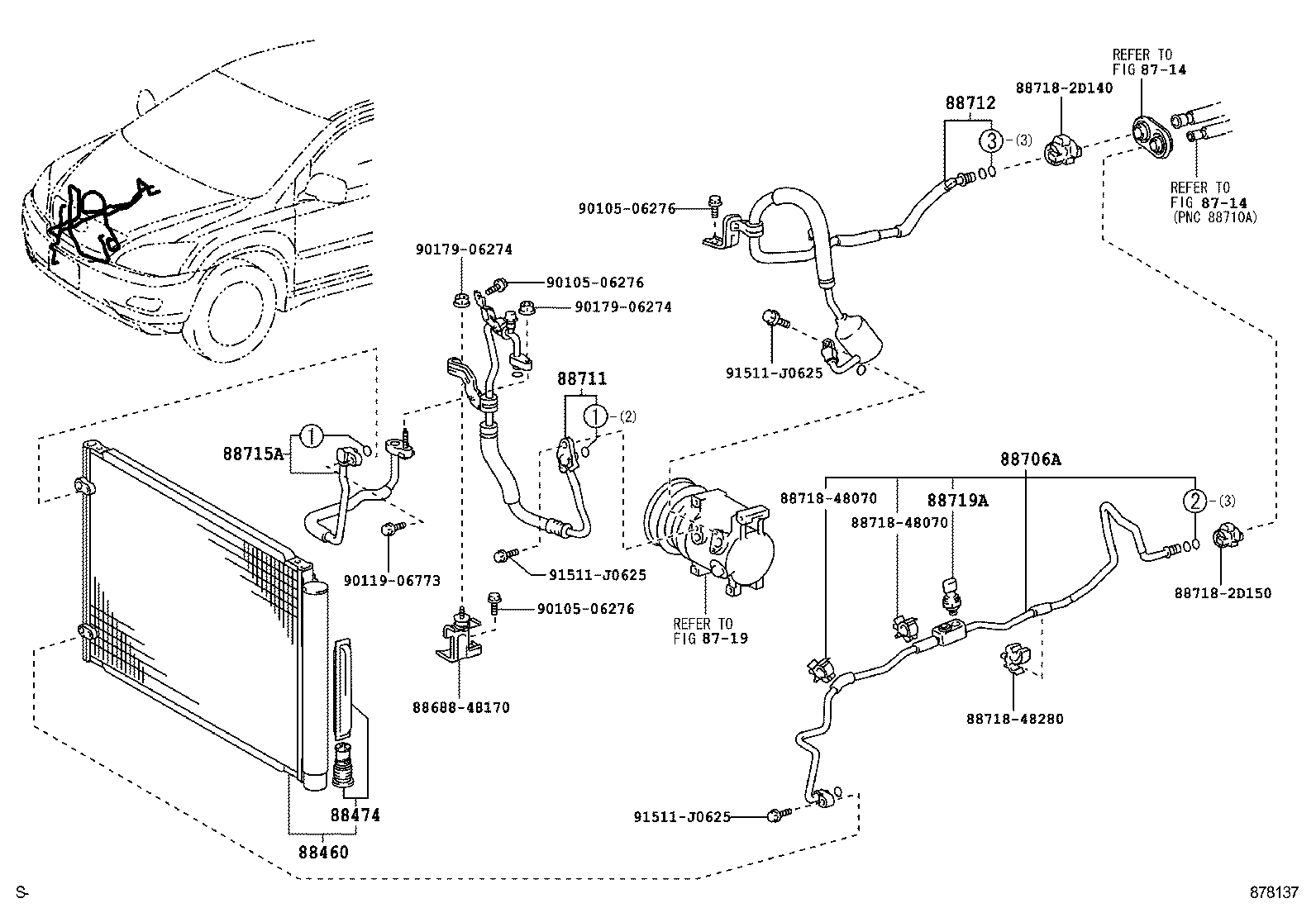

ILLUST NO. 1 OF 2(0601- )GCC

RX300 330 350 | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER ** Std Part 88706A - TUBE SUB-ASSY, LIQUID, A 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
