LEXUS LS460 460L USF40L-AEZGKW / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BRAKE MASTER CYLINDER

(0608- )LHD

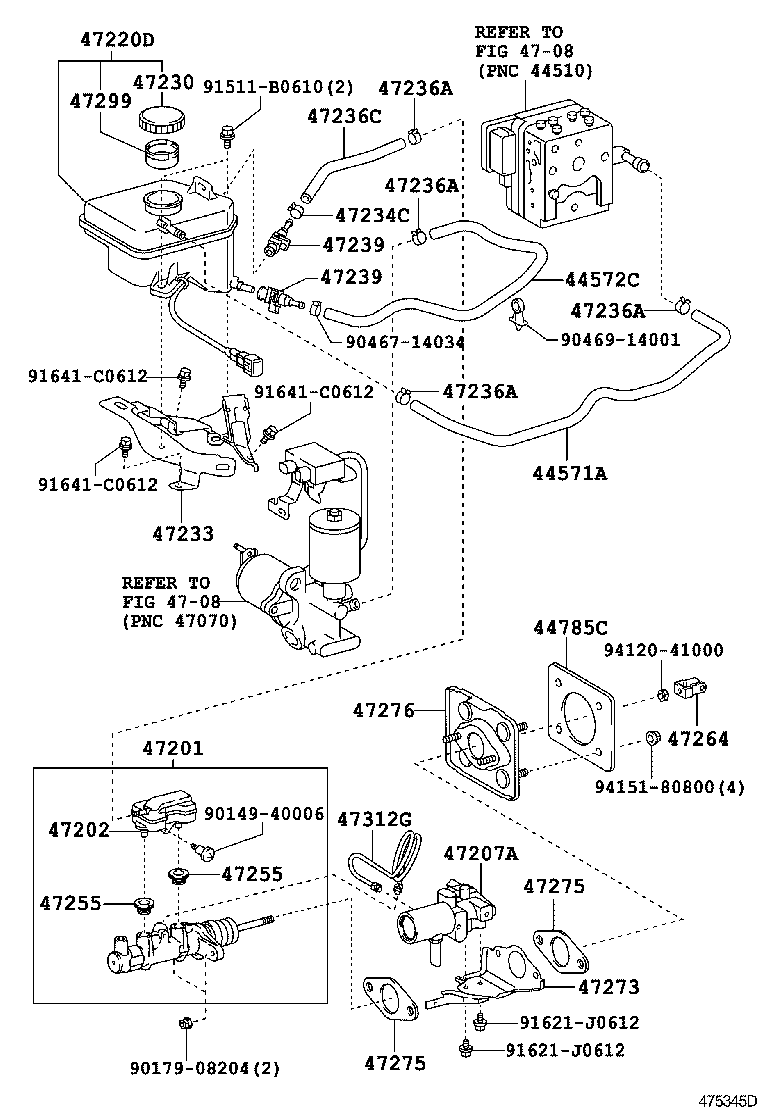

LS460 460L | BRAKE MASTER CYLINDER 44571A - HOSE, BRAKE ACTUATOR, NO.1 44572C - HOSE, BRAKE ACTUATOR, NO.2 44785C - GASKET, BRAKE BOOSTER ** Refer Fig ** Refer Fig 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47236A - CLIP(FOR RESERVOIR TUBE) 47236A - CLIP(FOR RESERVOIR TUBE) 47236A - CLIP(FOR RESERVOIR TUBE) 47236A - CLIP(FOR RESERVOIR TUBE) 47236C - HOSE, RESERVOIR TUBE 47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR 47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47273 - BRACKET, BRAKE STROKE SIMULATOR 47275 - GASKET, BRAKE MASTER CYLINDER 47275 - GASKET, BRAKE MASTER CYLINDER 47276 - BRACKET, BRAKE MASTER CYLINDER 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR 47312G - TUBE, BRAKE STROKE SIMULATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
