LEXUS LS460 460L USF40L-AEZGKW / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

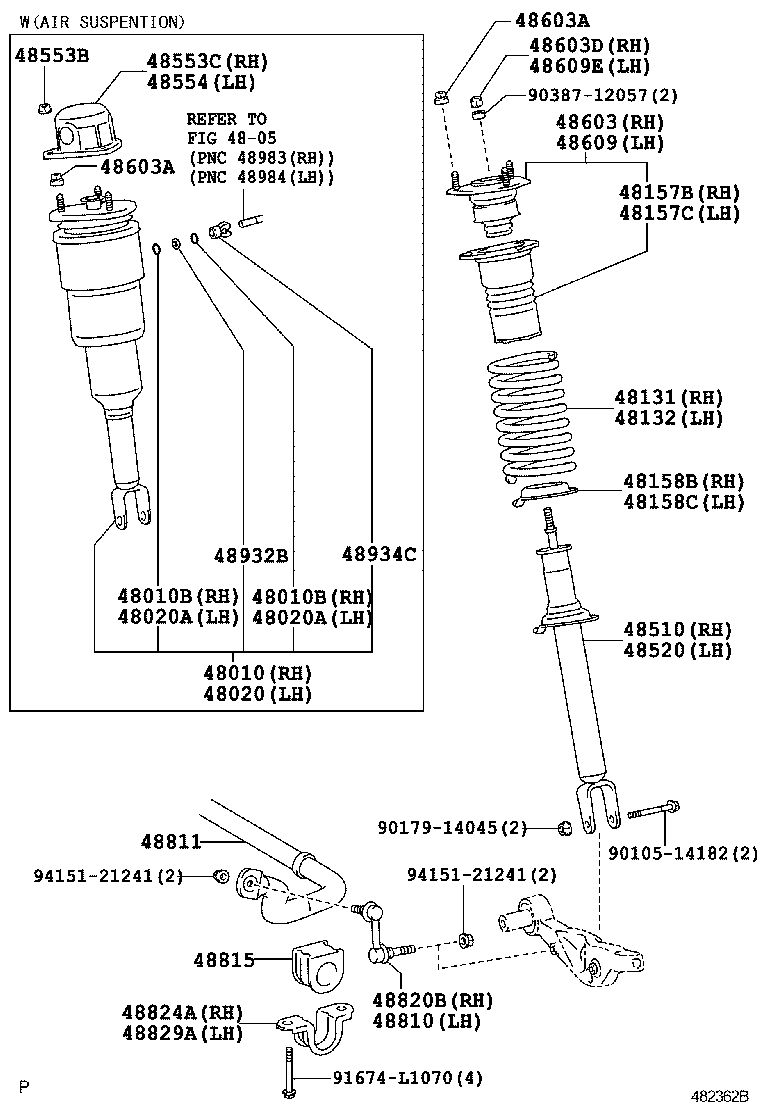

FRONT SPRING SHOCK ABSORBER

(0608- )USF40,41

LS460 460L | FRONT SPRING SHOCK ABSORBER 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER 48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH) 48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH) 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER 48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH) 48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH) ** Refer Fig 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) 48553C - CAP, FRONT SHOCK ABSORBER, RH 48554 - CAP, FRONT SHOCK ABSORBER, LH 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH 48932B - PLATE, HEIGHT CONTROL TUBE 48934C - CONNECTOR, HEIGHT CONTROL TUBE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
