LEXUS LS460 460L USF40L-AEZGKW - TOOL-ENGINE-FUEL - TIMING GEAR COVER REAR END PLATE | Japan Parts EU

LEXUS LS460 460L USF40L-AEZGKW / TOOL-ENGINE-FUEL / TIMING GEAR COVER REAR END PLATE

Toyota Land Cruiser genuine parts

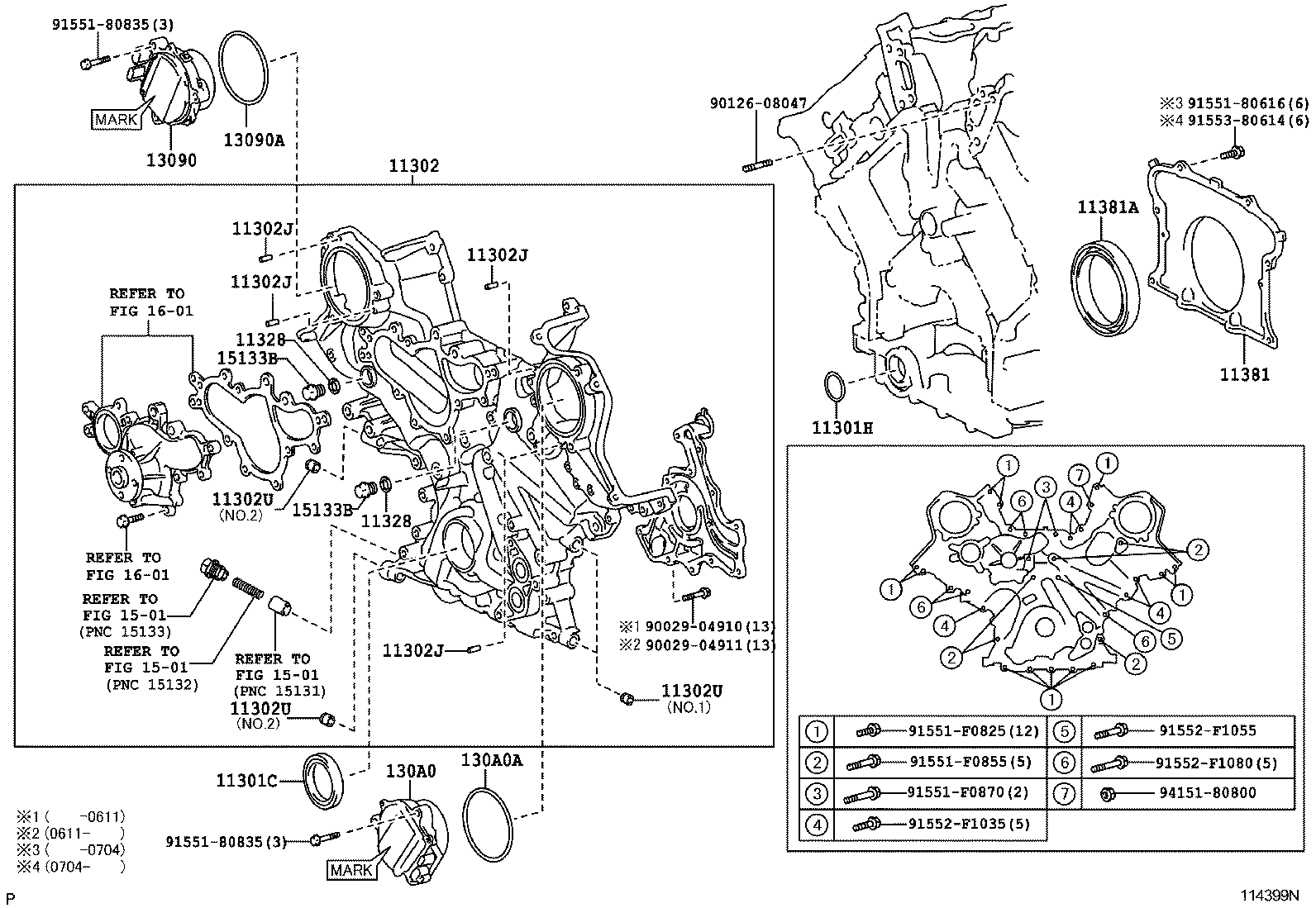

TIMING GEAR COVER REAR END PLATE

(0608- )

 LS460 460L |  TIMING GEAR COVER REAR END PLATE 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) 11301H - RING, O(FOR TIMING GEAR CASE, LOWER) 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT 11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER) 11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER) 11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER) 11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER) 11302U - PIN, RING 11302U - PIN, RING 11302U - PIN, RING 11328 - GASKET, TIMING GEAR OR CHAIN COVER 11328 - GASKET, TIMING GEAR OR CHAIN COVER 11381 - RETAINER, ENGINE REAR OIL SEAL 11381A - SEAL, ENGINE REAR OIL 13090 - MOTOR ASSY, CAM TIMING CONTROL W/EDU, RH 13090A - RING, O(FOR CAM TIMING CONTROL MOTOR RH) 130A0 - MOTOR ASSY, CAM TIMING CONTROL W/EDU, LH 130A0A - RING, O(FOR CAM TIMING CONTROL MOTOR LH) ** Refer Fig ** Refer Fig ** Refer Fig 15133B - PLUG, OIL PUMP RELIEF VALVE 15133B - PLUG, OIL PUMP RELIEF VALVE ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
