LEXUS LS460 460L USF40L-AEZGKW - TOOL-ENGINE-FUEL - VENTILATION HOSE | Japan Parts EU

LEXUS LS460 460L USF40L-AEZGKW / TOOL-ENGINE-FUEL / VENTILATION HOSE

Toyota Land Cruiser genuine parts

VENTILATION HOSE

(0608- )

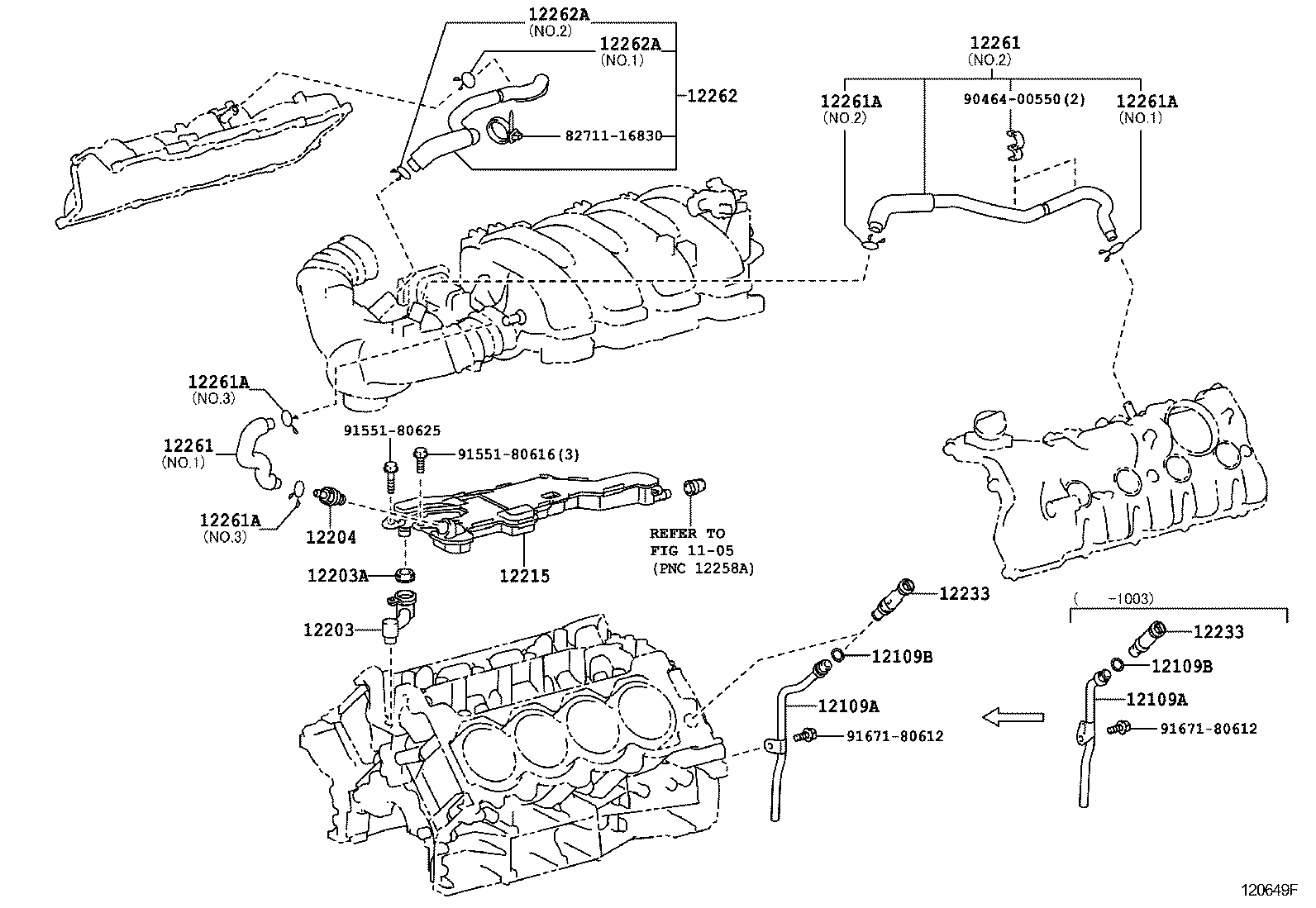

 LS460 460L |  VENTILATION HOSE ** Refer Fig 12109A - PIPE SUB-ASSY, OIL DRAIN 12109A - PIPE SUB-ASSY, OIL DRAIN 12109B - RING, O(FOR OIL DRAIN PIPE) 12109B - RING, O(FOR OIL DRAIN PIPE) 12203 - PIPE SUB-ASSY, VENTILATION 12203A - GASKET(FOR VENTILATION PIPE) 12204 - VALVE SUB-ASSY, VENTILATION 12215 - SEPARATOR, CASE 12233 - CONNECTOR, VENTILATION NO.1 12233 - CONNECTOR, VENTILATION NO.1 12261 - HOSE, VENTILATION 12261 - HOSE, VENTILATION 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12262 - HOSE, VENTILATION, NO.2 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
