LEXUS LS460 460L USF40L-AEZGKW / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

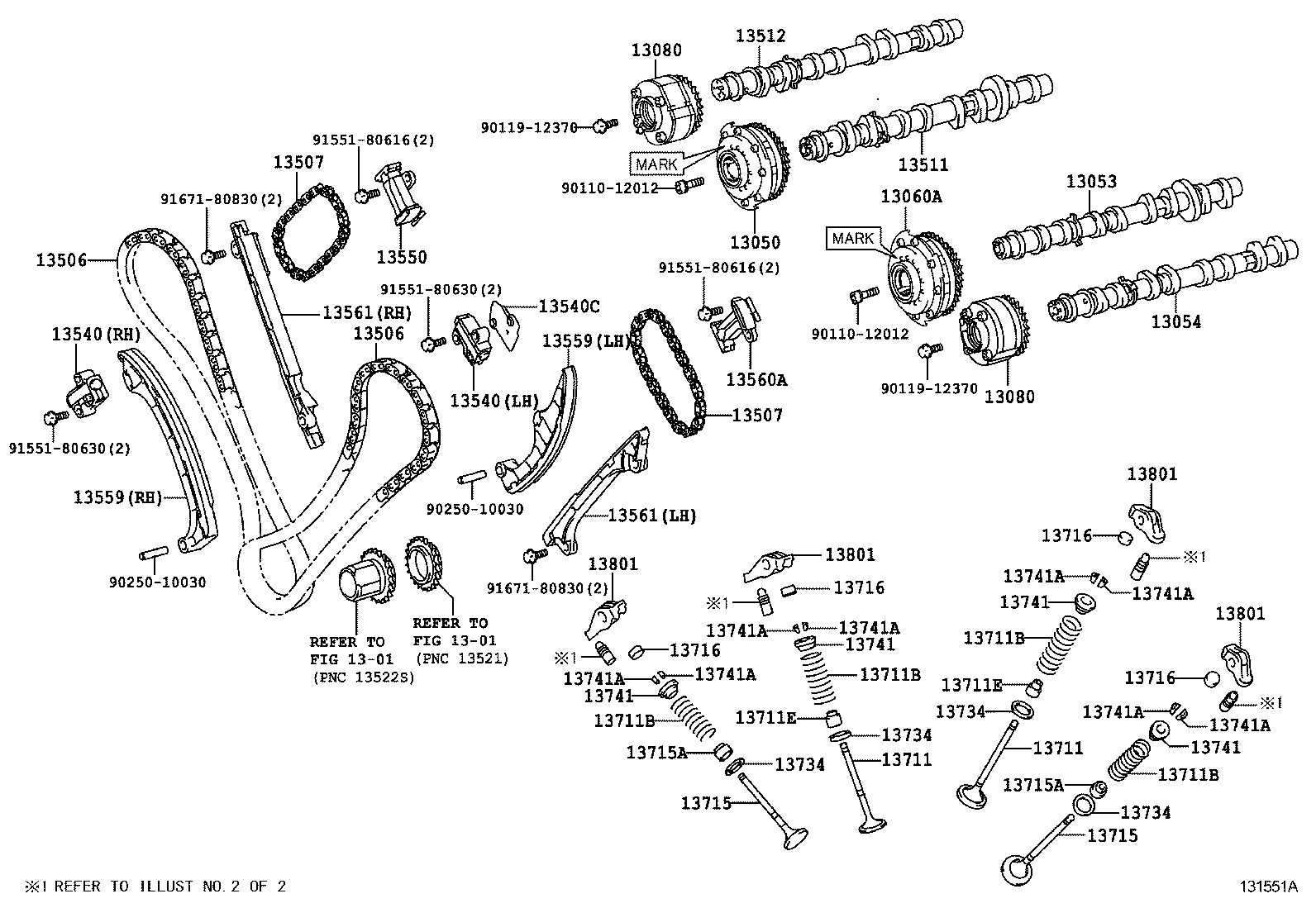

CAMSHAFT VALVE

ILLUST NO. 1 OF 2(0608- )

 LS460 460L |  CAMSHAFT VALVE ** Refer Fig ** Refer Fig 13050 - GEAR ASSY, CAMSHAFT TIMING 13053 - CAMSHAFT SUB-ASSY, NO.3 13054 - CAMSHAFT SUB-ASSY, NO.4 13060A - GEAR ASSY, CAMSHAFT TIMING, LH 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH 13506 - CHAIN SUB-ASSY 13506 - CHAIN SUB-ASSY 13507 - CHAIN SUB-ASSY, NO.2 13507 - CHAIN SUB-ASSY, NO.2 13511 - CAMSHAFT 13512 - CAMSHAFT, NO.2 13540 - TENSIONER ASSY, CHAIN, NO.1 13540 - TENSIONER ASSY, CHAIN, NO.1 13540C - GASKET(FOR CHAIN TENSIONER) 13550 - TENSIONER ASSY, CHAIN, NO.2 13559 - SLIPPER, CHAIN TENSIONER 13559 - SLIPPER, CHAIN TENSIONER 13560A - TENSIONER ASSY, CHAIN, NO.3 13561 - DAMPER, CHAIN VIBRATION, NO.1 13561 - DAMPER, CHAIN VIBRATION, NO.1 13711 - VALVE, INTAKE 13711 - VALVE, INTAKE 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13711E - SEAL, INTAKE VALVE STEM OIL 13711E - SEAL, INTAKE VALVE STEM OIL 13715 - VALVE, EXHAUST 13715 - VALVE, EXHAUST 13715A - SEAL, EXHAUST VALVE STEM OIL 13715A - SEAL, EXHAUST VALVE STEM OIL 13716 - CAP, VALVE STEM 13716 - CAP, VALVE STEM 13716 - CAP, VALVE STEM 13716 - CAP, VALVE STEM 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
