LEXUS LX570 URJ201L-GNTGKW / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

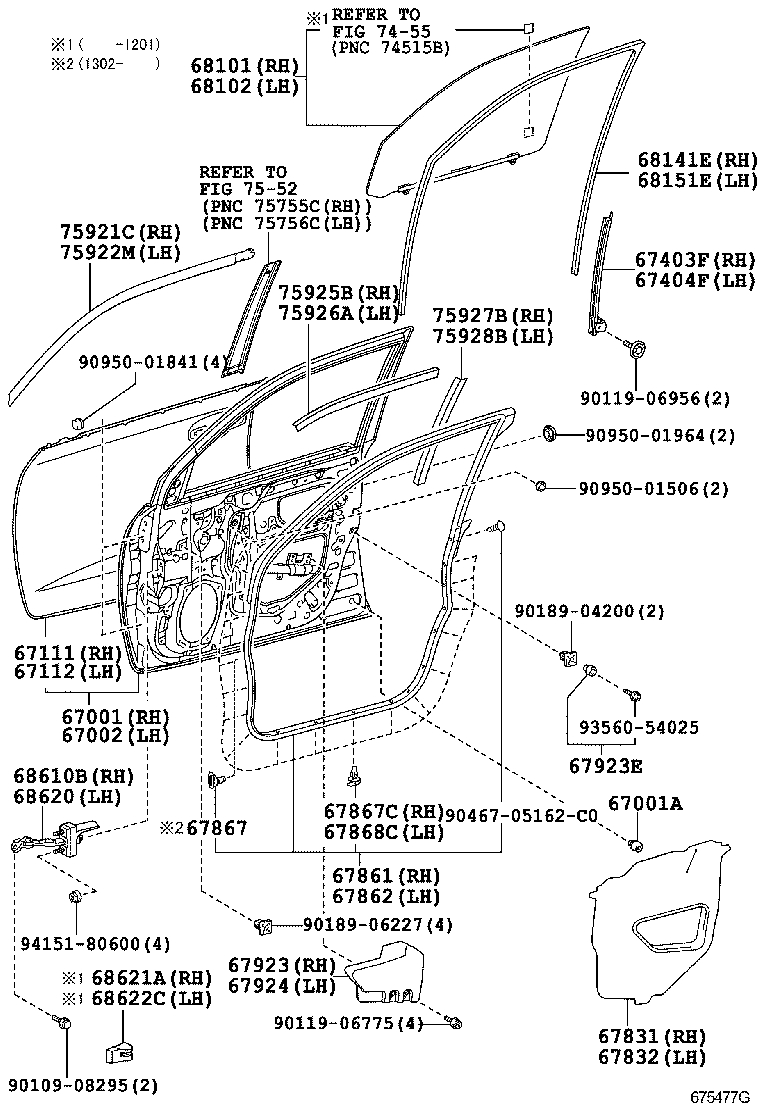

FRONT DOOR PANEL GLASS

DOOR PANEL ILLUST NO. 1 OF 2(0711- )

 LX570 |  FRONT DOOR PANEL GLASS 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67111 - PANEL, FRONT DOOR, OUTER RH 67112 - PANEL, FRONT DOOR, OUTER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867 - CLIP, DOOR WEATHERSTRIP 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141E - RUN, FRONT DOOR GLASS, RH 68151E - RUN, FRONT DOOR GLASS, LH 68610B - CHECK ASSY, FRONT DOOR, RH 68620 - CHECK ASSY, FRONT DOOR, LH 68621A - COVER, FRONT DOOR CHECK, RH 68622C - COVER, FRONT DOOR CHECK, LH ** Refer Fig ** Refer Fig 75921C - TAPE, BLACK OUT, NO.1 RH 75922M - TAPE, BLACK OUT, NO.1 LH 75925B - TAPE, BLACK OUT, NO.3 RH 75926A - TAPE, BLACK OUT, NO.3 LH 75927B - TAPE, BLACK OUT, NO.4 RH 75928B - TAPE, BLACK OUT, NO.4 LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
