LEXUS IS250 300H GSE30R-AETLHW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

WIRING CLAMP

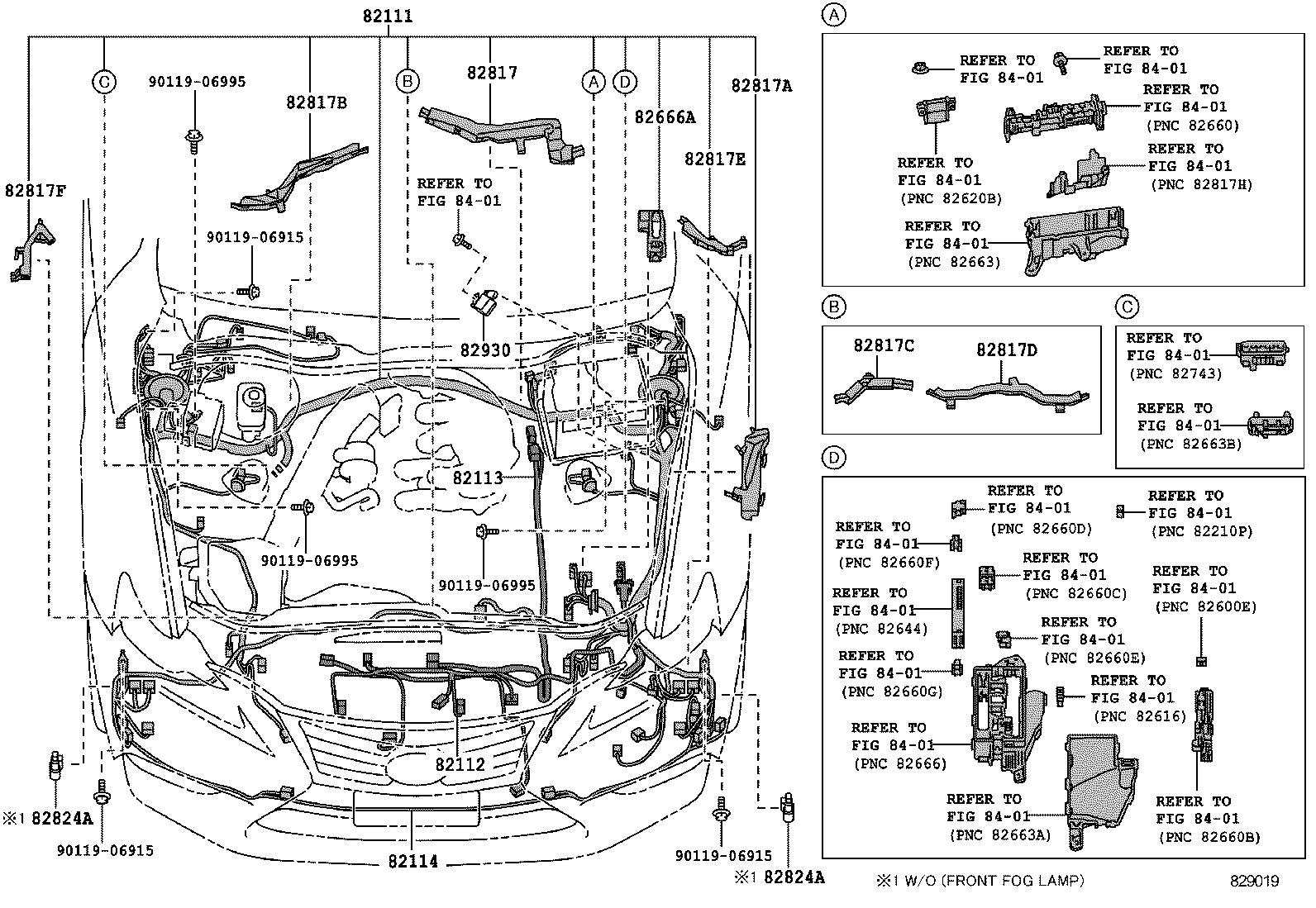

ENGINE ROOM ILLUST NO. 1 OF11(1304- )GSE30..RHD

IS250 300H | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 82114 - WIRE, ENGINE ROOM, NO.4 82666A - HOLDER, CONNECTOR NO.2 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82824A - CONNECTOR, WIRING HARNESS 82824A - CONNECTOR, WIRING HARNESS 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
