LEXUS IS250C GSE20L-AKTLHW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

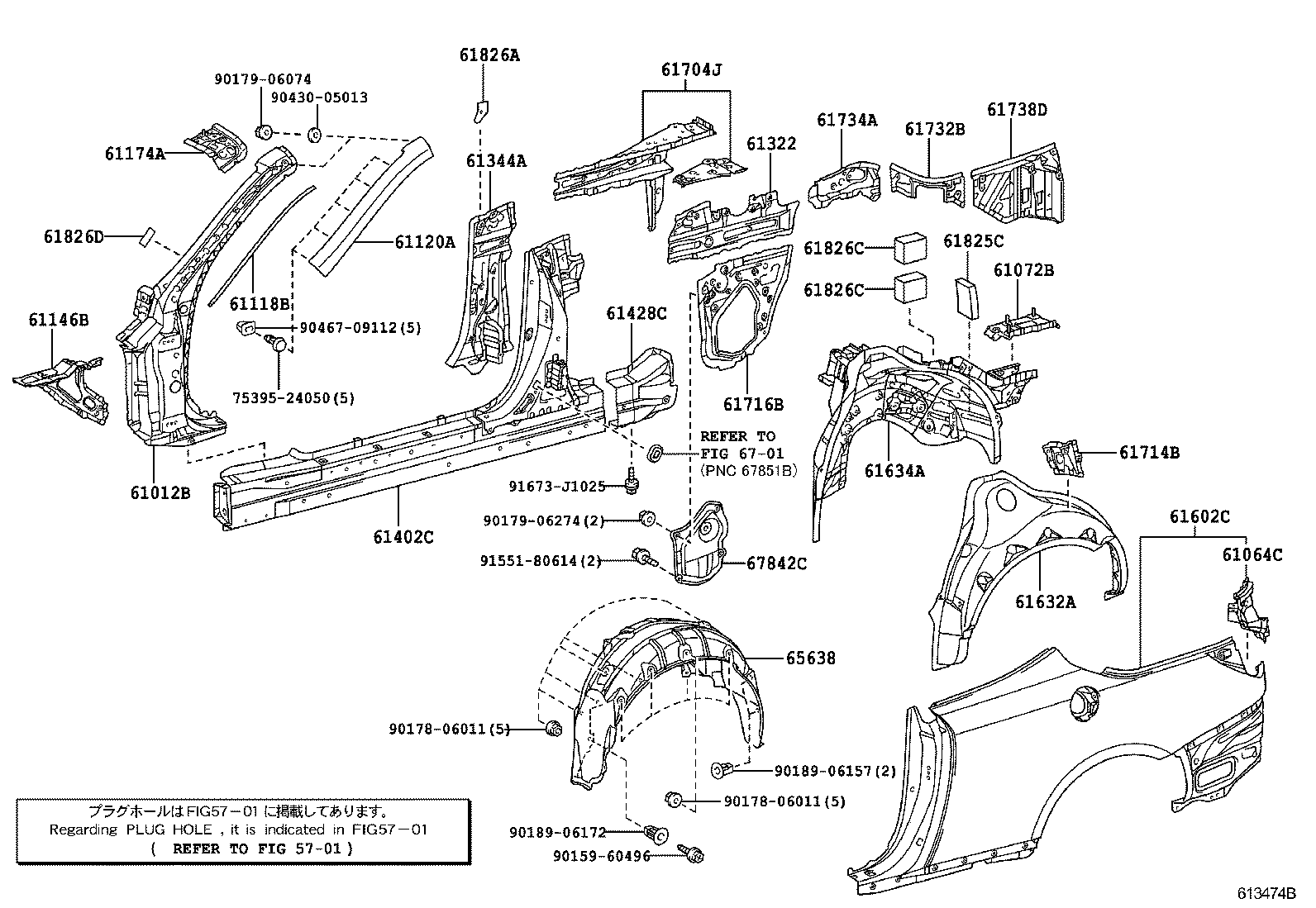

SIDE MEMBER

LH SIDE ILLUST NO. 2 OF 2(0904- )

IS250C | SIDE MEMBER ** Refer Fig 61012B - PANEL SUB-ASSY, SIDE, OUTER LH 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH 61072B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH 61118B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, RH 61120A - PILLAR ASSY, FRONT BODY, OUTER LH 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH 61322 - REINFORCEMENT, CENTER BODY PILLAR, UPPER LH 61344A - PILLAR, CENTER BODY, INNER LH 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH 61602C - PANEL SUB-ASSY, QUARTER, LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH 61714B - REINFORCE, ROOF SIDE, OUTER LH 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH 61732B - PANEL, ROOF SIDE, INNER LH 61734A - PANEL, ROOF SIDE, INNER FRONT LH 61738D - REINFORCEMENT, ROOF SIDE, INNER LH 61825C - PAD, NOISE SHUTTER, NO.2 61826A - PLATE, NOISE CONTROL, NO.3 61826C - PAD, NOISE SHUTTER, NO.3 61826C - PAD, NOISE SHUTTER, NO.3 61826D - PLATE, NOISE CONTROL, NO.3 65638 - LINER, REAR WHEEL HOUSE, LH ** Refer Fig 67842C - COVER, QUARTER SERVICE HOLE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
