LEXUS ES300 MCV20L-BTPGKV / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

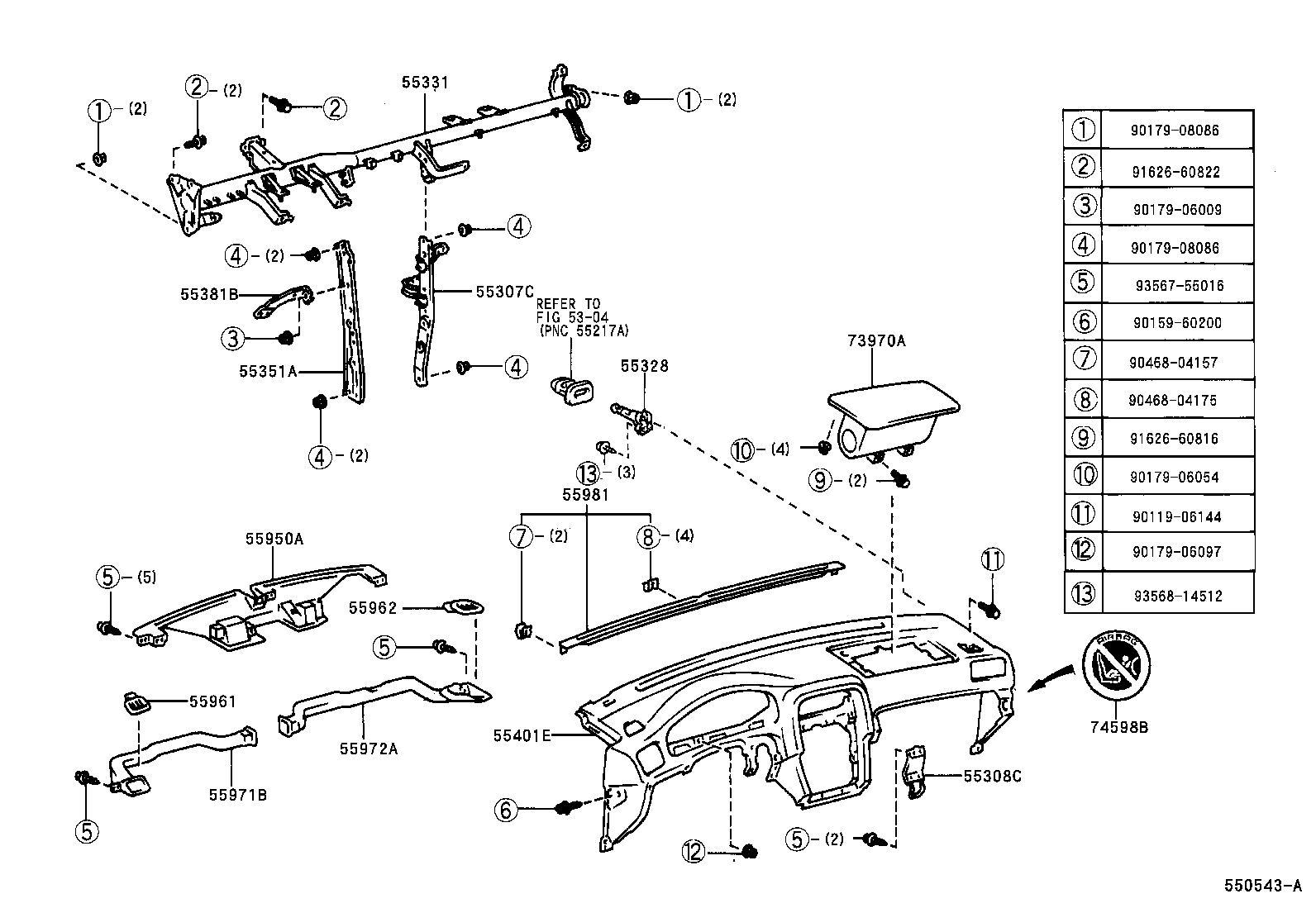

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(9810- )GCC

ES300 | INSTRUMENT PANEL GLOVE COMPARTMENT 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER 55328 - PIN, INSTRUMENT PANEL, NO.1 55331 - REINFORCEMENT, INSTRUMENT PANEL 55351A - BRACE, INSTRUMENT PANEL TO FLOOR 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55950A - NOZZLE ASSY, DEFROSTER 55961 - NOZZLE, SIDE DEFROSTER, NO.1 55962 - NOZZLE, SIDE DEFROSTER, NO.2 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER 74598B - LABEL, PASSENGER AIR BAG CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
