LEXUS ES300 MCV20L-BTPGKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

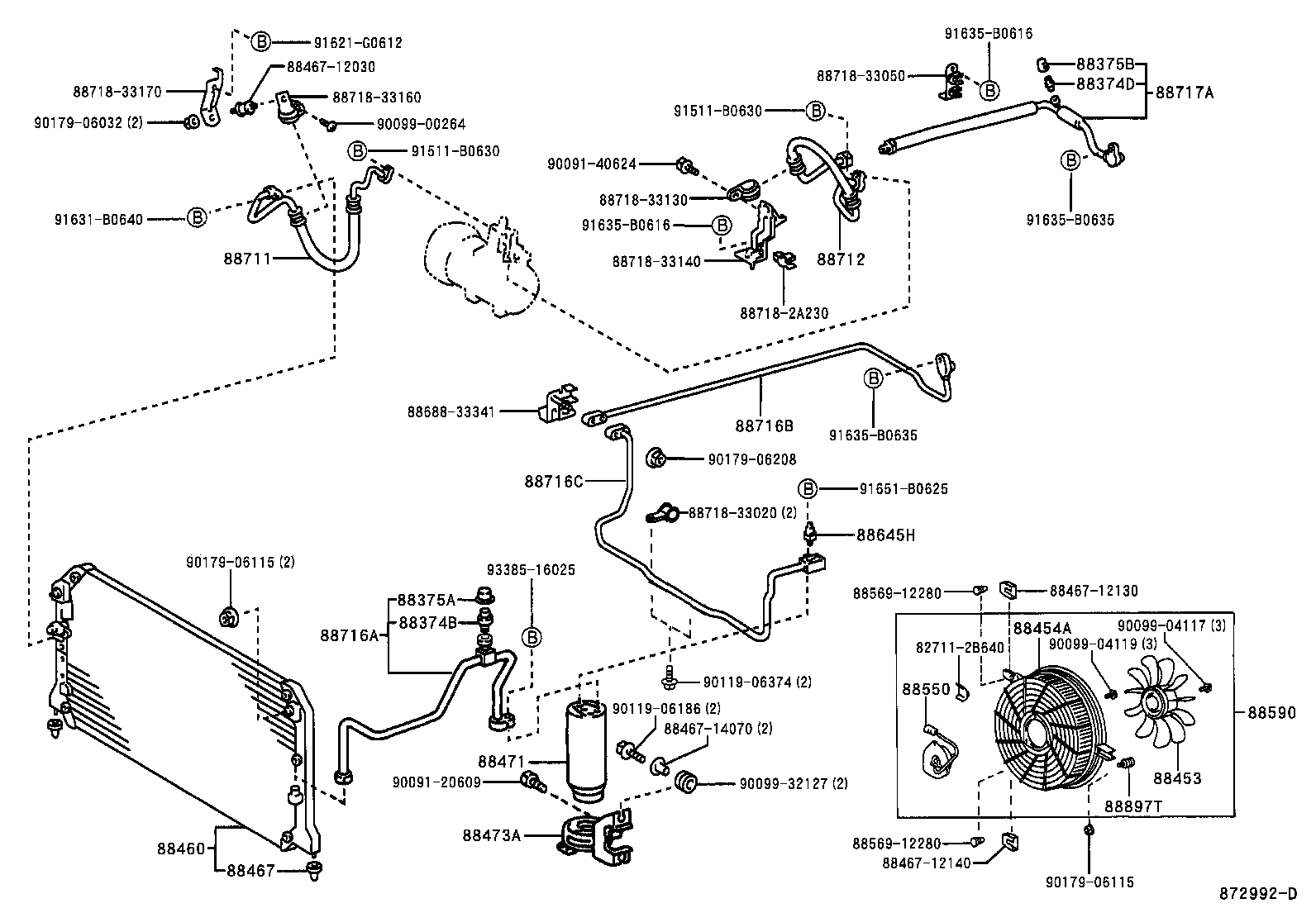

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 1 OF 2(9810- )GCC

ES300 | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88374B - VALVE, SERVICE, NO.1 88374D - VALVE, SERVICE NO.3 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88897T - GROMMET, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
