LEXUS ES300 MCV20L-BTPGKV / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(9810- )GCC

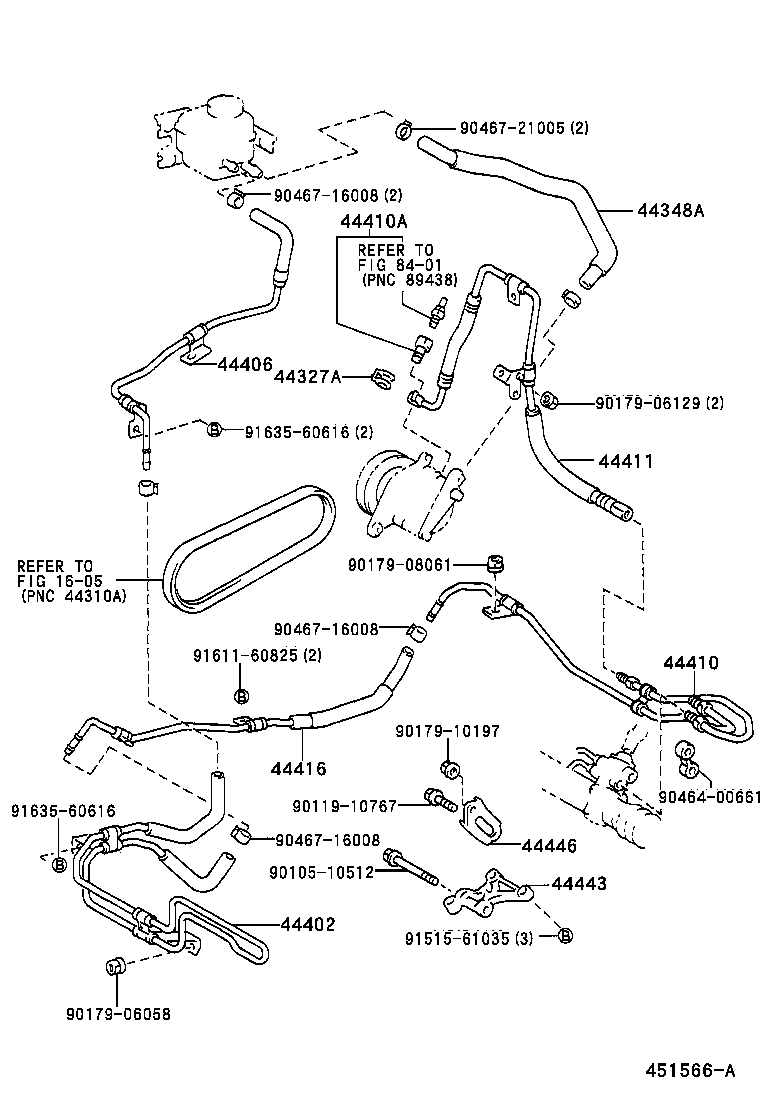

ES300 | POWER STEERING TUBE ** Refer Fig 44327A - GASKET, PRESSURE PORT, NO.1 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44406 - TUBE SUB-ASSY, RETURN 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
