LEXUS ES300 MCV20R-BTPGKQ / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

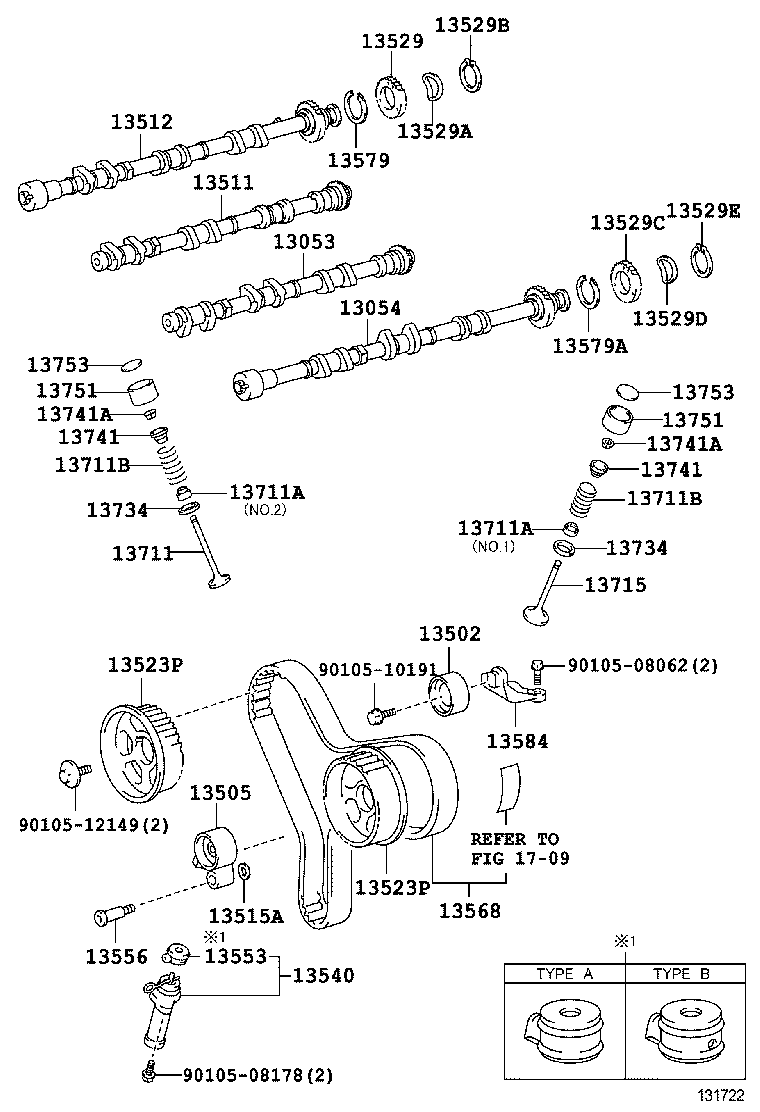

CAMSHAFT VALVE

(9608- )

ES300 | CAMSHAFT VALVE 13053 - CAMSHAFT SUB-ASSY, NO.3 13054 - CAMSHAFT SUB-ASSY, NO.4 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 13511 - CAMSHAFT 13512 - CAMSHAFT, NO.2 13515A - WASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR) 13523P - PULLEY, CAMSHAFT TIMING 13523P - PULLEY, CAMSHAFT TIMING 13529 - GEAR, CAMSHAFT SUB 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) 13529C - GEAR, CAMSHAFT SUB, NO.3 13529D - WASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3) 13529E - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3) 13540 - TENSIONER ASSY, CHAIN, NO.1 13553 - COVER, CHAIN TENSIONER DUST 13556 - SHAFT, TIMING BELT IDLER 13568 - BELT, TIMING 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT 13579A - WASHER, CAMSHAFT TIMING GEAR BOLT, NO.3 13584 - BRACKET, TIMING BELT IDLER 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13715 - VALVE, EXHAUST 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13751 - LIFTER, VALVE 13751 - LIFTER, VALVE 13753 - SHIM, VALVE ADJUSTING 13753 - SHIM, VALVE ADJUSTING ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
