LEXUS LX470 UZJ100L-GNPGKV / POWERTRAIN-CHASSIS / TRANSFER LEVER SHIFT ROD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

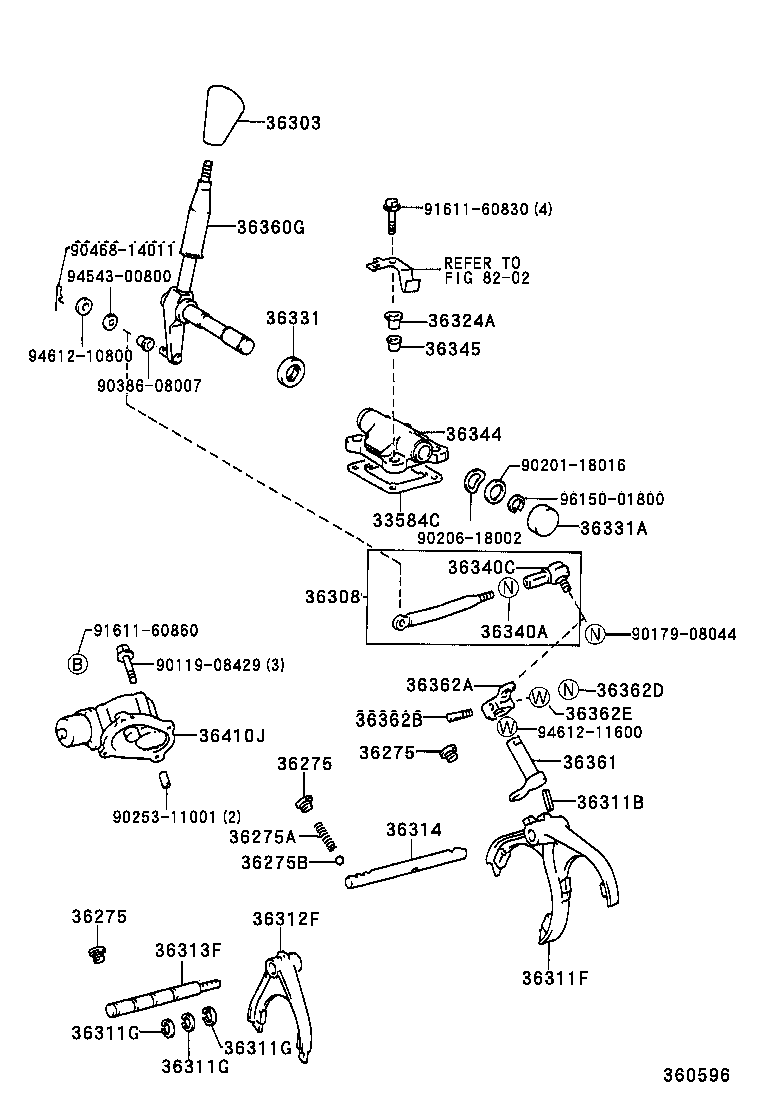

TRANSFER LEVER SHIFT ROD

(9801-9912)LHD

LX470 | TRANSFER LEVER SHIFT ROD 33584C - GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER 36275 - PLUG, SHIFT DETENT BALL SPRING 36275 - PLUG, SHIFT DETENT BALL SPRING 36275 - PLUG, SHIFT DETENT BALL SPRING 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 36275B - BALL, SHIFT DETENT 36303 - KNOB SUB-ASSY, SHIFT LEVER 36308 - ROD SUB-ASSY, HIGH & LOW SHIFT 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK 36324A - BUSH, TRANSFER SHIFT LEVER 36331 - BOOT, TRANSFER SHIFT LEVER 36331A - BOOT, TRANSFER SHIFT LEVER, NO.2 36340A - NUT (FOR HIGH AND LOW SHIFT ROD) 36340C - END ASSY, HIGH & LOW CONNECTING ROD 36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT 36361 - LEVER, TRANSFER SHIFT, INNER 36362A - LEVER, TRANSFER SHIFT, OUTER 36362B - PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER) 36362D - NUT (FOR TRANSFER SHIFT OUTER LEVER) 36362E - WASHER (FOR TRANSFER SHIFT OUTER LEVER) 36410J - ACTUATOR ASSY, TRANSFER SHIFT ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
