LEXUS GS300 430 JZS160L-BEAQFW / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

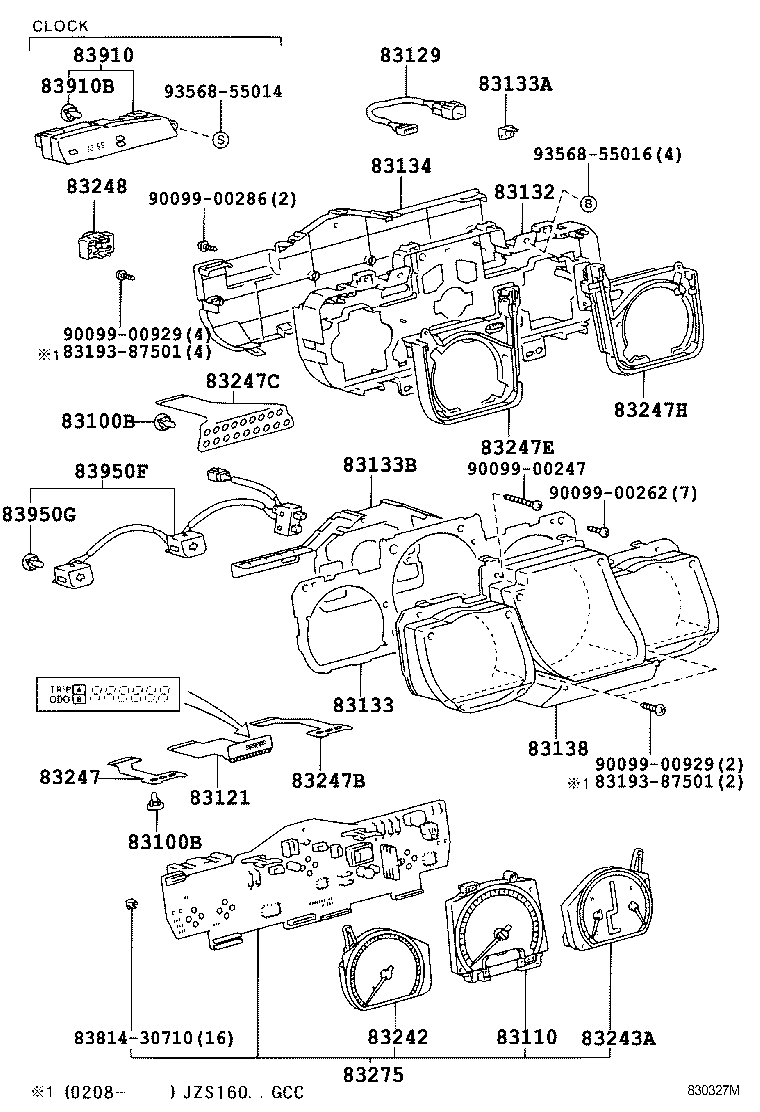

ILLUST NO. 1 OF 2(9708- )LHD

GS300 430 | METER 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83110 - SPEEDOMETER ASSY 83121 - COUNTER, TOTAL 83129 - WIRE, METER 83132 - CASE, COMBINATION METER 83133 - PLATE, COMBINATION METER, NO.1 83133A - PLATE, COMBINATION METER, NO.2 83133B - PLATE, COMBINATION METER, NO.3 83134 - COVER, COMBINATION METER, NO.1 83138 - GLASS, SPEEDOMETER ** Std Part ** Std Part 83242 - TACHOMETER ASSY, ENGINE 83243A - GAUGE SUB-ASSY, FUEL RECEIVER 83247 - PLATE, METER CIRCUIT 83247B - PLATE, METER CIRCUIT, NO.2 83247C - PLATE, MATER CIRCUIT, NO.3 83247E - PLATE, MATER CIRCUIT, NO.4 83247H - PLATE, METER CIRCUIT, NO.5 83248 - CHIME, SPEED WARNING 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 ** Std Part 83910 - CLOCK ASSY 83910B - BULB, CLOCK INDICATOR 83950F - LAMP ASSY, TELLTALE 83950G - BULB, TELLTALE LAMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
