LEXUS GS300 430 JZS160R-BEAQFW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

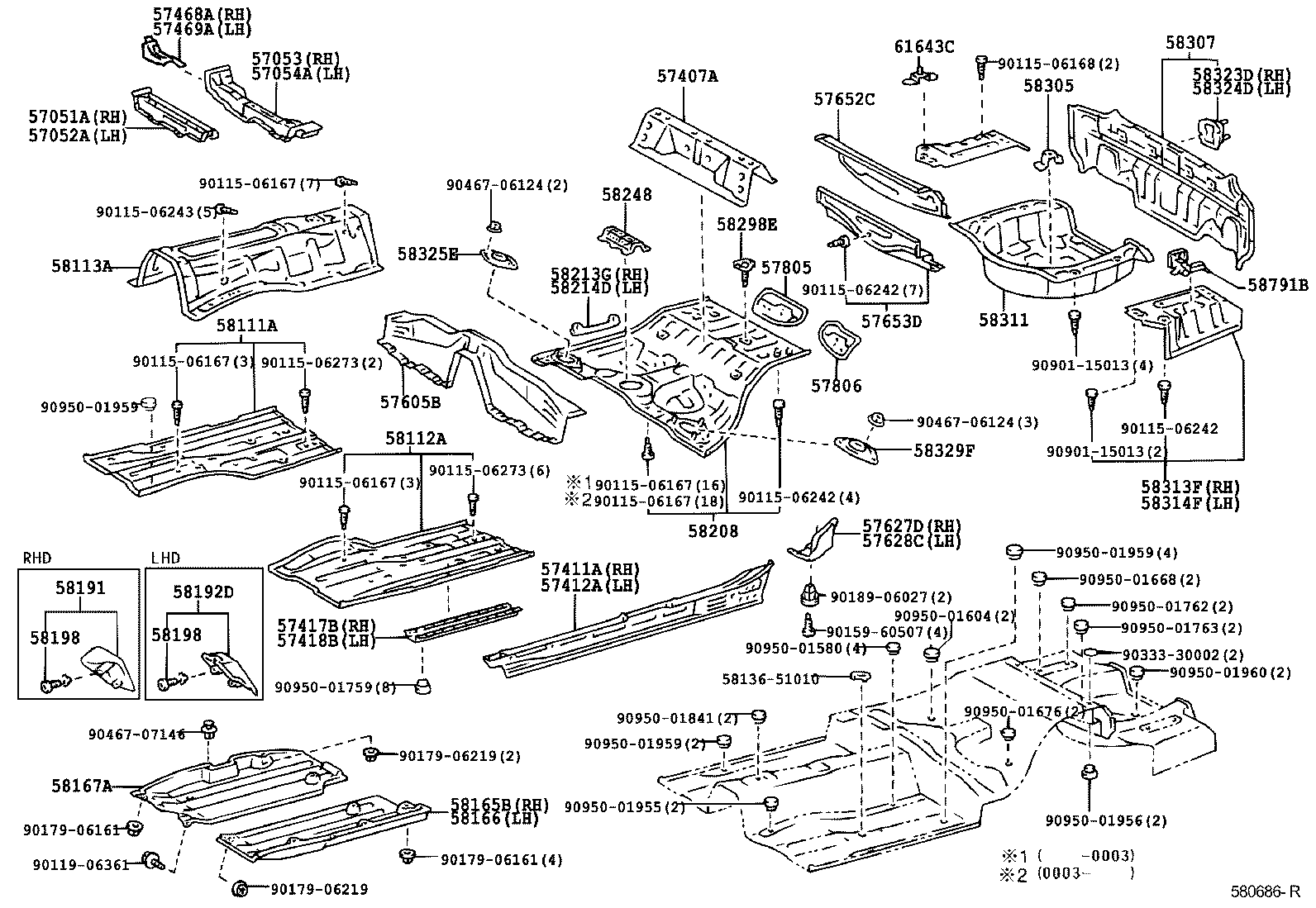

FLOOR PAN LOWER BACK PANEL

(9708- )

GS300 430 | FLOOR PAN LOWER BACK PANEL 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS 57411A - MEMBER, FLOOR SIDE, INNER RH 57412A - MEMBER, FLOOR SIDE, INNER LH 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57627D - COVER, REAR FLOOR SIDE MEMBER 57628C - COVER, REAR FLOOR SIDE MEMBER, LH 57652C - MEMBER, REAR FLOOR CROSS, NO.1 57653D - MEMBER, REAR FLOOR CROSS, NO.2 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH 58111A - PAN, FRONT FLOOR, RH 58112A - PANEL, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER ** Std Part 58165B - COVER, FRONT FLOOR, RH 58166 - COVER, FRONT FLOOR, LH 58167A - COVER, FRONT FLOOR, CENTER 58191 - FOOTREST, FRONT FLOOR 58192D - FOOTREST, FRONT FLOOR, LH 58198 - CLIP, FOOTREST 58198 - CLIP, FOOTREST 58208 - PAN, CENTER FLOOR 58213G - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH 58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH 58248 - REINFORCEMENT, REAR SEAT CUSHION LOCK 58298E - BRACKET, HOT AIR INTAKE, NO.1 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH 58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58791B - CARRIER, JACK 61643C - PATCH, QUARTER WHEEL HOUSE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
