LEXUS IS200 300 JCE10R-AWAVFW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

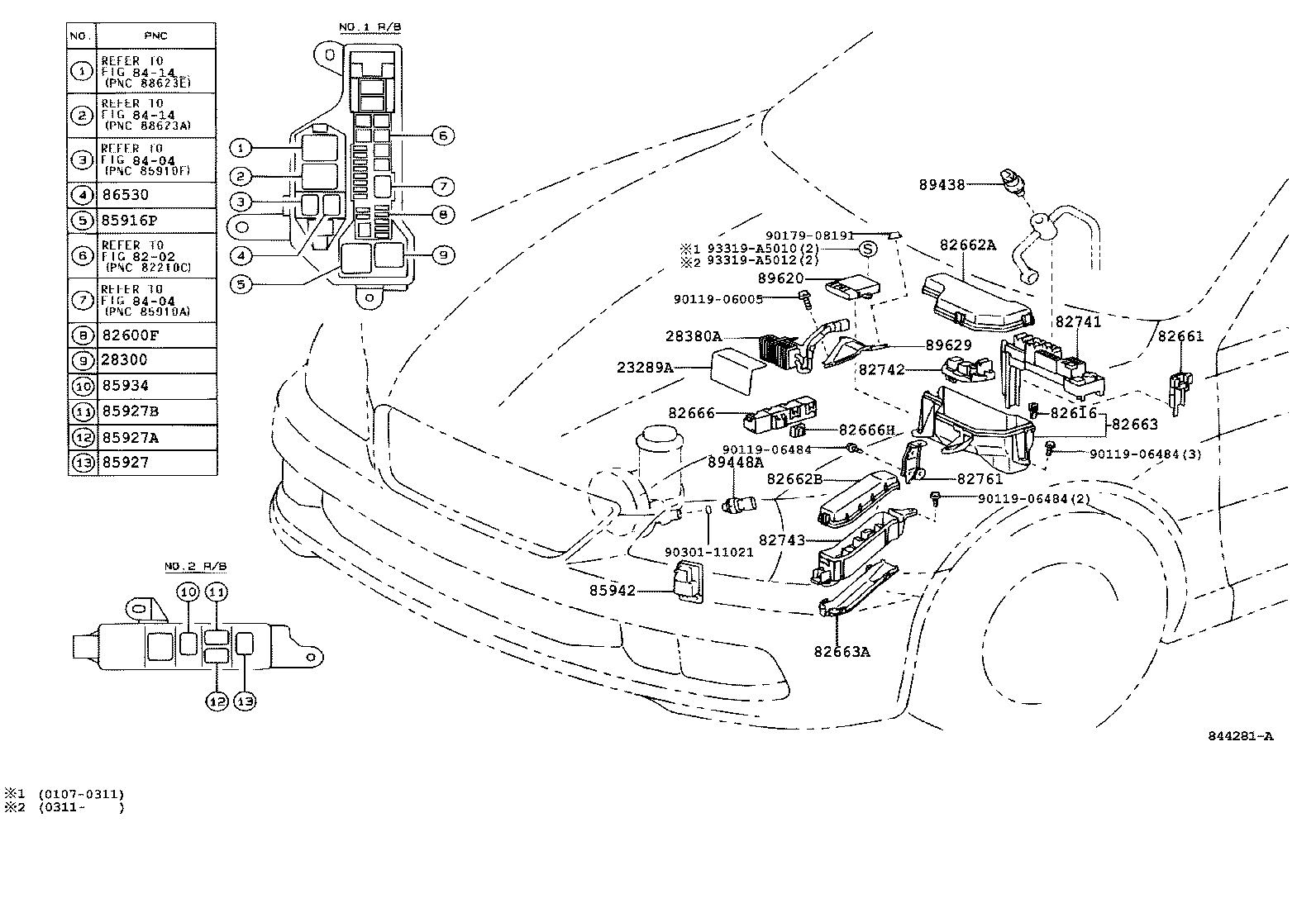

ENGINE ROOM ILLUST NO. 2 OF 6(9901- )RHD

IS200 300 | SWITCH RELAY COMPUTER 23289A - COVER, FUEL PUMP RESISTOR 28300 - RELAY ASSY, STARTER 28380A - RESISTER, FUEL PUMP ** Refer Fig 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82666 - HOLDER, CONNECTOR 82666H - HOLDER, CONNECTOR, NO.2 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82761 - BRACKET, RELAY BLOCK, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85934 - RELAY, MAGNET-CLUTCH 85942 - RELAY, HEADLAMP CLEANER CONTROL 86530 - RELAY ASSY, HORN 89438 - SWITCH, POWER STEERING OIL PRESSURE 89448A - SENSOR, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
