LEXUS IS200 300 JCE10R-AWAVFW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

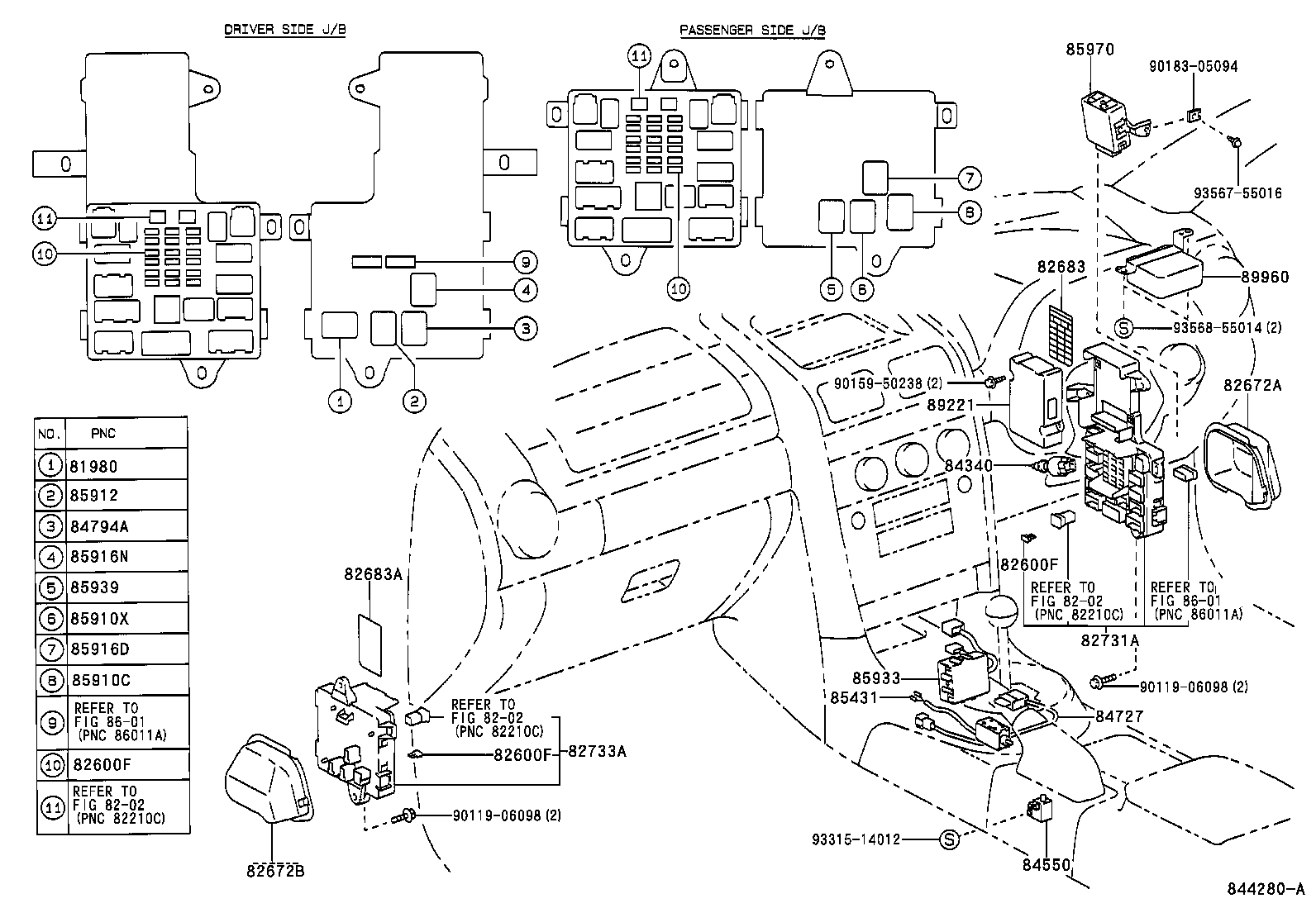

SWITCH RELAY COMPUTER

COWL ILLUST NO. 3 OF 6(9901- )RHD

 IS200 300 |  SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82672A - COVER, JUNCTION BLOCK 82672B - COVER, JUNCTION BLOCK 82683 - PLATE, FUSE BLOCK CAUTION 82683A - PLATE, FUSE BLOCK CAUTION 82731A - BLOCK, COWL SIDE JUNCTION, RH 82733A - BLOCK, COWL SIDE JUNCTION, LH 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 84727 - SWITCH, SHIFT LOCK CONTROL 84794A - RELAY, FR WIPER DEICER 85431 - SOLENOID, SHIFT LOCK 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910X - RELAY, HEATER MIRROR 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85933 - COMPUTER, SHIFT LOCK CONTROL 85939 - RELAY, POWER WINDOW 85970 - RELAY ASSY, DOOR OPENING ** Refer Fig ** Refer Fig 89221 - COMPUTER, MULTIPLEX NETWORK BODY 89960 - COMPUTER ASSY, HEADLAMP LEVELING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
