LEXUS LS430 UCF30R-AETGKQ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

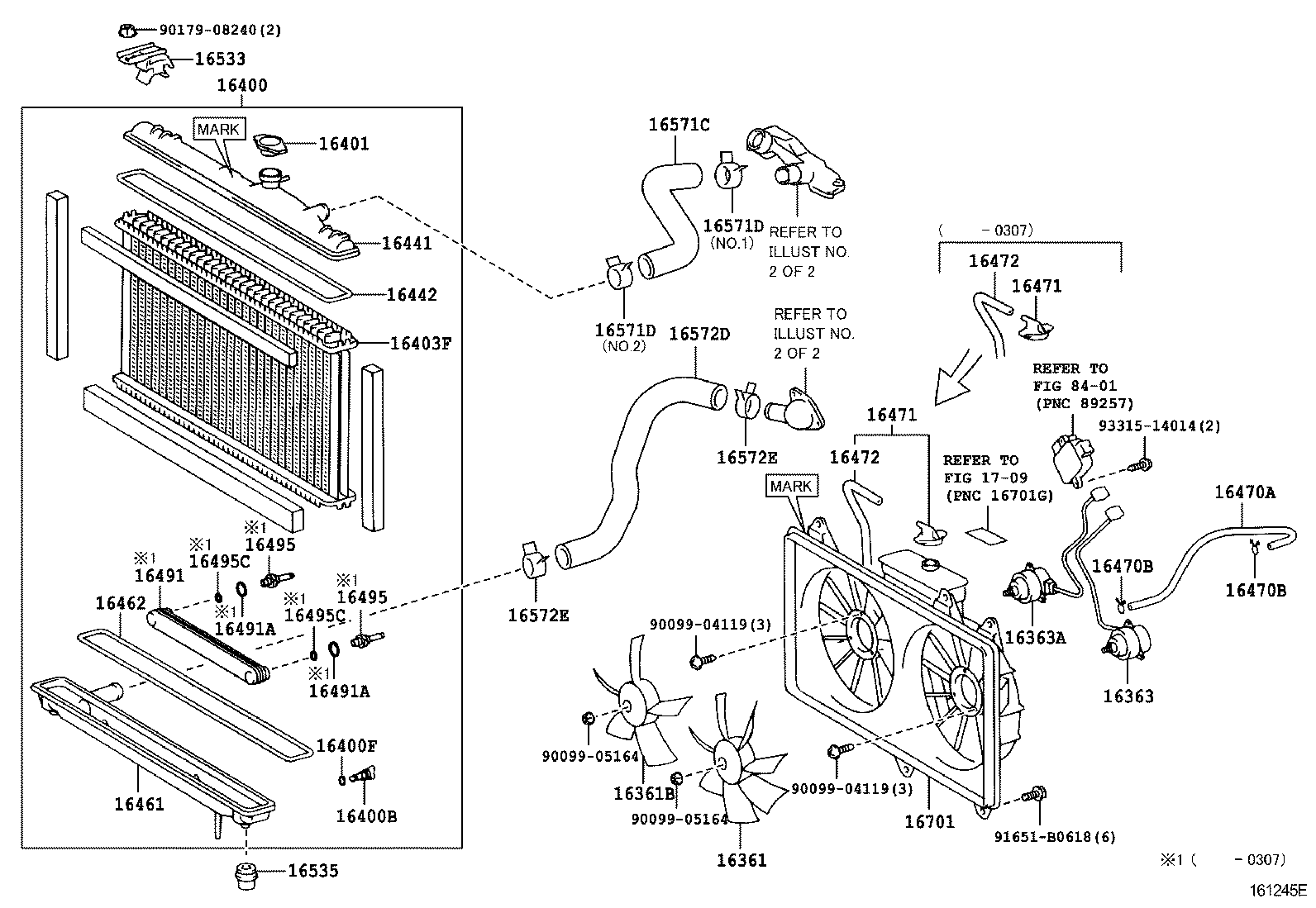

ILLUST NO. 1 OF 2(0008- )3UZFE..ARL

LS430 | RADIATOR WATER OUTLET 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16403F - CORE SUB-ASSY, RADIATOR 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16472 - HOSE, BREATHER 16491 - COOLER, OIL(FOR ATM) 16491A - RING, O(FOR ATM OIL COOLER) 16491A - RING, O(FOR ATM OIL COOLER) 16495 - NUT, FLARE(FOR ATM OIL COOLER) 16495 - NUT, FLARE(FOR ATM OIL COOLER) 16495C - RING, O(FOR FLANGE NUT) 16495C - RING, O(FOR FLANGE NUT) 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16701 - SHROUD SUB-ASSY, FAN ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
