LEXUS ES300 MCV30R-BEAGKQ / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

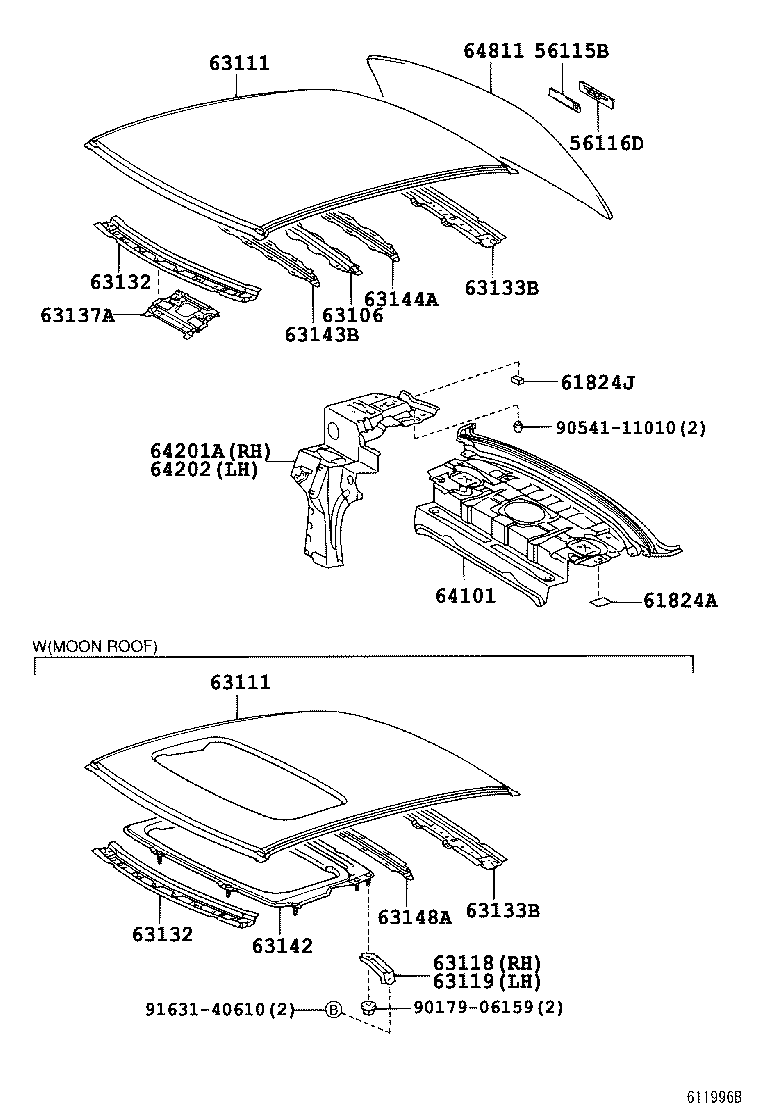

ROOF PANEL BACK WINDOW GLASS

ILLUST NO. 1 OF 2(0107-0406)

 ES300 |  ROOF PANEL BACK WINDOW GLASS 56115B - STOPPER, BACK WINDOW GLASS, NO.1 56116D - STOPPER, BACK WINDOW GLASS, NO.2 61824A - PLATE, NOISE CONTROL, NO.1 61824J - PAD, NOISE SHUTTER, NO.1 63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 63111 - PANEL, ROOF 63111 - PANEL, ROOF 63118 - SUPPORT, ROOF PANEL, RH 63119 - SUPPORT, ROOF PANEL, LH 63132 - PANEL, WINDSHIELD HEADER, INNER 63132 - PANEL, WINDSHIELD HEADER, INNER 63133B - FRAME, BACK WINDOW 63133B - FRAME, BACK WINDOW 63137A - BRACKET, DOME LAMP, NO.1 63142 - REINFORCEMENT, ROOF PANEL, NO.2 63143B - REINFORCEMENT, ROOF PANEL, NO.3 63144A - REINFORCEMENT, ROOF PANEL, NO.4 63148A - REINFORCEMENT, ROOF PANEL, NO.7 64101 - PANEL SUB-ASSY, UPPER BACK 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH 64811 - GLASS, BACK WINDOW  ** Std Part  ** Std Part  ** Std Part
