LEXUS LX470 UZJ100R-GNAGKQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

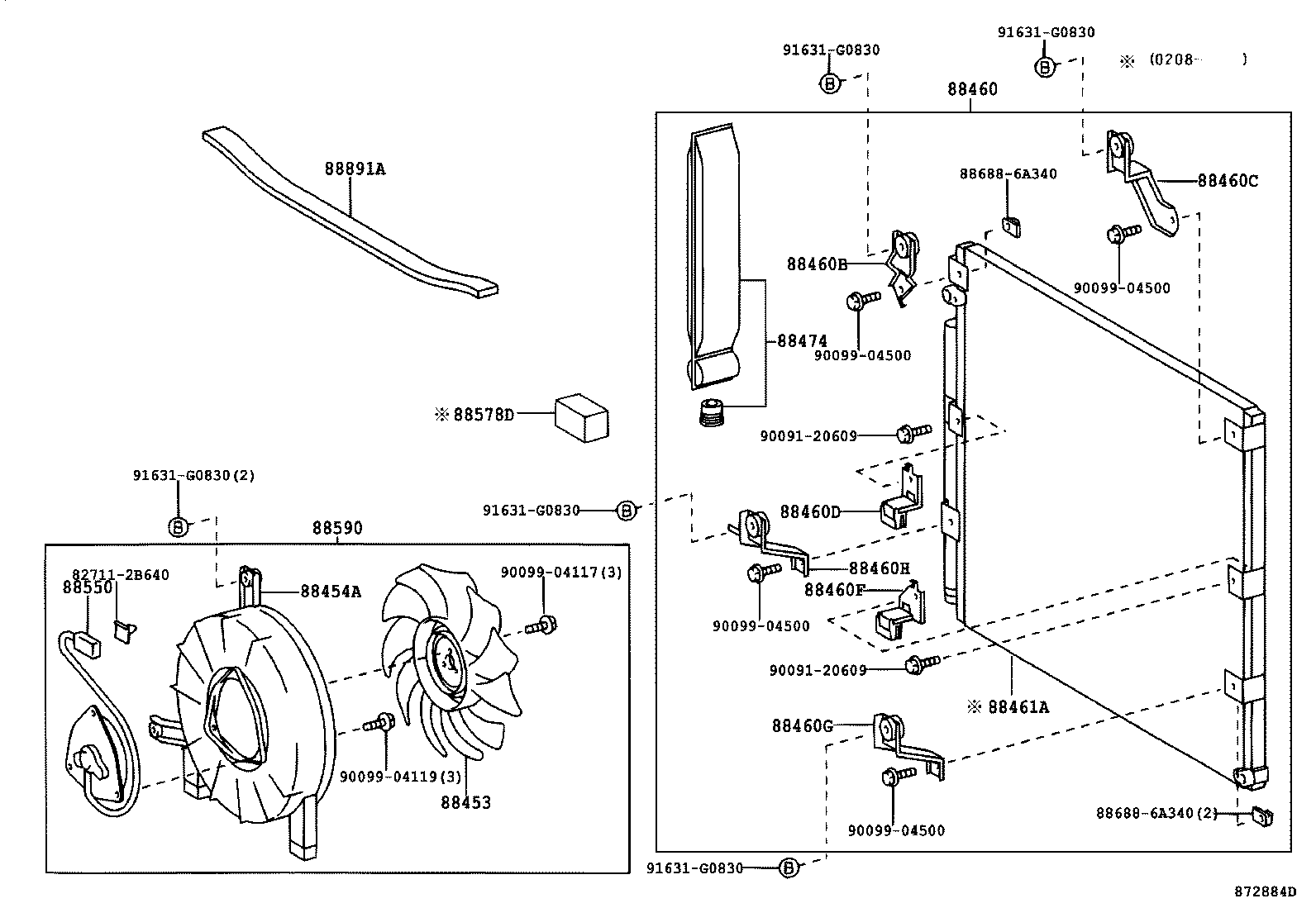

CONDENSER ILLUST NO. 1 OF 4(9801- )

LX470 | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88460B - BRACKET, COOLER CONDENSER, NO.1 88460C - BRACKET, COOLER CONDENSER, NO.2 88460D - BRACKET, COOLER CONDENSER, NO.3 88460F - BRACKET, COOLER CONDENSER, NO.4 88460G - BRACKET, COOLER CONDENSER, NO.5 88460H - BRACKET, COOLER CONDENSER, NO.6 88461A - CORE, COOLER CONDENSER 88474 - DRYER, COOLER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88578D - PACKING, COOLER PIPE, NO.1 88590 - BLOWER ASSY, W/SHROUD ** Std Part ** Std Part 88891A - PACKING A (FOR COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
