LEXUS ES240 350 ACV40L-BEAGKC / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

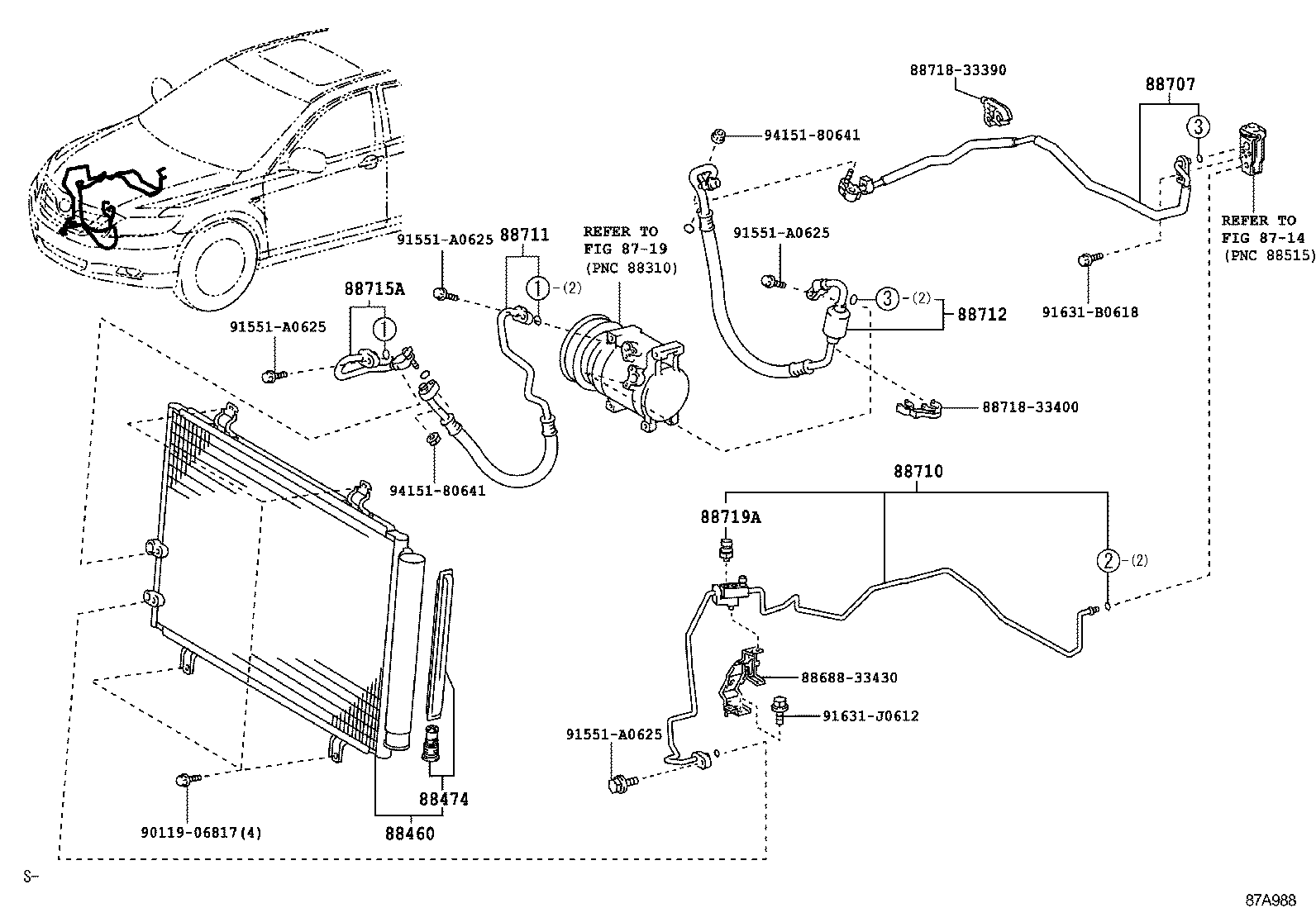

ILLUST NO. 1 OF 2(0908- )ACV40

ES240 350 | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER ** Std Part 88707 - PIPE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
