LEXUS IS250C 300C GSE22R-AKTLK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

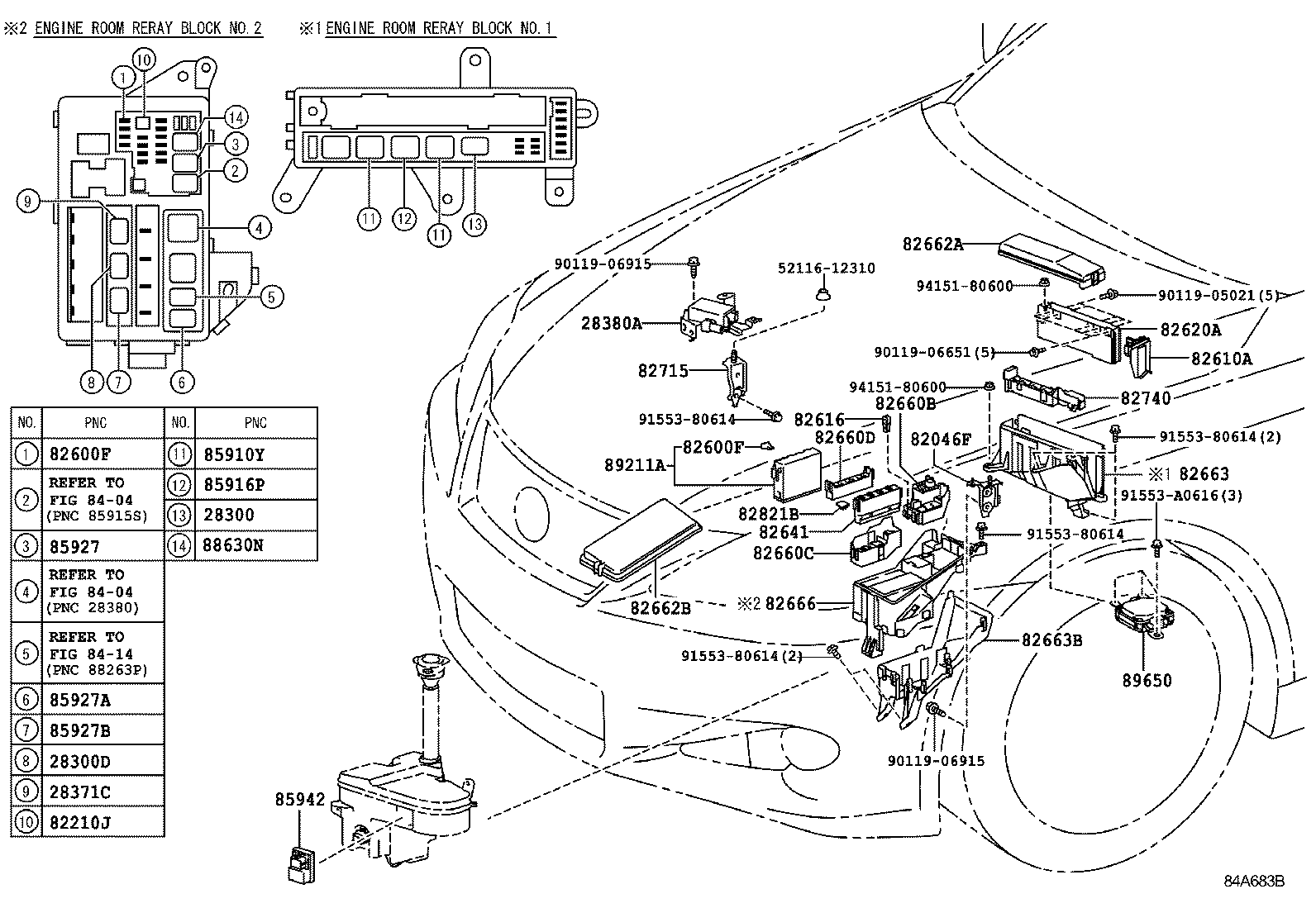

ENGINE ROOM ILLUST NO. 2 OF 8(0904- )GEN

IS250C 300C | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28371C - RELAY, IGNITION, NO.2 28380A - RESISTER, FUEL PUMP ** Std Part 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82666 - HOLDER, CONNECTOR 82715 - BRACKET,WIRING HARNESS CLAMP 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82821B - COVER, CONNECTOR ** Refer Fig ** Refer Fig ** Refer Fig 85910Y - RELAY, REAR HEATER 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85942 - RELAY, HEADLAMP CLEANER CONTROL 88630N - RELAY ASSY, COOLER 89211A - COMPUTER, MULTIPLEX NETWORK BODY 89650 - COMPUTER ASSY, POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
