LEXUS CT200H ZWA10L-AHXBBV / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

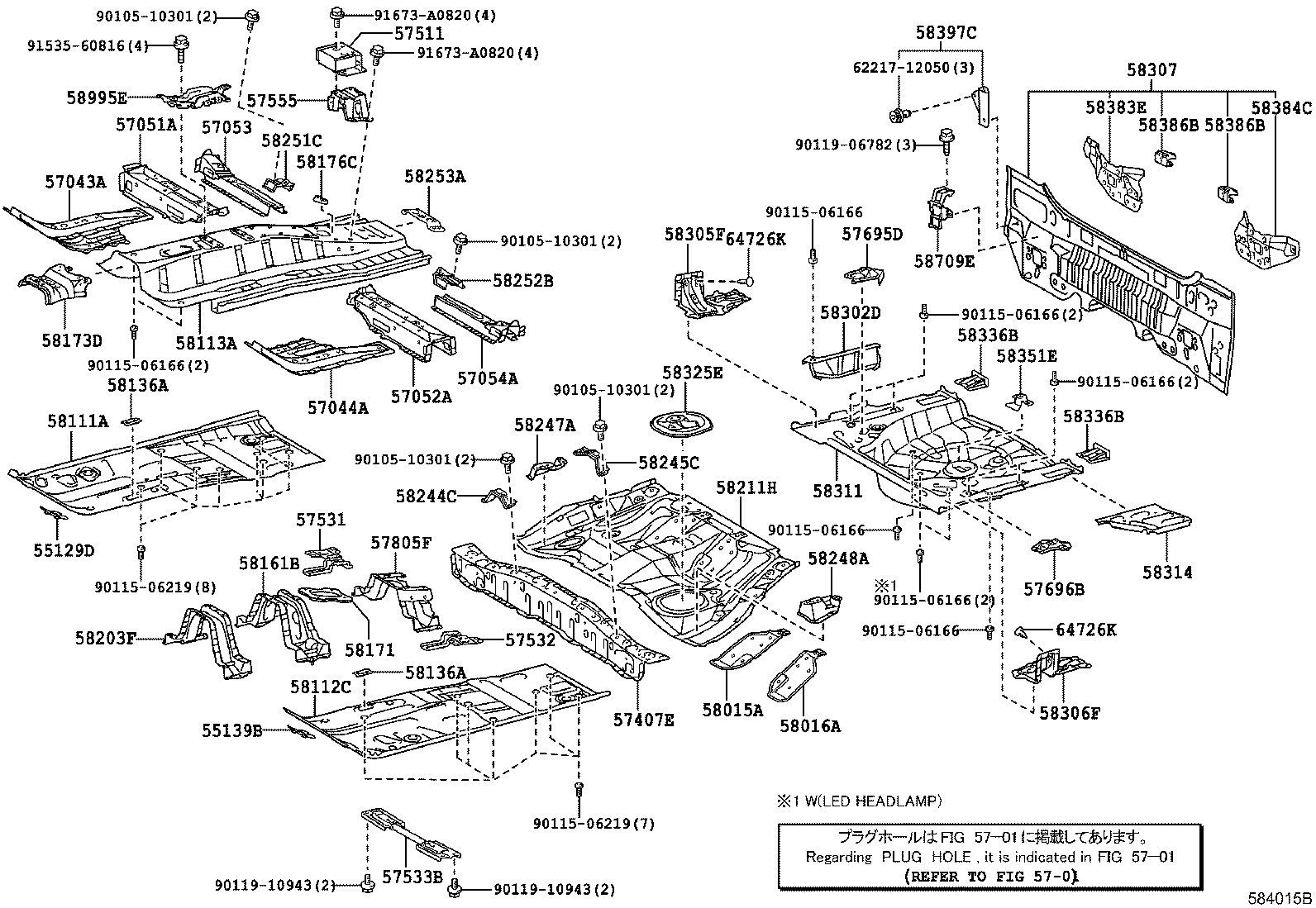

FLOOR PANEL ILLUST NO. 1 OF 2(1012- )

CT200H | FLOOR PAN LOWER BACK PANEL 55129D - COVER, DASH PANEL HOLE, RH 55139B - COVER, DASH PANEL HOLE, LH ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS 57511 - REINFORCEMENT, FRONT FLOOR, CENTER 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH 57533B - BRACE, FRONT FLOOR, CENTER 57555 - REINFORCEMENT, CENTER FLOOR, NO.5 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58136A - COVER, FRONT FLOOR SERVICE HOLE 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58171 - REINFORCEMENT, PARKING BRAKE BASE 58173D - BRACKET, COMPUTER MOUNTING, NO.4 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 58203F - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING 58211H - PAN, CENTER FLOOR 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH 58245C - BRACKET, REAR SEAT CUSHION MOUNTING, LH 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 58251C - BRACE, FLOOR PANEL, FRONT RH 58252B - BRACE, FLOOR PANEL, FRONT LH 58253A - BRACKET, PARKING CABLE CLAMP 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58351E - BRACKET, SPARE WHEEL CLAMP 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 58397C - COVER, BODY LOWER BACK, RH 58709E - CARRIER SUB-ASSY, JACK 58995E - BRACKET, CONSOLE BOX MOUNTING, NO.1 ** Std Part 64726K - CLIP, LUGGAGE TRIM, REAR 64726K - CLIP, LUGGAGE TRIM, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
