LEXUS RX270 350 450H GGL15R-AWTGKW / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR SIDE MEMBER

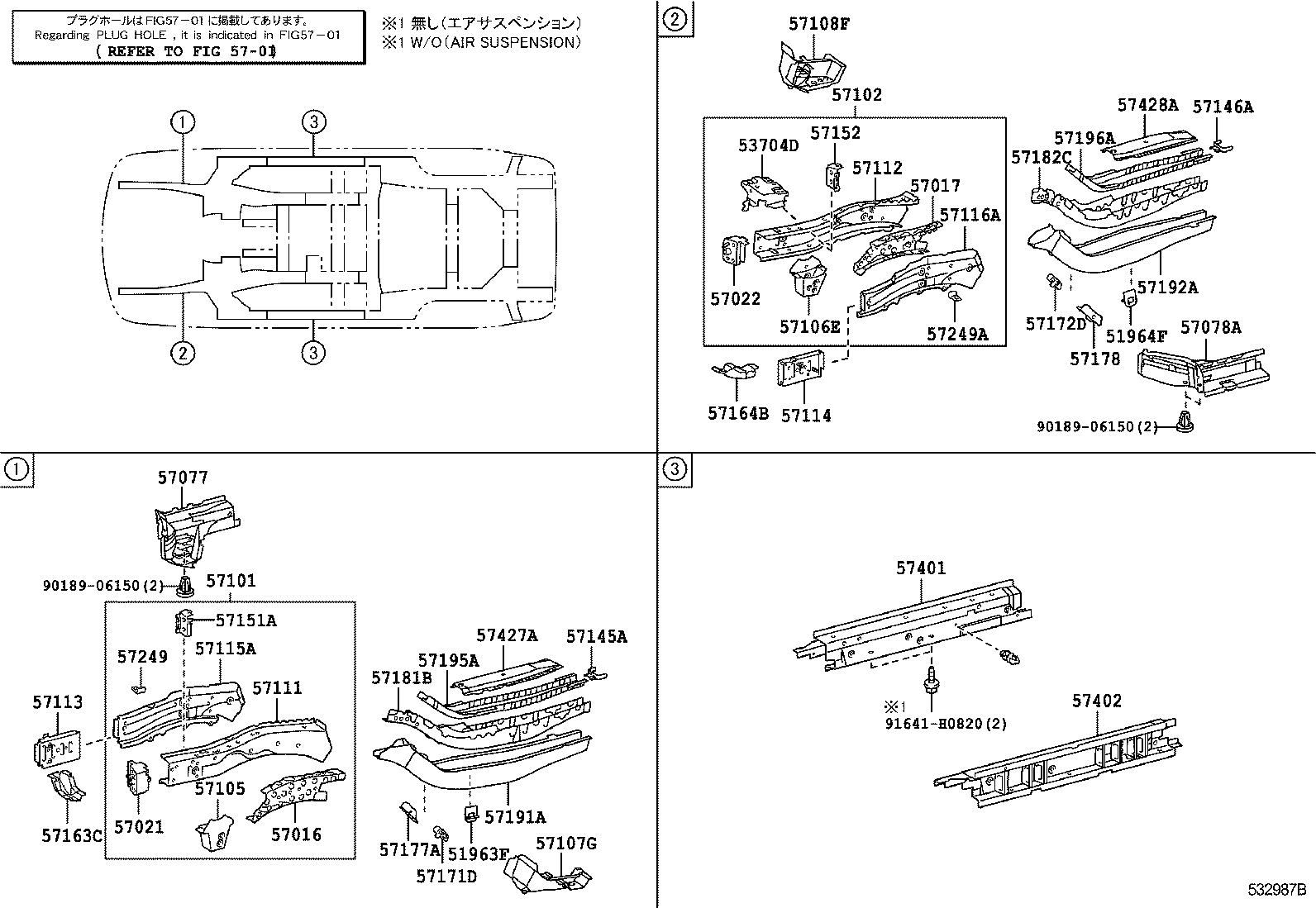

ILLUST NO. 1 OF 2(0812- )

RX270 350 450H | FLOOR SIDE MEMBER 51963F - HOOK, TRANSPORT 51964F - HOOK, TRANSPORT, LH 53704D - SUPPORT SUB-ASSY, BATTERY, LH ** Refer Fig 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH 57077 - BOX SUB-ASSY, TORQUE, FRONT RH 57078A - BOX SUB-ASSY, TORQUE, FRONT LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 57171D - PLATE, FRONT SIDE MEMBER TO FLOOR, RH 57172D - PLATE, FRONT SIDE MEMBER TO FLOOR, LH 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH 57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH 57191A - MEMBER, FRONT SIDE, INNER REAR RH 57192A - MEMBER, FRONT SIDE, INNER REAR LH 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH 57249 - BRACKET, FLEXIBLE HOSE, NO.1 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH ** Std Part ** Std Part ** Std Part
