LEXUS GS GS HYBRID AWL10R-BEXQHQ / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

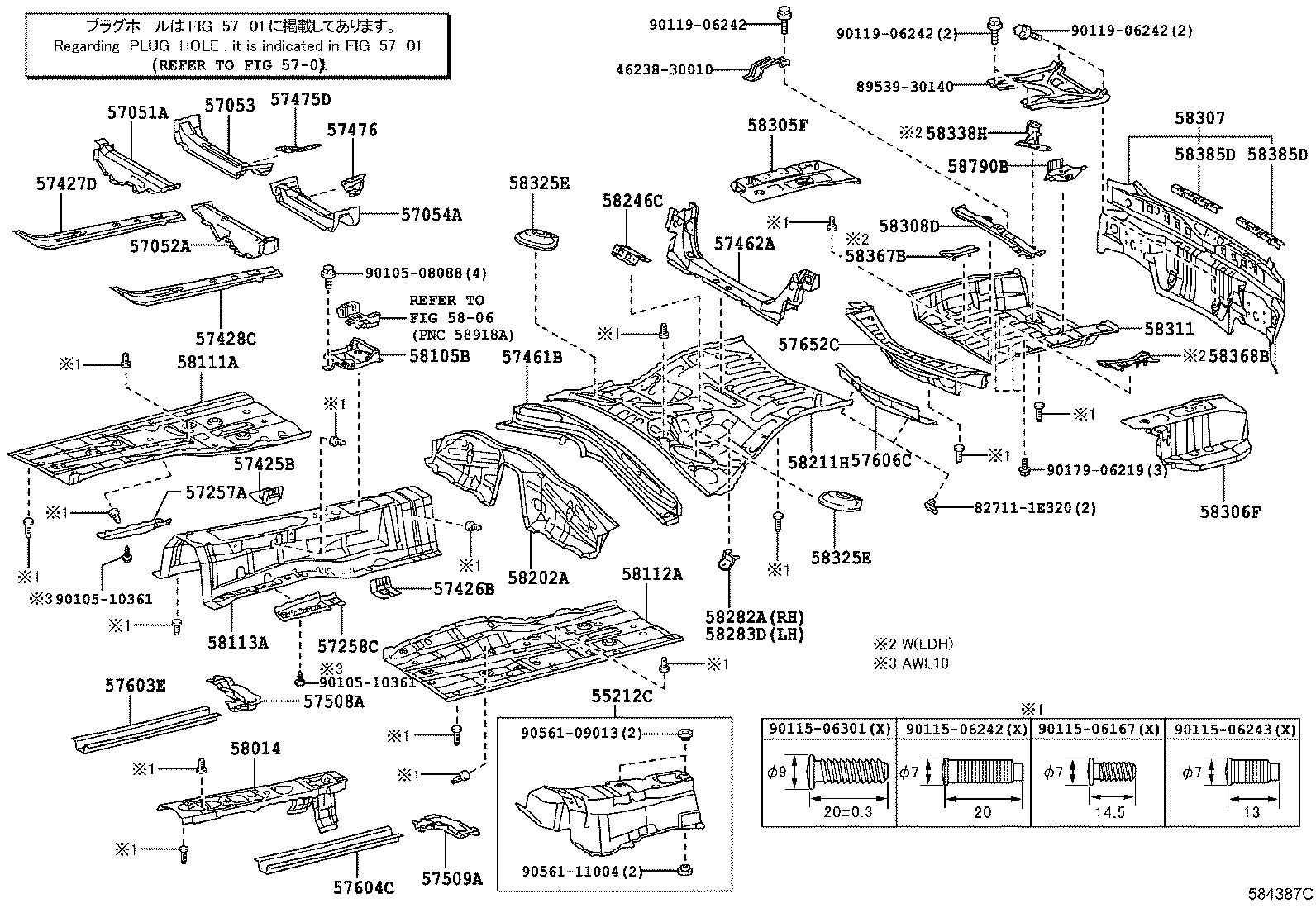

FLOOR PANEL & LOWER BACK PANEL ILLUST NO. 1 OF 2(1203- )AWL10,GWL10

GS GS HYBRID | FLOOR PAN LOWER BACK PANEL ** Std Part 55212C - SILENCER, FRONT PANEL, LOWER ** Refer Fig 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57462A - MEMBER, CENTER FLOOR CROSS, NO.2 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH 57603E - EXTENSION SUB-ASSY, REAR SIDE MEMBER, RH 57604C - EXTENSION SUB-ASSY, REAR SIDE MEMBER, LH 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57652C - MEMBER, REAR FLOOR CROSS, NO.1 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER ** Refer Fig 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB 58111A - PAN, FRONT FLOOR, RH 58112A - PANEL, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT 58211H - PAN, CENTER FLOOR 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH 58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER 58311 - PAN, REAR FLOOR 58325E - COVER, REAR FLOOR SERVICE HOLE 58325E - COVER, REAR FLOOR SERVICE HOLE 58338H - REINFORCEMENT, REAR FLOOR PAN, NO.2 RH 58367B - BRACKET, FUEL TUBE 58368B - BRACKET, FUEL TUBE, NO.2 58385D - BRACKET, REAR BUMPER COVER 58385D - BRACKET, REAR BUMPER COVER 58790B - CARRIER ASSY, JACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
