LEXUS GS GS HYBRID AWL10R-BEXQHQ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

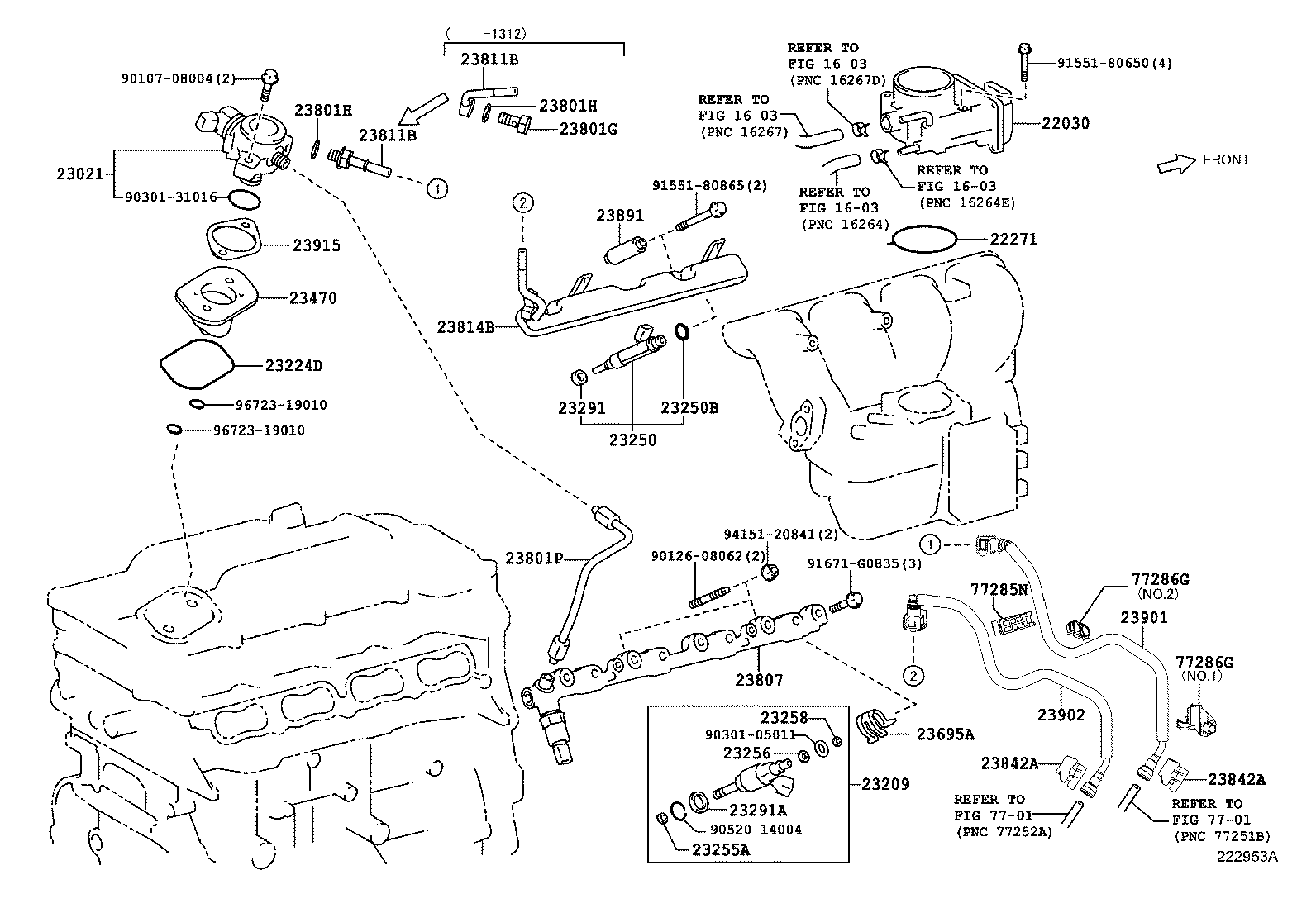

FUEL INJECTION SYSTEM

(1309- )2ARFSE..RHD

GS GS HYBRID | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23021 - PUMP SUB-ASSY, FUEL W/SEAL 23209 - INJECTOR SET, FUEL 23224D - GASKET, FUEL PUMP SPACER 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23255A - SEAL, FUEL INJECTOR 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 23291 - INSULATOR, INJECTOR VIBRATION 23291A - INSULATOR, INJECTOR VIBRATION 23470 - LIFTER ASSY, FUEL PUMP 23695A - CLAMP, NOZZLE HOLDER 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23811B - PIPE, FUEL, NO.1 23811B - PIPE, FUEL, NO.1 23814B - PIPE, FUEL DELIVERY 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23891 - SPACER, FUEL DELIVERY 23901 - TUBE SUB-ASSY, FUEL 23902 - TUBE SUB-ASSY, FUEL 23915 - INSULATOR, FUEL PUMP ** Refer Fig ** Refer Fig 77285N - CLAMP, FUEL TUBE, NO.1 77286G - CLAMP, FUEL TUBE, NO.2 77286G - CLAMP, FUEL TUBE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
