LEXUS GX400 460 GRJ158L-GKAZKC / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR FLOOR PANEL REAR FLOOR MEMBER

(0911- )

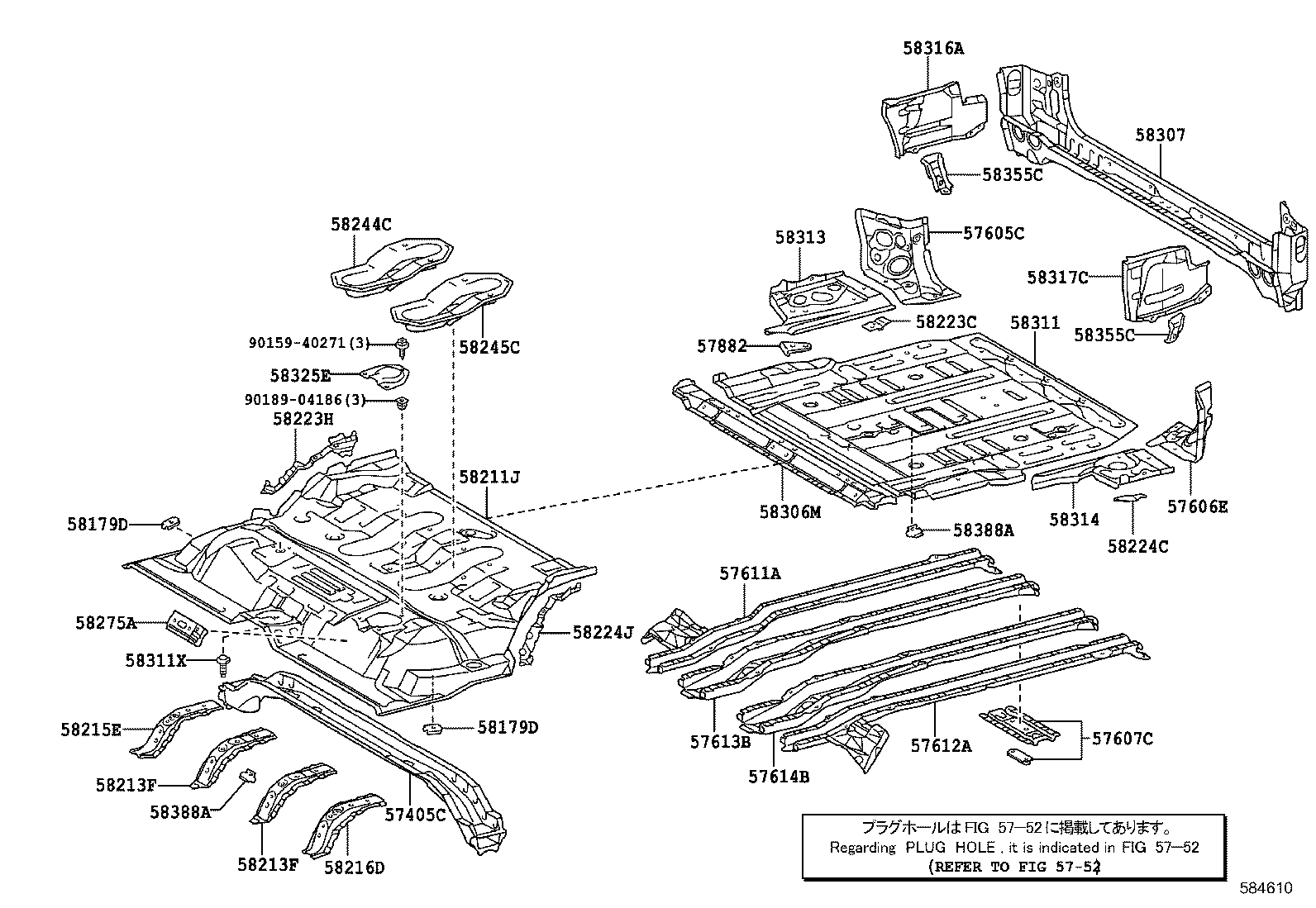

GX400 460 | REAR FLOOR PANEL REAR FLOOR MEMBER 57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR ** Refer Fig 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 57611A - MEMBER, REAR FLOOR SIDE, RH 57612A - MEMBER, REAR FLOOR SIDE, LH 57613B - MEMBER, REAR FLOOR SIDE CENTER, RH 57614B - MEMBER, REAR FLOOR SIDE, CENTER LH 57882 - REINFORCEMENT, BELT ANCHOR, NO.4 58179D - BRACKET, CLAMP FLOOR 58179D - BRACKET, CLAMP FLOOR 58211J - PAN, CENTER FLOOR 58213F - REINFORCEMENT, CENTER FLOOR PANEL 58213F - REINFORCEMENT, CENTER FLOOR PANEL 58215E - BRACKET, REAR SEAT MOUNTING, RH 58216D - BRACKET, REAR SEAT MOUNTING, LH 58223C - REINFORCEMENT, SEAT SET, NO.1 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH 58224C - REINFORCEMENT, SEAT SET, NO.2 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH 58245C - BRACKET, REAR SEAT CUSHION MOUNTING, LH 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR 58306M - PANEL SUB-ASSY, REAR FLOOR SIDE 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58311X - BOLT, REAR FLOOR WELD 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58355C - BRACKET, REAR BUMPER ARM 58355C - BRACKET, REAR BUMPER ARM 58388A - BRACKET,REAR FLOOR PLATE 58388A - BRACKET,REAR FLOOR PLATE ** Std Part ** Std Part
