LEXUS GX400 460 GRJ158L-GKAZKC / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

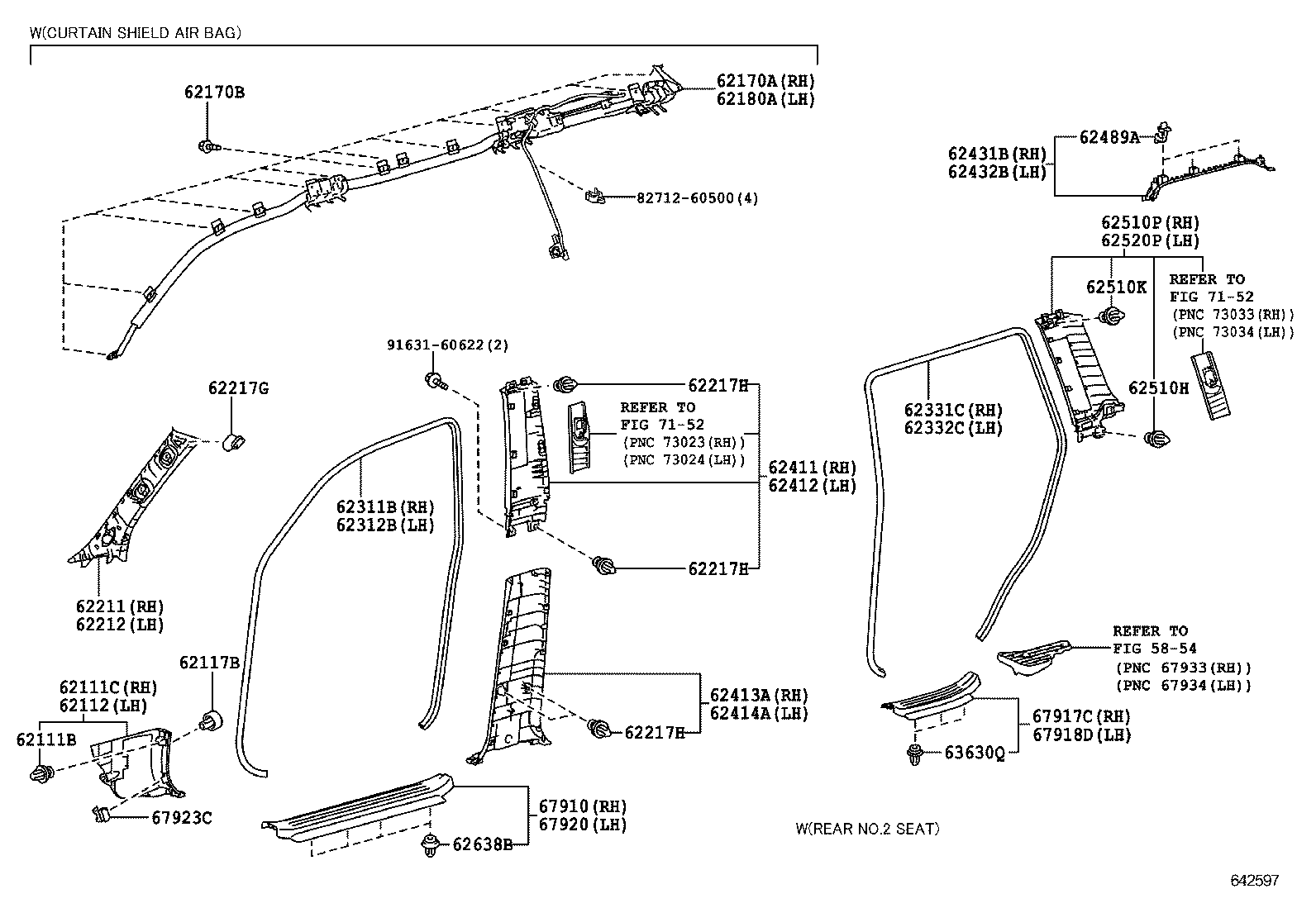

INSIDE TRIM BOARD

ILLUST NO. 1 OF 2(0911- )

 GX400 460 |  INSIDE TRIM BOARD ** Refer Fig 62111B - CLIP(FOR COWL SIDE TRIM) 62111C - BOARD, COWL SIDE TRIM, RH 62112 - BOARD, COWL SIDE TRIM, LH 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH 62170B - BOLT, W/WASHER 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH 62211 - GARNISH, FRONT PILLAR, RH 62212 - GARNISH, FRONT PILLAR, LH 62217G - CLIP, FRONT PILLAR GARNISH 62217H - CLIP, CENTER PILLER GARNISH 62217H - CLIP, CENTER PILLER GARNISH 62217H - CLIP, CENTER PILLER GARNISH 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH 62411 - GARNISH, CENTER PILLAR, RH 62412 - GARNISH, CENTER PILLAR, LH 62413A - GARNISH, CENTER PILLAR, LOWER RH 62414A - GARNISH, CENTER PILLAR, LOWER LH 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH 62489A - CLIP, ROOF SIDE INNER GARNISH 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH 62638B - CLIP 63630Q - CLIP 67910 - PLATE ASSY, DOOR SCUFF, RH 67917C - PLATE, REAR DOOR SCUFF, RH 67918D - PLATE, REAR DOOR SCUFF, LH 67920 - PLATE ASSY, DOOR SCUFF, LH 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
