LEXUS LS600H 600HL UVF45L-AEXGHV / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

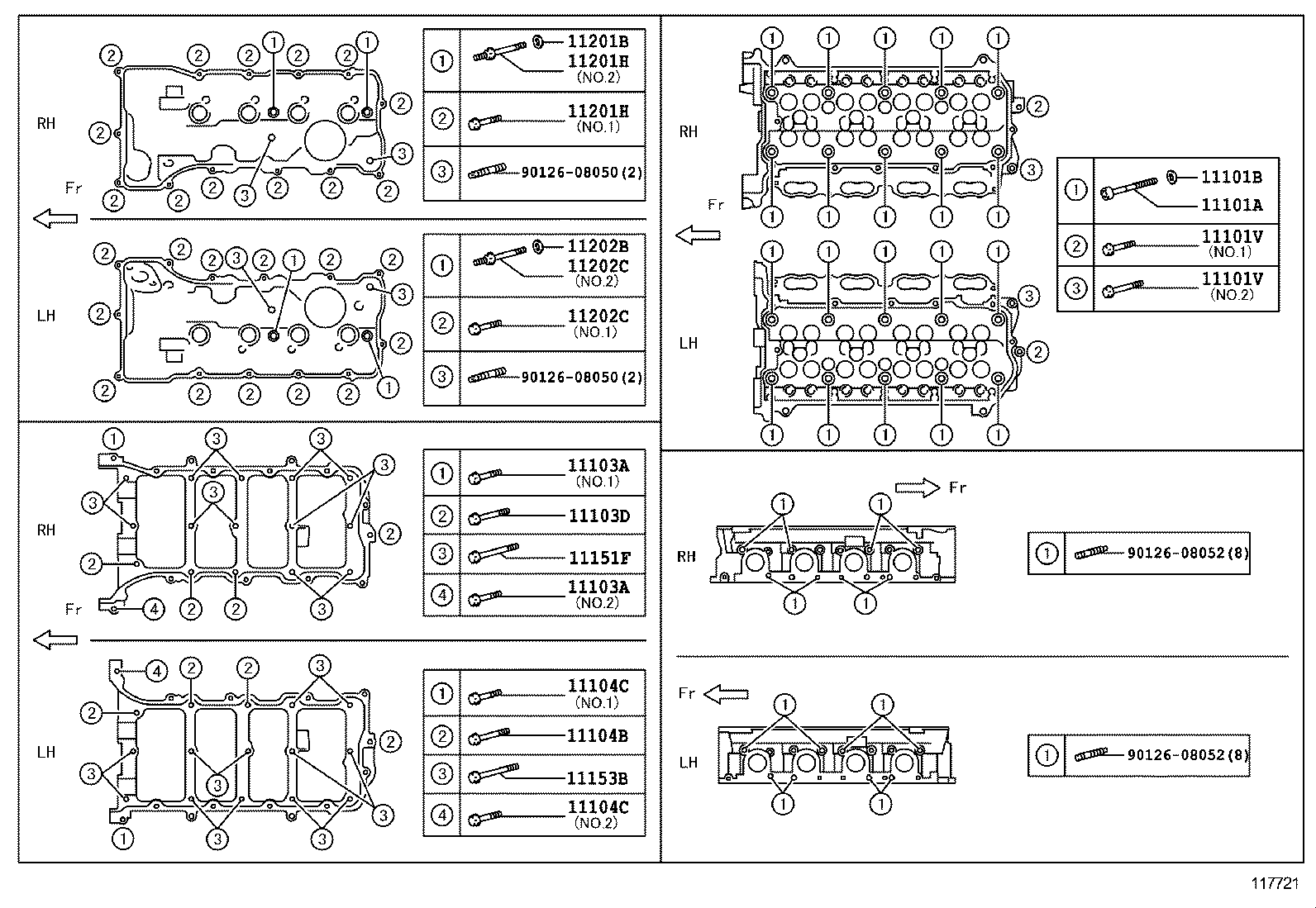

CYLINDER HEAD

ILLUST NO. 3 OF 3(1209- )

 LS600H 600HL |  CYLINDER HEAD 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101V - BOLT(FOR CYLINDER HEAD SET SUB) 11101V - BOLT(FOR CYLINDER HEAD SET SUB) 11103A - BOLT(FOR CAMSHAFT HOUSING SET) 11103A - BOLT(FOR CAMSHAFT HOUSING SET) 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201H - BOLT(FOR CYLINDER HEAD COVER) 11201H - BOLT(FOR CYLINDER HEAD COVER) 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) 11202C - BOLT(FOR CYLINDER HEAD COVER LH) 11202C - BOLT(FOR CYLINDER HEAD COVER LH)  ** Std Part  ** Std Part  ** Std Part  ** Std Part
