LEXUS SOARER SC430 UZZ40-DKAQK / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

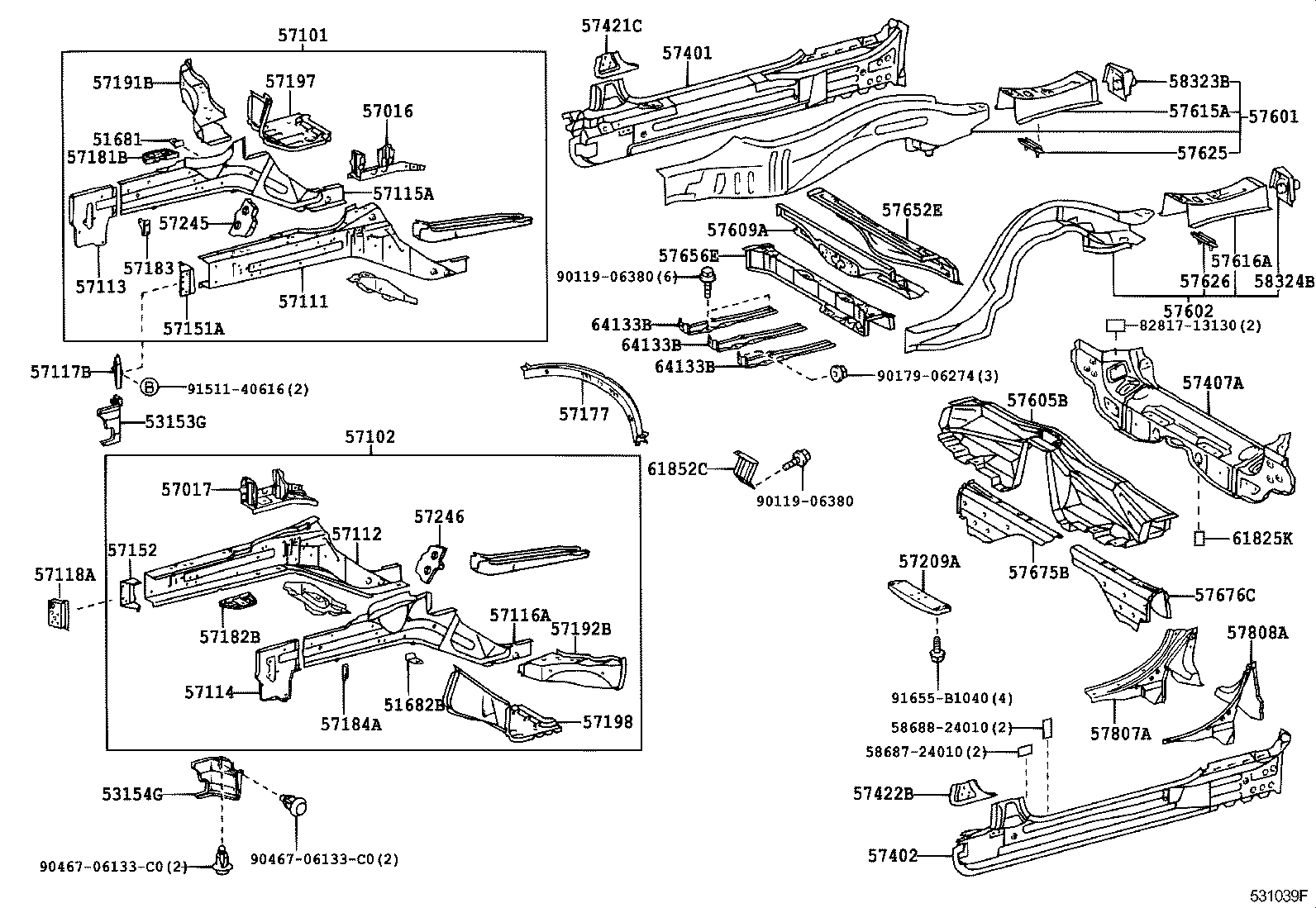

FLOOR SIDE MEMBER

ILLUST NO. 1 OF 2(0104- )

SOARER SC430 | FLOOR SIDE MEMBER 51681 - BRACKET, FLEXIBLE HOSE 51682B - BRACKET, FLEXIBLE HOSE, LH 53153G - GUIDE, RADIATOR GRILLE SIDE AIR, RH 53154G - GUIDE, RADIATOR GRILLE SIDE AIR, LH 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH 57182B - PLATE, FRONT SIDE MEMBER, NO.3 LH 57183 - PLATE, FRONT SIDE MEMBER, NO.4 RH 57184A - PLATE, FRONT SIDE MEMBER, NO.4 LH 57191B - REINFORCEMENT, FRONT SIDE MEMBER, OUTER RH 57192B - REINFORCEMENT, FRONT SIDE MEMBER, OUTER LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING 57245 - REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH 57246 - REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS 57421C - PLATE, FLOOR SIDE RAIL, RH 57422B - PLATE, FLOOR SIDE RAIL, LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH 57652E - MEMBER, REAR FLOOR CROSS, NO.1 57656E - MEMBER, REAR FLOOR CROSS, NO.5 57675B - REINFORCEMENT, REAR FLOOR CROSS, NO.1 RH 57676C - REINFORCEMENT, REAR FLOOR CROSS, NO.1 LH 57807A - REINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH 57808A - REINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 LH 58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH 58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH ** Std Part ** Std Part 61825K - PAD, NOISE SHUTTER, NO.2 61852C - BRACKET, QUARTER INNER COMPUTER, NO.2 64133B - BRACKET, LUGGAGE COMPARTMENT TRAY, FRONT 64133B - BRACKET, LUGGAGE COMPARTMENT TRAY, FRONT 64133B - BRACKET, LUGGAGE COMPARTMENT TRAY, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
