LEXUS IS250 350 GSE21-AETLH / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

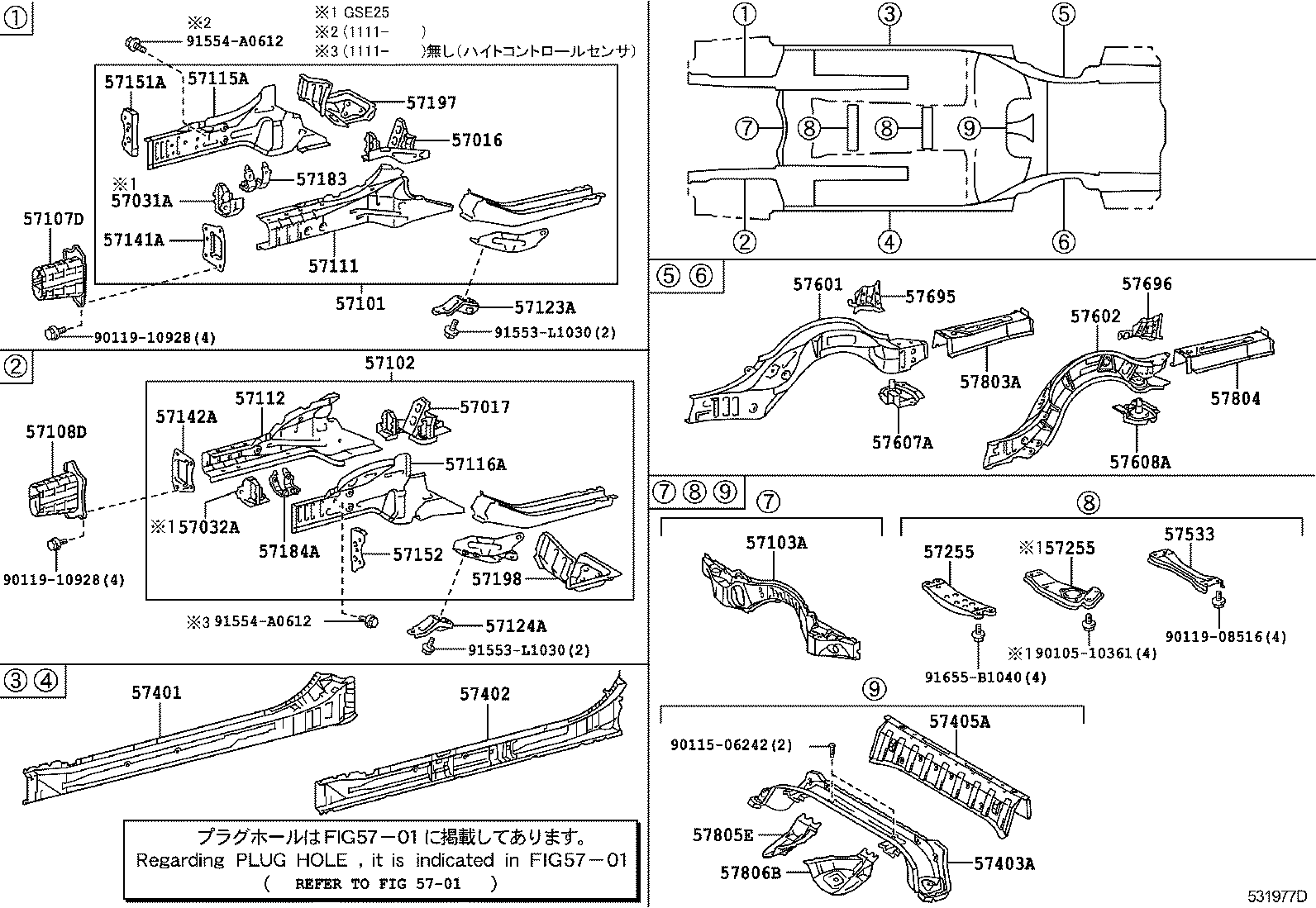

FLOOR SIDE MEMBER

(0508- )

IS250 350 | FLOOR SIDE MEMBER ** Refer Fig 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57032A - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57123A - REINFORCEMENT, STRUT BAR BRACKET, RH 57124A - REINFORCEMENT, STRUT BAR BRACKET, LH 57141A - SUPPORT, FRONT BUMPER ARM, RH 57142A - SUPPORT, FRONT BUMPER ARM, LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57183 - PLATE, FRONT SIDE MEMBER, NO.4 RH 57184A - PLATE, FRONT SIDE MEMBER, NO.4 LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57255 - MEMBER, ENGINE REAR MOUNTING 57255 - MEMBER, ENGINE REAR MOUNTING 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 57533 - BRACE, FRONT FLOOR, CENTER 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH 57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH 57805E - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 57806B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
