LEXUS GS460 430 350 UZS190-BETQK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

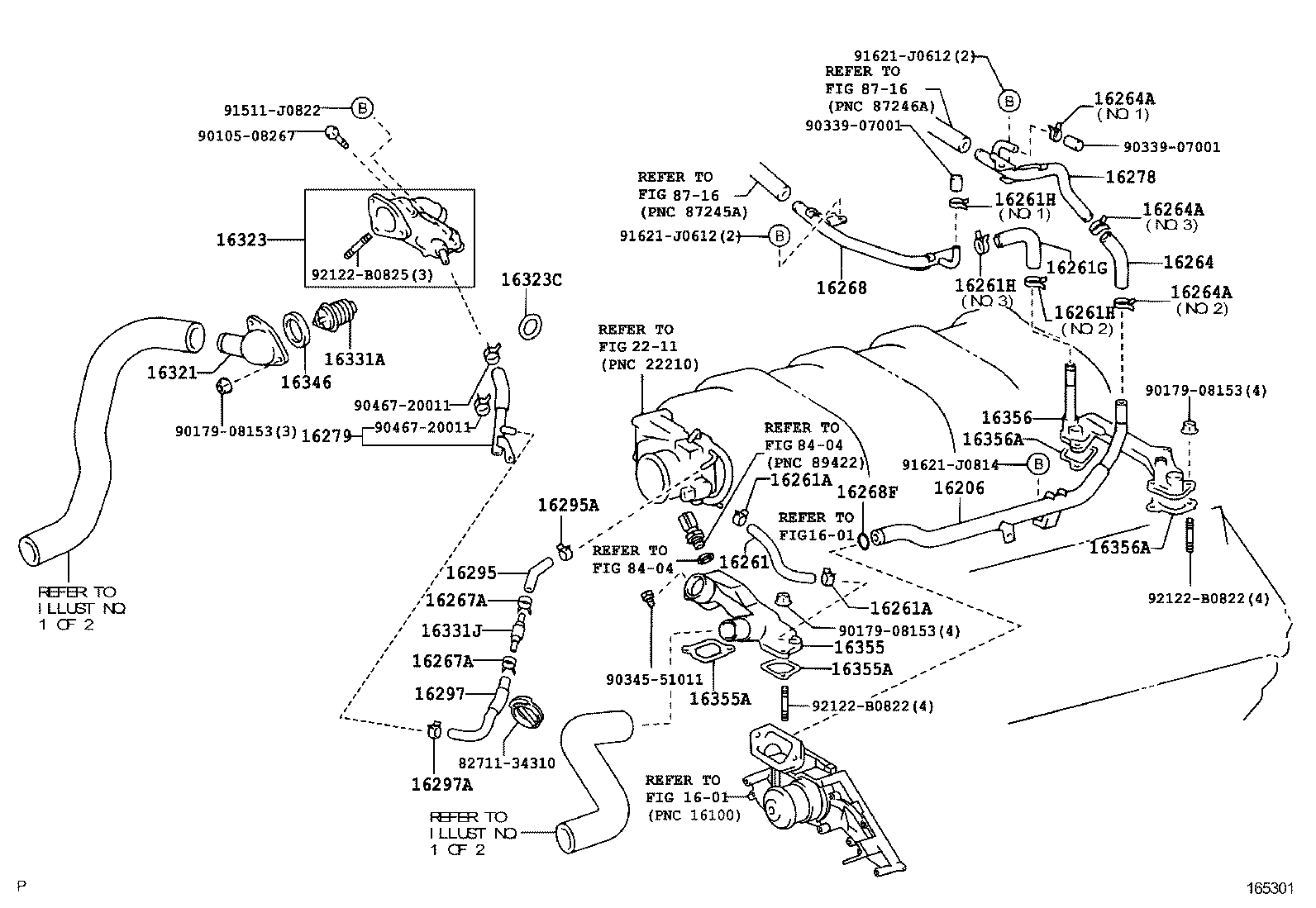

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0508-0709)3UZFE

GS460 430 350 | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16279 - PIPE, WATER BY-PASS, NO.3 16295 - HOSE, WATER BY-PASS, NO.7 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16297 - HOSE, WATER BY-PASS, NO.9 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16323C - RING, O(FOR WATER INLET HOUSING) 16331A - THERMOSTAT 16331J - THERMOSTAT, MANIFOLD 16346 - GASKET, THERMOSTAT 16355 - JOINT, WATER BY-PASS, FRONT 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16356 - JOINT, WATER BY-PASS, REAR 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16356A - GASKET(WATER BY-PASS JOINT, REAR) ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
