LEXUS LS600H 600HL UVF46-AEXQH / BODY / FRONT DOOR LOCK HANDLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR LOCK HANDLE

(0704- )

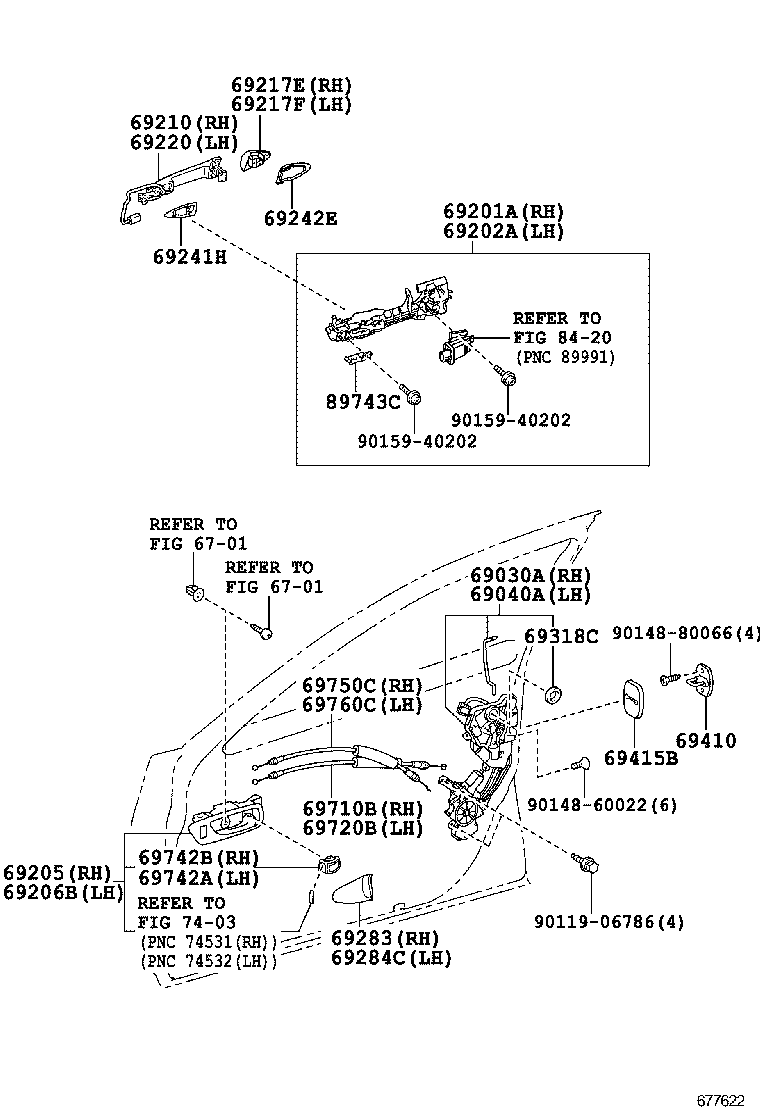

 LS600H 600HL |  FRONT DOOR LOCK HANDLE ** Refer Fig ** Refer Fig 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH 69318C - SEAL, DOOR LOCK WIRING HARNESS 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER 69415B - COVER, DOOR LOCK STRIKER, FRONT 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH 69742A - KNOB, REAR DOOR LOCK CONTROL, LH 69742B - KNOB, FRONT DOOR LOCK CONTROL, RH 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH ** Refer Fig ** Refer Fig 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
