LEXUS GS460 430 350 URS190-BEZQH / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

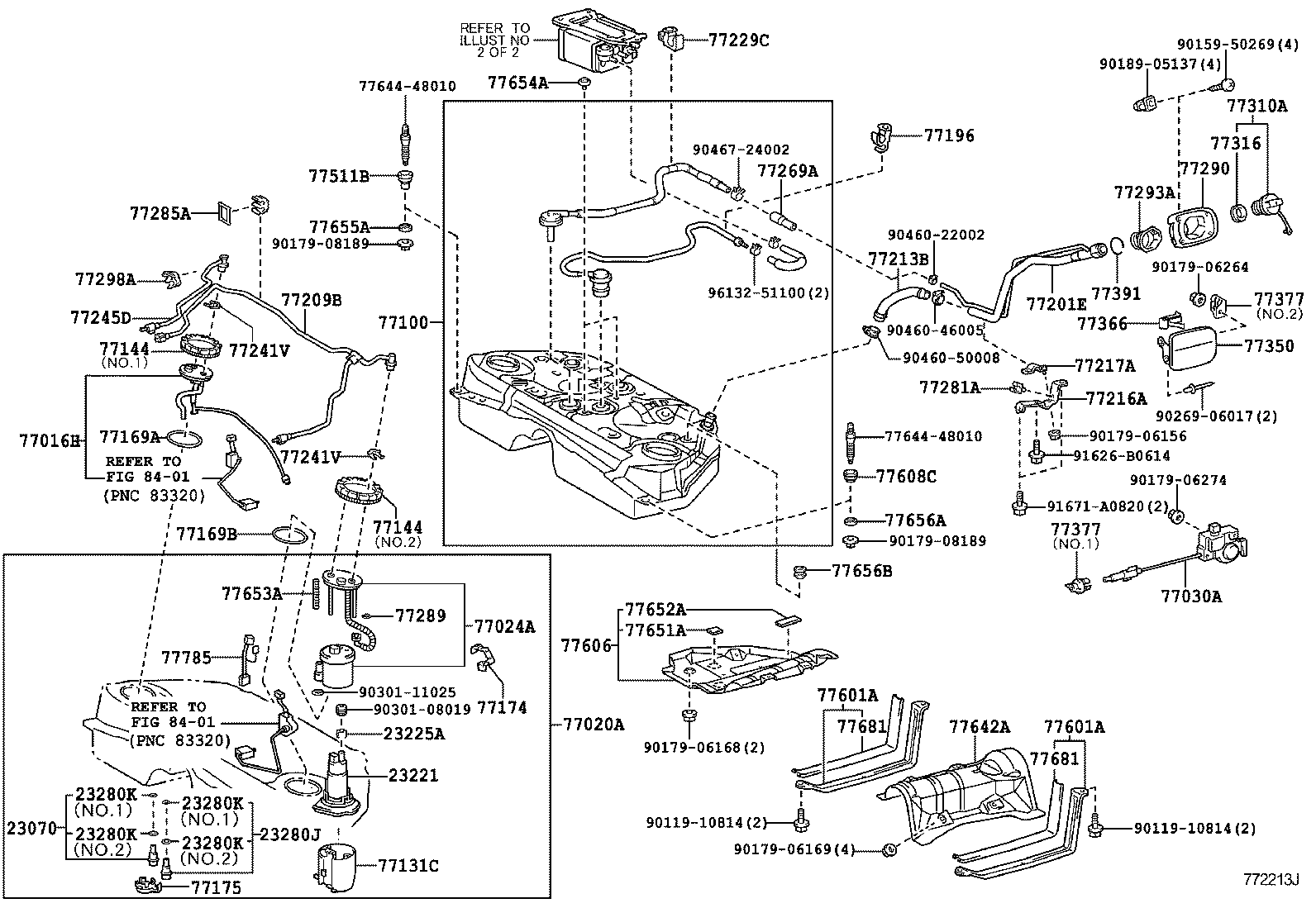

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2(0709- )URS190

GS460 430 350 | FUEL TANK TUBE 23070 - VALVE ASSY, FUEL MAIN 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77016H - TUBE SUB-ASSY, FUEL RETURN VENT 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77030A - LOCK ASSY, FUEL LID W/MOTOR 77100 - TANK ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 77174 - SUPPORT, FUEL SUCTION, NO.1 77175 - SUPPORT, FUEL SUCTION, NO.2 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77229C - CLAMP, BREATHER TUBE 77241V - CLIP, TUBE JOINT 77241V - CLIP, TUBE JOINT 77245D - TUBE, FUEL TANK RETURN VENT 77269A - HOSE, FUEL TANK BREATHER 77281A - CLAMP, FUEL FILLER PIPE 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77289 - HOLDER, FUEL TANK PIPE SETTING 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77298A - CLAMP, FUEL TUBE, NO.4 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77511B - BRACKET, FUEL TANK 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77608C - CUSHION SET, FUEL TANK 77642A - PROTECTOR, FUEL TANK, NO.2 ** Std Part ** Std Part 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77654A - CUSHION, FUEL TANK, NO.4 77655A - CUSHION, FUEL TANK, NO.5 77656A - CUSHION, FUEL TANK, NO.4 77656B - CUSHION, FUEL TANK, NO.6 77681 - SEAT, FUEL TANK BAND, RH 77681 - SEAT, FUEL TANK BAND, RH 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
