LEXUS GS460 430 350 URS190-BEZQH / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

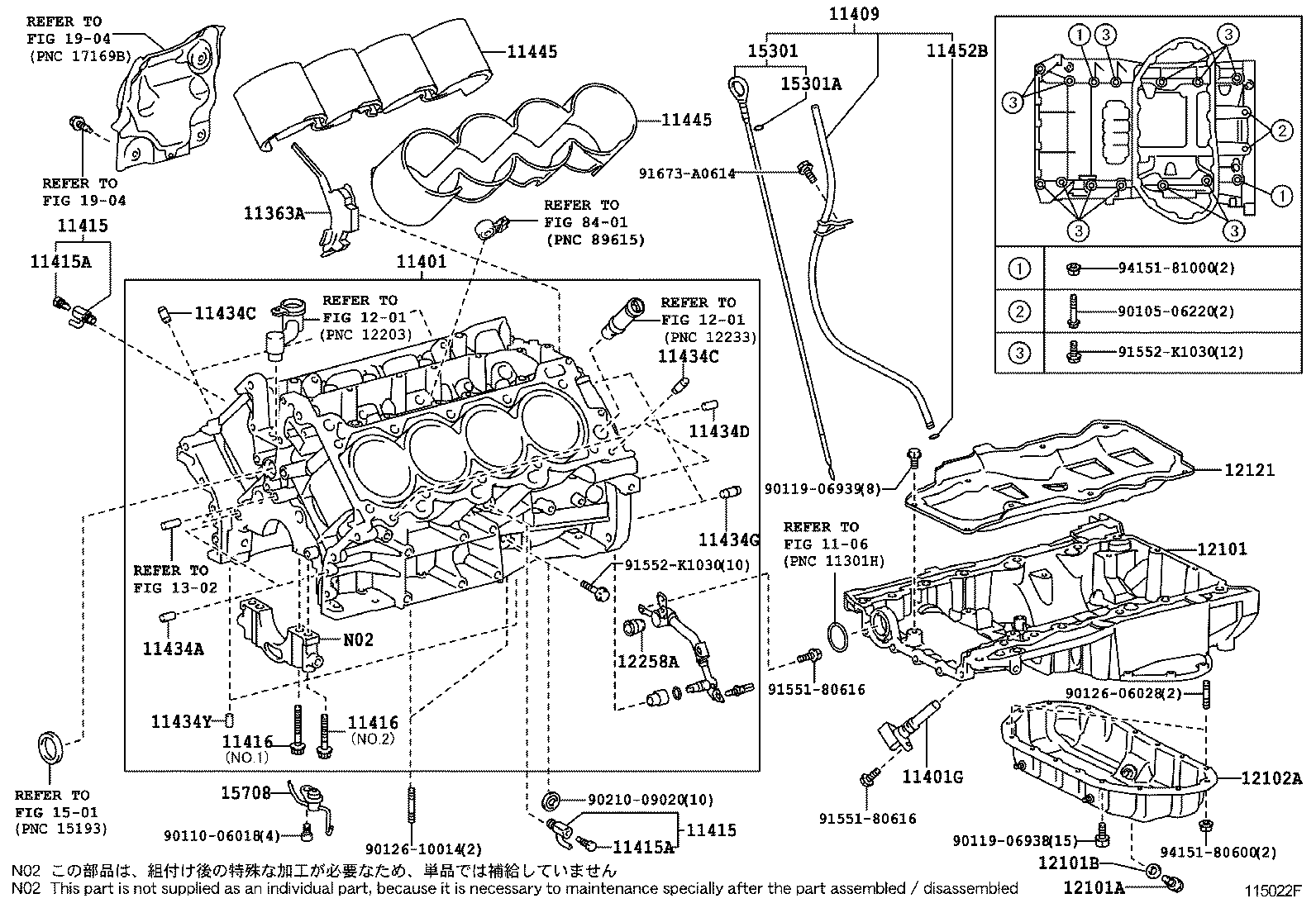

CYLINDER BLOCK

(0709- )1URFSE

GS460 430 350 | CYLINDER BLOCK ** Refer Fig 11363A - COVER, FLYWHEEL HOUSING SIDE 11401 - BLOCK SUB-ASSY, CYLINDER 11401G - SENSOR, CRANK POSITION 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11434G - PIN, STRAIGHT(FOR END PLATE) 11434Y - PIN, STRAIGHT(FOR OIL PAN) 11445 - SPACER, CYLINDER BLOCK WATER JACKET 11445 - SPACER, CYLINDER BLOCK WATER JACKET 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) ** Refer Fig ** Refer Fig 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 12121 - PLATE, OIL PAN BAFFLE, NO.1 12258A - GASKET, OIL RETURN PIPE ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15301A - RING, O(FOR OIL LEVEL GAGE) 15708 - NOZZLE SUB-ASSY, OIL, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
