LEXUS IS F USE20-FEZRH / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

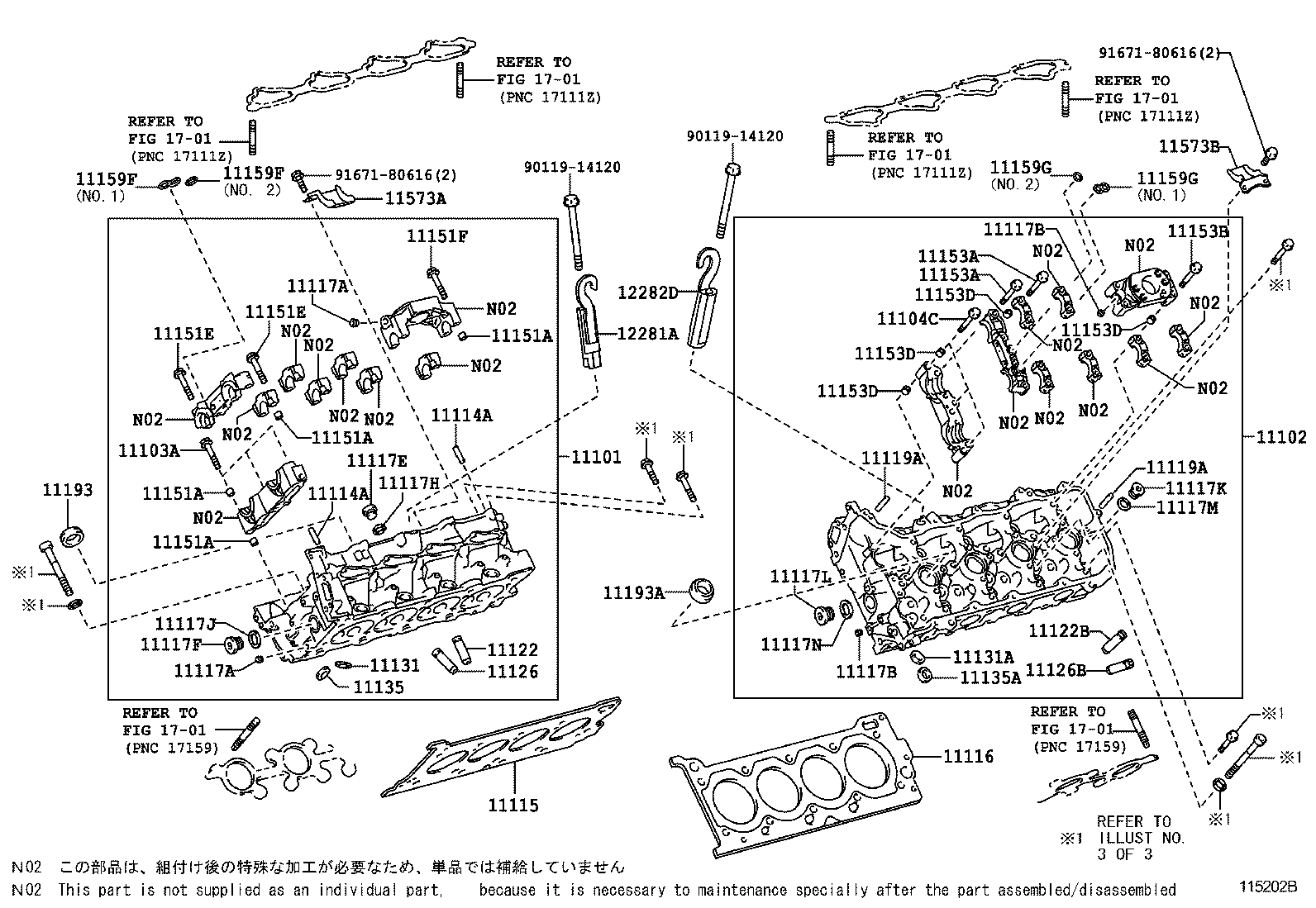

CYLINDER HEAD

ILLUST NO. 1 OF 3(0712- )

IS F | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11102 - HEAD, CYLINDER, LH 11103A - BOLT(FOR CAMSHAFT HOUSING SET) 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) 11114A - PIN, STRAIGHT 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11116 - GASKET, CYLINDER HEAD, NO.2 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 11117H - GASKET(FOR WATER HOLE) 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 11117M - GASKET(FOR WATER HOLE NO.2) 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) 11119A - PIN, STRAIGHT, NO.1 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 11126 - BUSH, EXHAUST VALVE GUIDE 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 11131 - SEAT, INTAKE VALVE 11131A - SEAT, INTAKE VALVE, NO.2 11135 - SEAT, EXHAUST VALVE 11135A - SEAT, EXHAUST VALUE, NO.2 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH 11193 - GASKET, SPARK PLUG TUBE 11193A - GASKET, SPARK PLUG TUBE, LH 11573A - PLATE, OIL REFLECTOR, RH 11573B - PLATE, OIL REFLECTOR, LH 12281A - HANGER, ENGINE, NO.1 12282D - HANGER, ENGINE, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
