LEXUS LFA LFA10-FCRAF / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

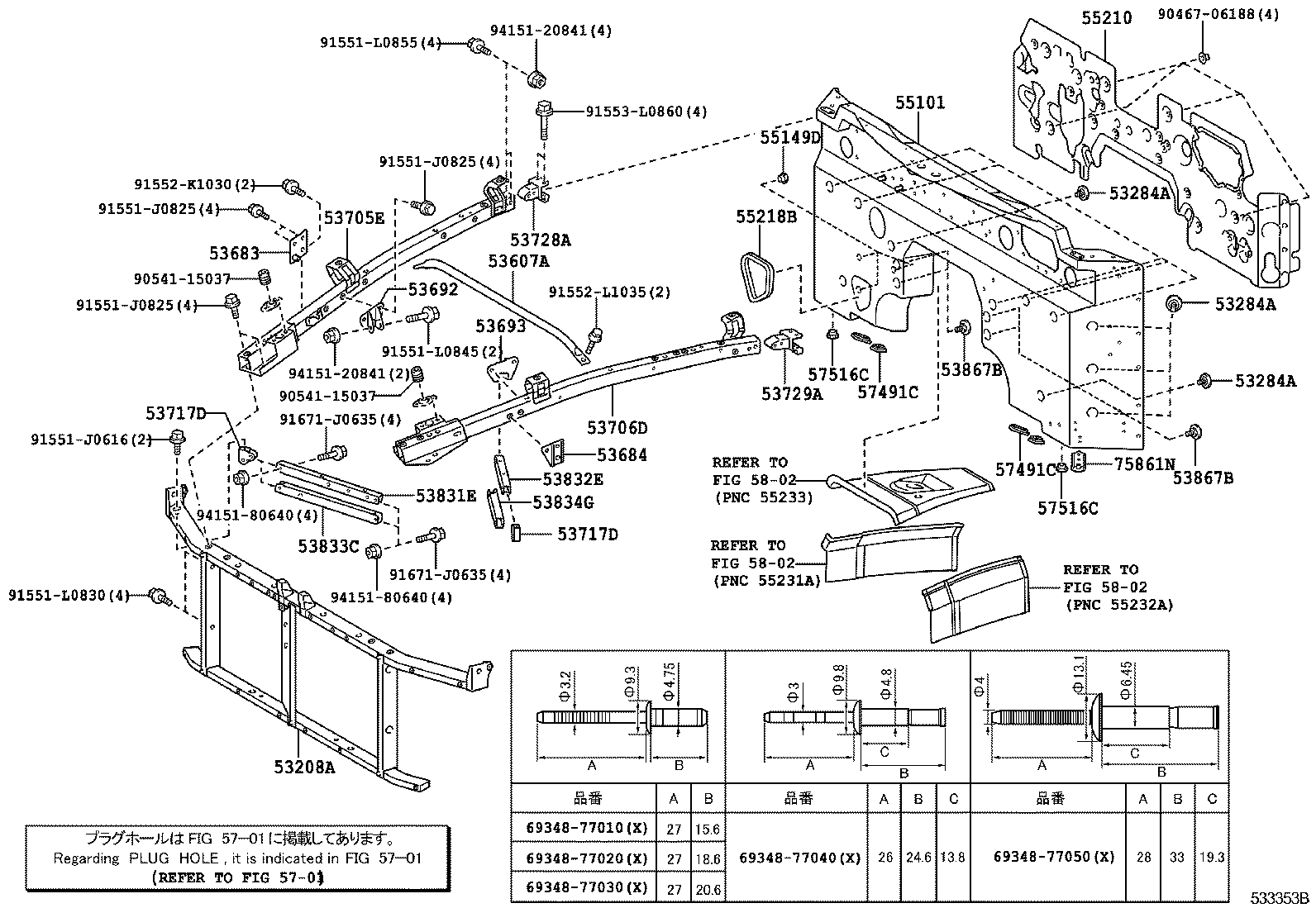

FRONT FENDER APRON DASH PANEL

(1012- )

LFA | FRONT FENDER APRON DASH PANEL 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53284A - RETAINER, FRONT BODY MOUNTING 53284A - RETAINER, FRONT BODY MOUNTING 53284A - RETAINER, FRONT BODY MOUNTING 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER 53683 - BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, RH 53684 - BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, LH 53692 - BRACKET, FRONT SUSPENSION UPPER BRACE 53693 - BRACKET, FRONT SUSPENSION UPPER BRACE 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH 53717D - GUSSET, FENDER APRON, RH 53717D - GUSSET, FENDER APRON, RH 53728A - BRACKET, FENDER APRON, RH 53729A - BRACKET, FENDER APRON, LH 53831E - REINFORCEMENT, FRONT FENDER, UPPER RH 53832E - REINFORCEMENT, FRONT FENDER, UPPER LH 53833C - REINFORCEMENT, FRONT FENDER, LOWER RH 53834G - REINFORCEMENT, FRONT FENDER, LOWER LH 53867B - RETAINER, FRONT SIDE PANEL 53867B - RETAINER, FRONT SIDE PANEL 55101 - PANEL SUB-ASSY, DASH 55149D - RETAINER, PEDAL BRACKET 55210 - INSULATOR ASSY, DASH PANEL 55218B - SEAL, DASH PANEL INSULATOR ** Refer Fig 57491C - RETAINER, FLOOR MEMBER REINFORCEMENT 57491C - RETAINER, FLOOR MEMBER REINFORCEMENT 57516C - RETAINER, FRONT FLOOR TO FRONT CROSS 57516C - RETAINER, FRONT FLOOR TO FRONT CROSS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 75861N - RETAINER, ROCKER PANEL MOULDING, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
