LEXUS GS250 350 450H GRL10-BEZQH / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

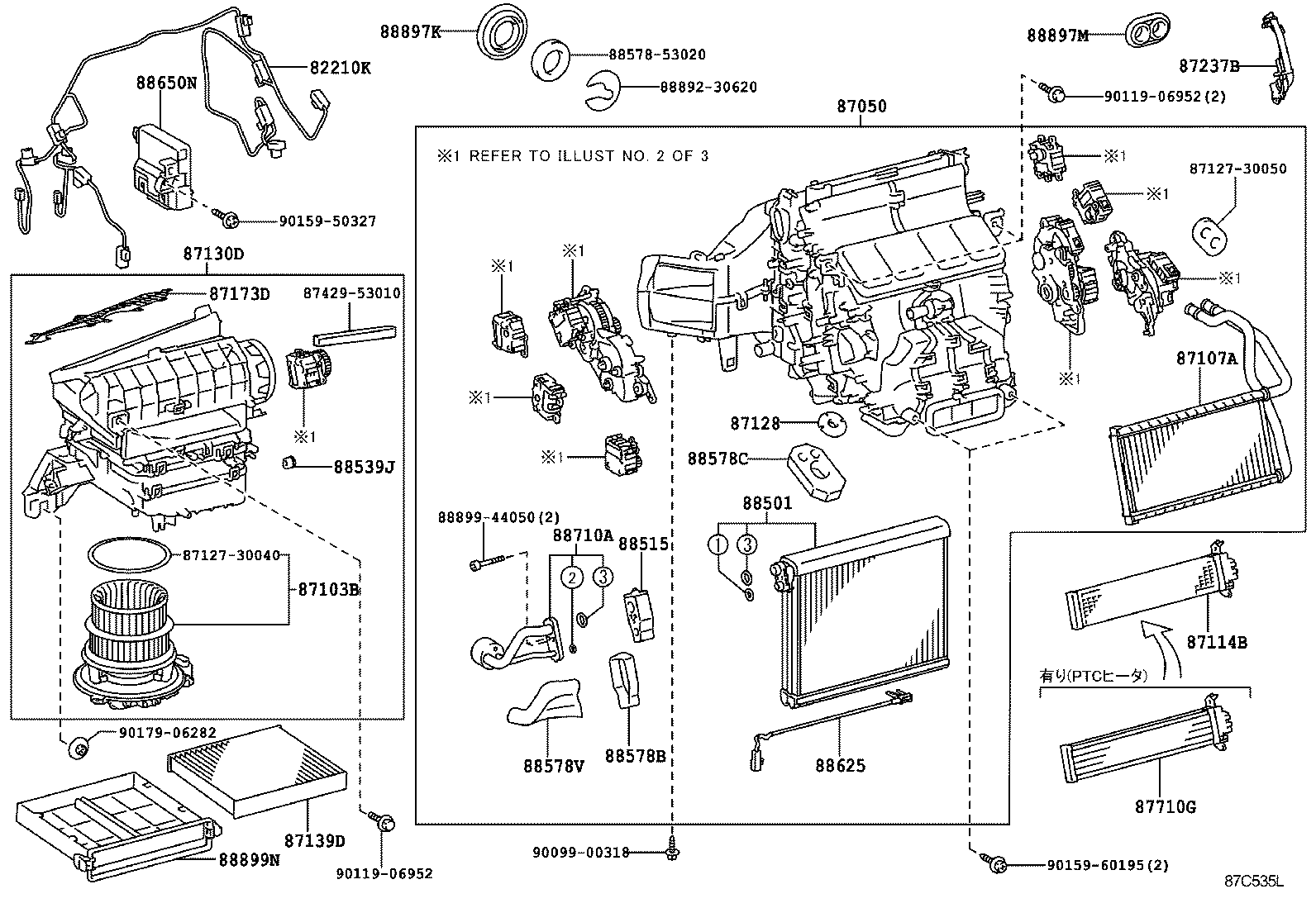

HEATING AIR CONDITIONING COOLER UNIT

ILLUST NO. 1 OF 3(1112- )

GS250 350 450H | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87114B - COVER, HEATER ** Std Part ** Std Part 87128 - GROMMET, HEATER 87130D - BLOWER ASSY 87139D - ELEMENT, AIR REFINER 87173D - PROTECTOR HEATER 87237B - COVER, HEATER PIPING ** Std Part 87710G - QUICK HEATER ASSY 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539J - HOSE, DRAIN COOLER ** Std Part 88578B - PACKING, COOLING UNIT, NO.1 88578C - PACKING, COOLING UNIT, NO.2 88578V - PACKING, COOLING UNIT, NO.3 88625 - THERMISTOR, COOLER, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER 88710A - TUBE ASSY, AIRCONDITIONER ** Std Part 88897K - GROMMET, (FOR COOLER PIPE) 88897M - GROMMET (FOR HEATER PIPE) ** Std Part 88899N - PLATE, COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
