LEXUS IS250 350 300H AVE30-AEXLH / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

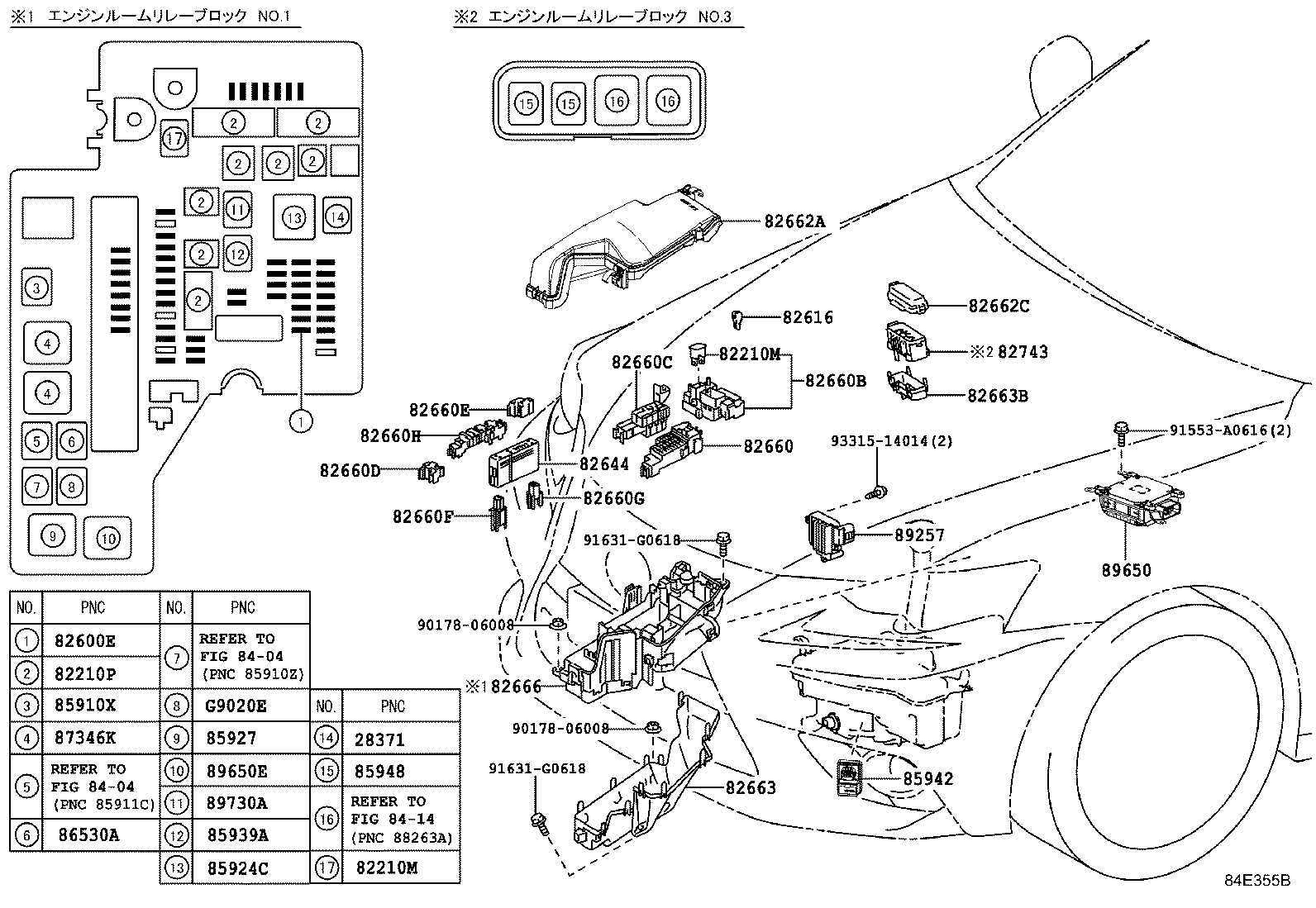

SWITCH RELAY COMPUTER

ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 2 OF 9(1304- )AVE30

IS250 350 300H | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 82210M - FUSIBLE LINK 82210M - FUSIBLE LINK 82210P - ENGINE ROOM FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82644 - COMPUTER, SEMICONDUCTOR PWR INTEGRATION 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82660E - BLOCK ASSY, RELAY 82660F - BLOCK ASSY, RELAY 82660G - BLOCK ASSY, RELAY 82660H - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82666 - HOLDER, CONNECTOR 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig 85910X - RELAY, HEATER MIRROR 85924C - RELAY, IGCT 85927 - RELAY, COOLING FAN 85939A - RELAY, STEERING HEATER 85942 - RELAY, HEADLAMP CLEANER CONTROL 85948 - RELAY, WINDSHIELD WIPER 86530A - RELAY, HORN 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN 89650 - COMPUTER ASSY, POWER STEERING 89650E - RELAY, ELECTRIC POWER STEERING 89730A - RELAY(FOR SECURITY WARNING) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9020E - RELAY, HYBRID WATER PUMP
