LEXUS IS250 350 300H AVE30-AEXLH / TOOL-ENGINE-FUEL / VENTILATION HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

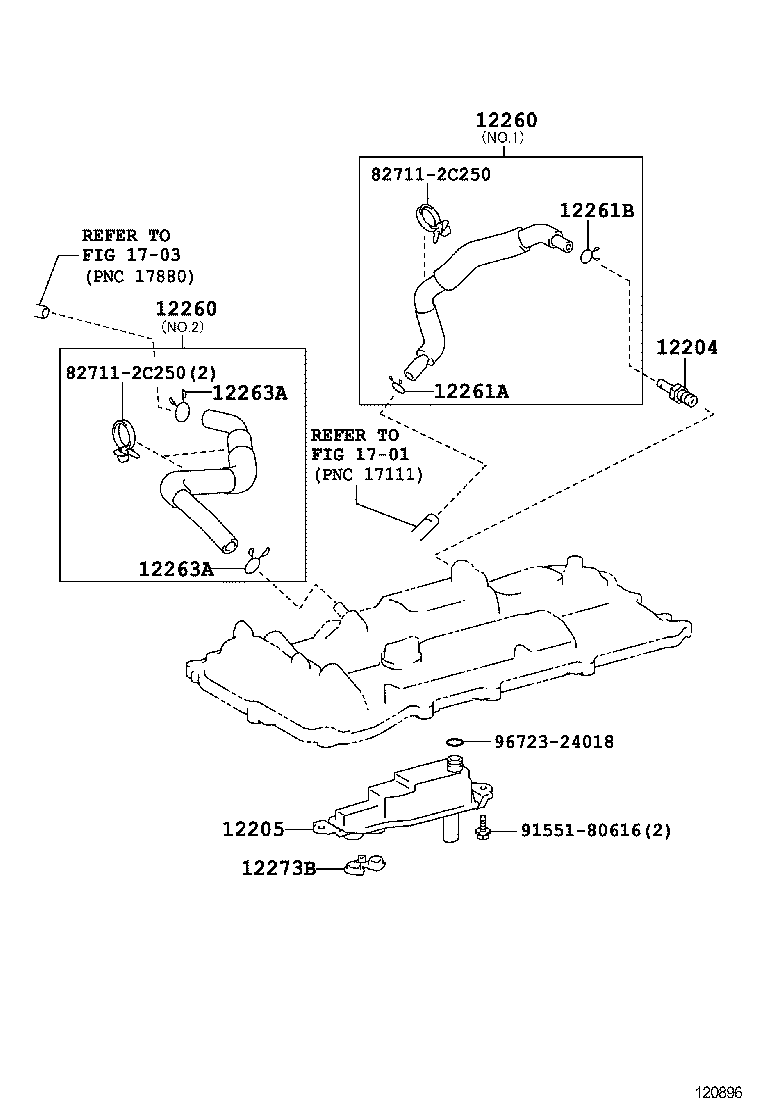

VENTILATION HOSE

(1304- )2ARFSE

 IS250 350 300H |  VENTILATION HOSE 12204 - VALVE SUB-ASSY, VENTILATION 12205 - CASE SUB-ASSY, VENTILATION 12260 - HOSE ASSY, VENTILATION 12260 - HOSE ASSY, VENTILATION 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) 12263A - CLIP(FOR VENTILATION HOSE) 12263A - CLIP(FOR VENTILATION HOSE) 12273B - GASKET, OIL SEPARATOR ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
