LEXUS IS250 350 300H GSE30-AETLH / BODY / SUSPENSION CROSSMEMBER UNDER COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

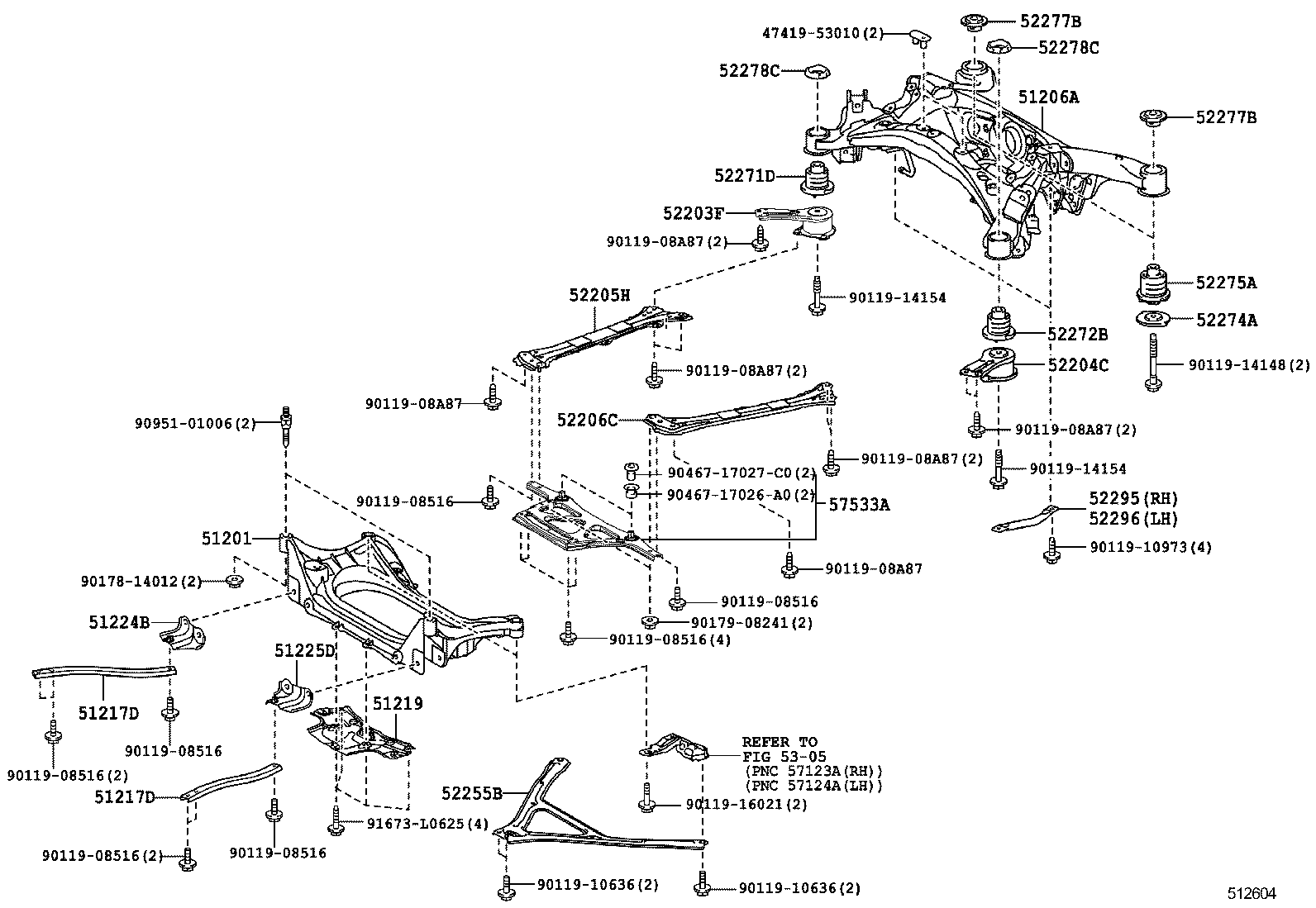

SUSPENSION CROSSMEMBER UNDER COVER

サスペンションメンバ ILLUST NO. 1 OF 2(1304- )AVE30,GSE30,31

 IS250 350 300H |  SUSPENSION CROSSMEMBER UNDER COVER  ** Std Part 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION 51206A - MEMBER SUB-ASSY, REAR SUSPENSION 51217D - MEMBER, FRONT SUSPENSION, NO.2 UPPER 51217D - MEMBER, FRONT SUSPENSION, NO.2 UPPER 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR 51224B - PLATE, FRONT SUSPENSION MENBER BRACE, RH 51225D - PLATE, FRONT SUSPENSION MENBER BRACE, LH 52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH 52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH 52255B - BRACE, FRONT SUSPENSION MEMBER 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT 52272B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER 52295 - BRACE, REAR SUSPENSION MEMBER, RH 52296 - BRACE, REAR SUSPENSION MEMBER, LH ** Refer Fig 57533A - BRACE, FRONT FLOOR, CENTER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
