LEXUS LS460 460L USF40-AEZQH / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

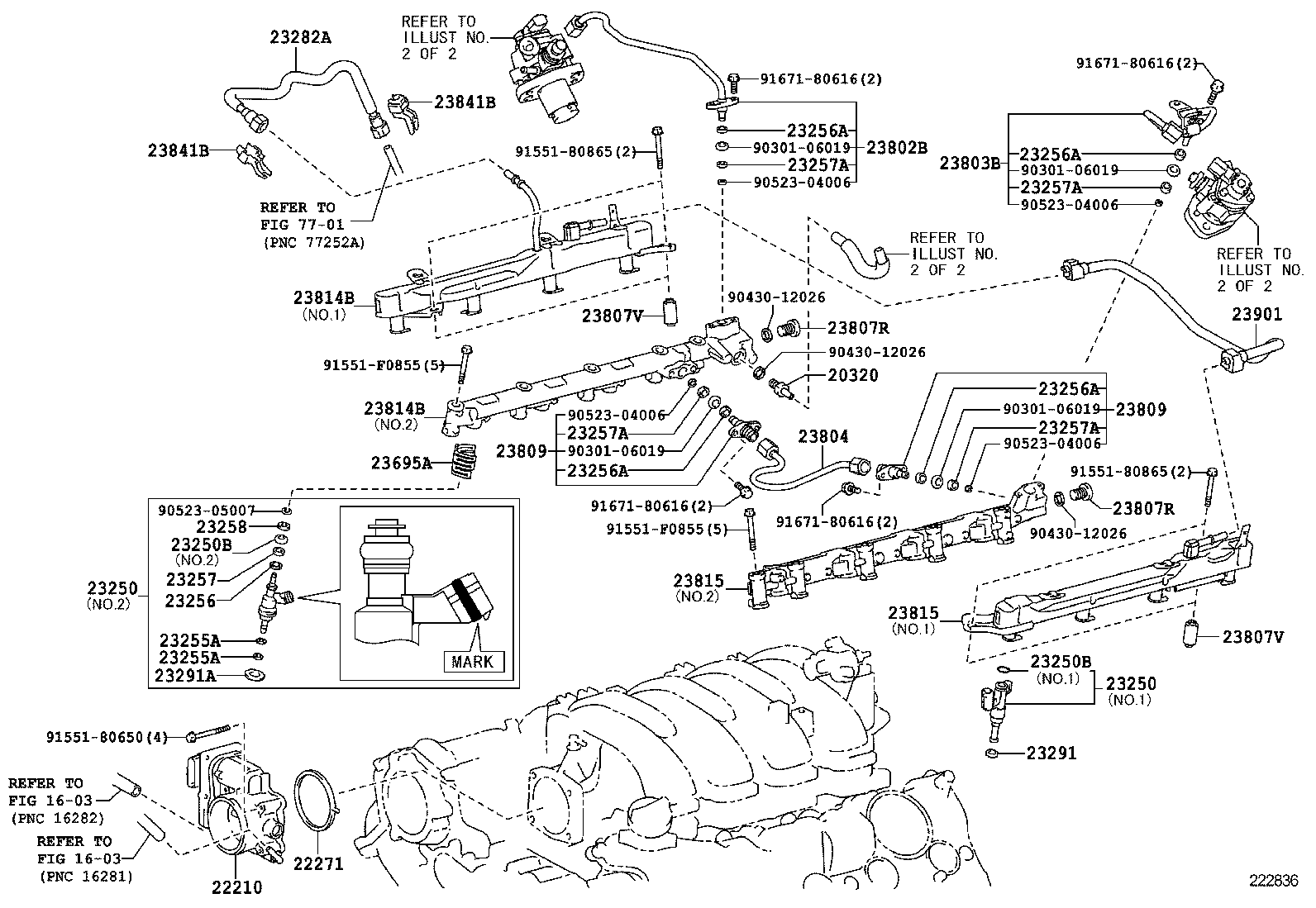

ILLUST NO. 1 OF 2(1209- )

LS460 460L | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 20320 - VALVE ASSY, FUEL RELIEF 22210 - BODY ASSY, THROTTLE 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23255A - SEAL, FUEL INJECTOR 23255A - SEAL, FUEL INJECTOR 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23256A - RING, FUEL PIPE, NO.1 23256A - RING, FUEL PIPE, NO.1 23256A - RING, FUEL PIPE, NO.1 23256A - RING, FUEL PIPE, NO.1 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 23257A - RING, FUEL PIPE, NO.2 23257A - RING, FUEL PIPE, NO.2 23257A - RING, FUEL PIPE, NO.2 23257A - RING, FUEL PIPE, NO.2 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 23282A - HOSE, FUEL, NO.4 23291 - INSULATOR, INJECTOR VIBRATION 23291A - INSULATOR, INJECTOR VIBRATION 23695A - CLAMP, NOZZLE HOLDER 23802B - PIPE SUB-ASSY, FUEL, NO.2 23803B - PIPE SUB-ASSY, FUEL, NO.3 23804 - PIPE SUB-ASSY, FUEL, NO.4 23807R - PLUG, FUEL DELIVARY PIPE 23807R - PLUG, FUEL DELIVARY PIPE 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23809 - SUPPORT SUB-ASSY, FUEL PIPE 23809 - SUPPORT SUB-ASSY, FUEL PIPE 23814B - PIPE, FUEL DELIVERY 23814B - PIPE, FUEL DELIVERY 23815 - PIPE, FUEL DELIVERY, NO.2 23815 - PIPE, FUEL DELIVERY, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
