LEXUS CT200H ZWA10-AHXEB / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

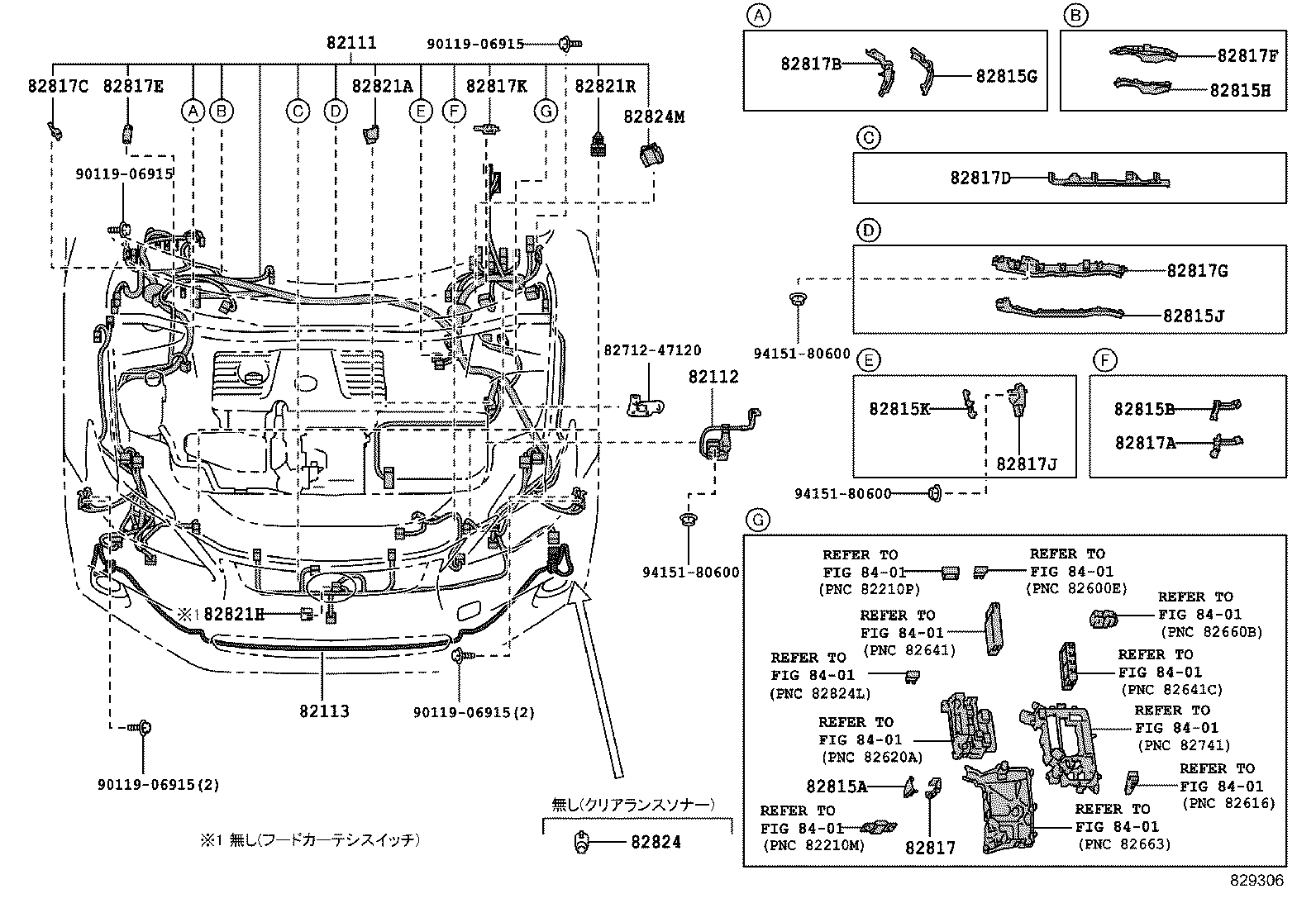

ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 1 OF11(1312- )

CT200H | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 ** Std Part 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82815G - COVER, WIRING HARNESS PROTECTOR 82815H - COVER, WIRING HARNESS PROTECTOR 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817J - PROTECTOR, WIRING HARNESS, NO.9 82817K - PROTECTOR, WIRING HARNESS, NO.10 82821A - COVER, CONNECTOR 82821H - COVER, CONNECTOR 82821R - COVER, CONNECTOR 82824 - CONNECTOR, WIRING HARNESS 82824M - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
