LEXUS LS400 UCF10L-AEPGKA / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

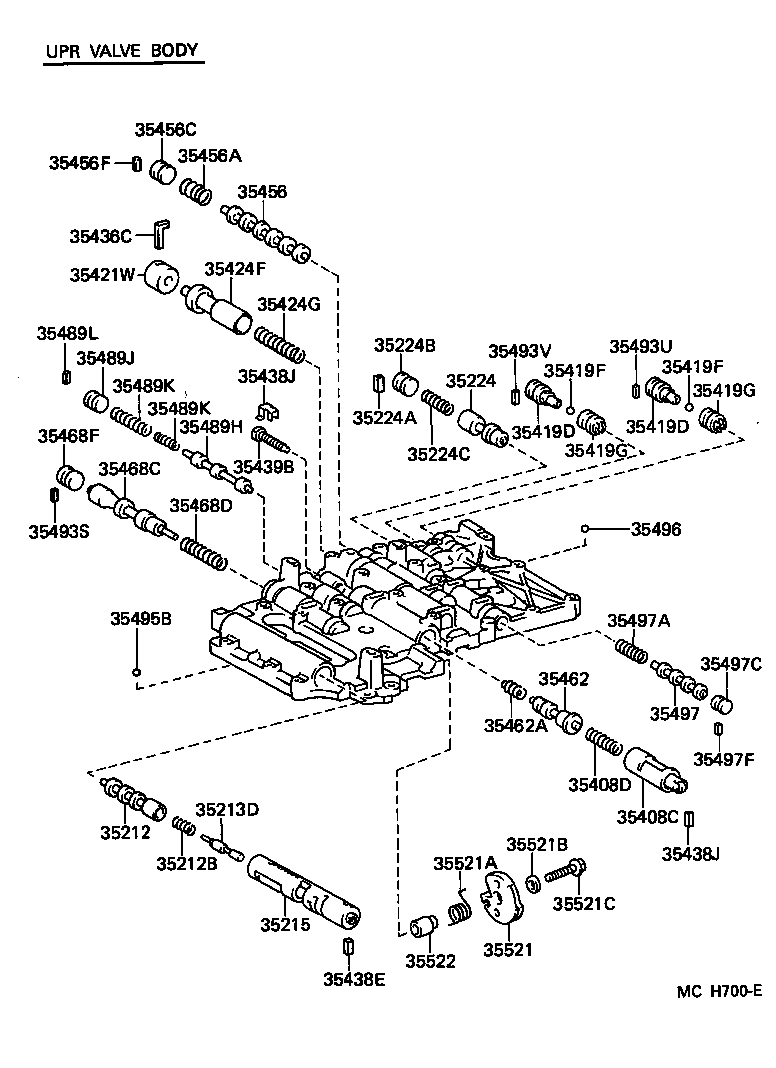

VALVE BODY OIL STRAINER ATM

A341E ILLUST NO. 2 OF 4(8905- )

LS400 | VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213D - PLUNGER, LOCK UP RELAY VALVE 35215 - SLEEVE, LOCK UP RELAY VALVE 35224 - VALVE, REVERSE CONTROL 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) 35224B - PLUG (FOR REVERSE CONTROL VALVE) 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) 35408C - PLUG SUB-ASSY, THROTTLE VALVE 35408D - SPRING, COMPRESSION (FOR THROTTLE VALVE PLUG) 35419D - VALVE, CHECK, NO.2 35419D - VALVE, CHECK, NO.2 35419F - BALL, CHECK VALVE 35419F - BALL, CHECK VALVE 35419G - VALVE, CHECK, NO.4 35419G - VALVE, CHECK, NO.4 35421W - PLUG, C-1 ACCUMULATOR VALVE 35424F - VALVE, C-1 ACCUMULATOR 35424G - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE) 35436C - RETAINER, C-1 ACCUMULATOR VALVE 35438E - SEAT, LOCK UP RELAY VALVE SPRING 35438J - SEAT, THROTTLE VALVE SPRING 35438J - SEAT, THROTTLE VALVE SPRING 35439B - SCREW, THROTTLE VALVE 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35489H - VALVE, C-1 ORIFICE CONTROL 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) 35489L - KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE) 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG 35493U - SEAT, CHECK VALVE, NO.1 35493V - SEAT, CHECK VALVE, NO.2 35495B - BALL, CHECK, NO.1 35496 - BALL, CHECK, NO.2 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35521C - BOLT (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM
