LEXUS LS400 UCF10L-AEPGKK / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(8905- )

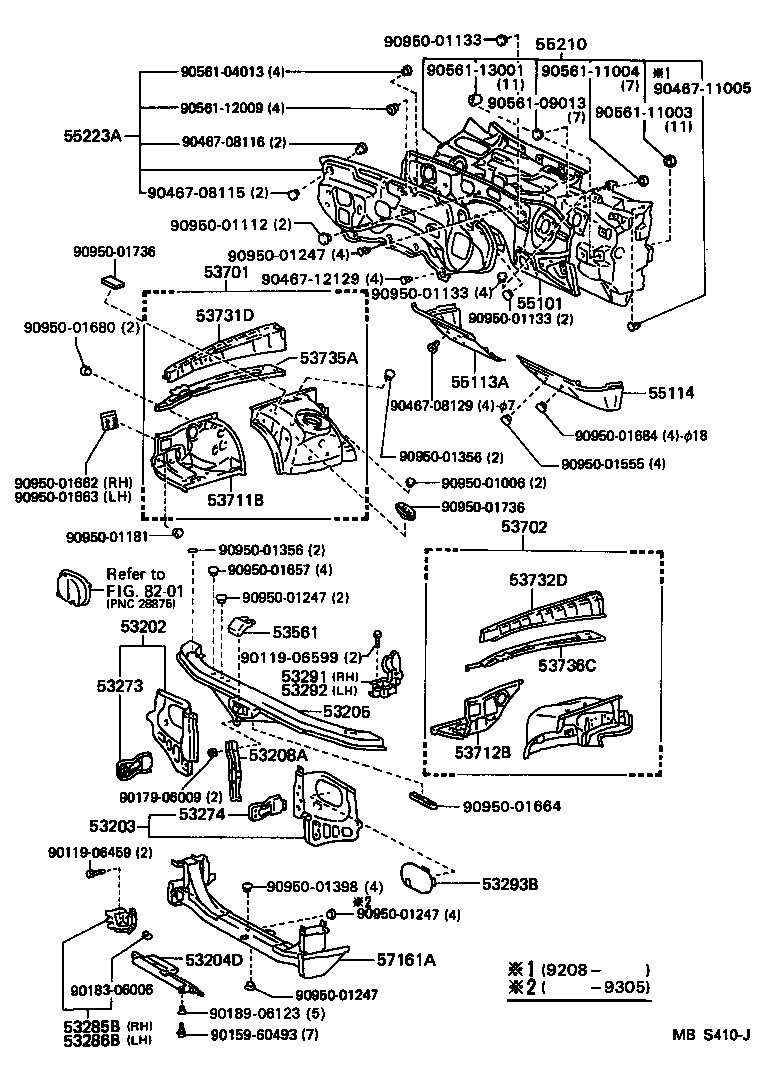

LS400 | FRONT FENDER APRON DASH PANEL 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204D - GUIDE SUB-ASSY, LOWER WIND 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH 53293B - SEAL, RADIATOR SUPPORT SERVICE HOLE 53561 - GUIDE, HOOD AUXILIARY CATCH HOOK 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH 55101 - PANEL SUB-ASSY, DASH 55113A - PANEL DASH, LOWER RH, W/INSULATOR 55114 - PANEL DASH, LOWER LH, W/INSULATOR 55210 - INSULATOR ASSY, DASH PANEL 55223A - INSULATOR, DASH PANEL, OUTER 57161A - MEMBER, FRONT CROSS, FRONT W/REAR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
