LEXUS LS400 UCF10L-AEPGKK / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

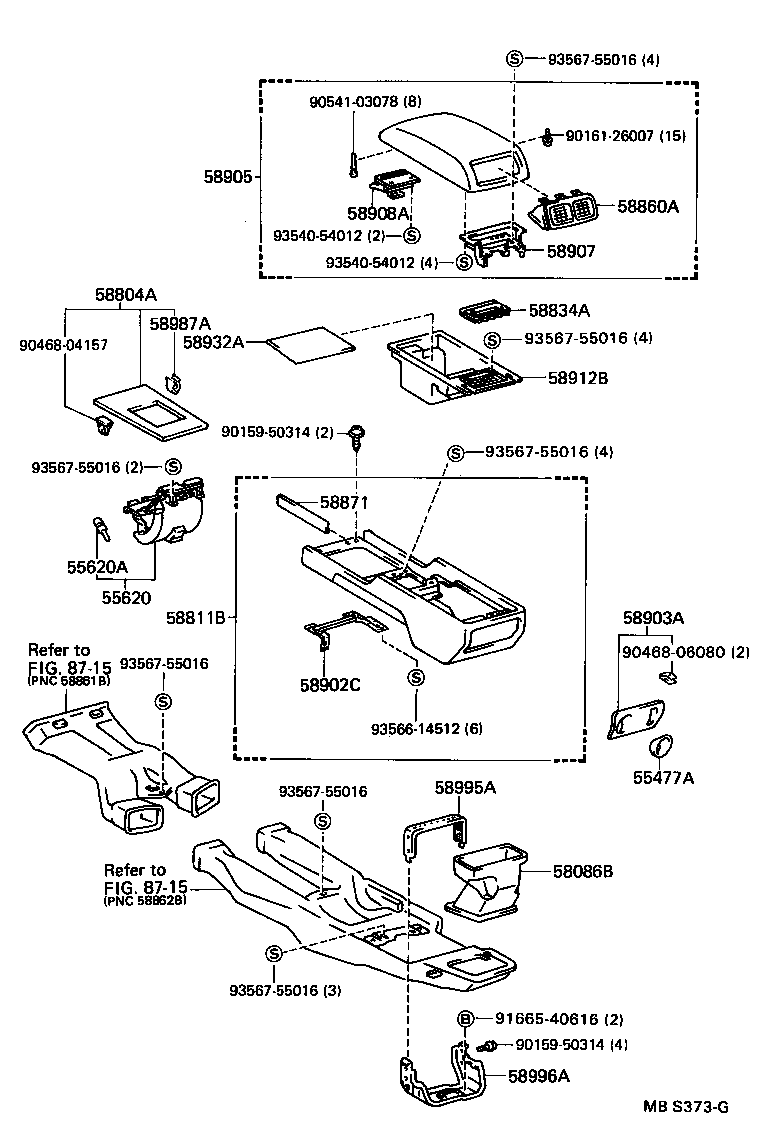

CONSOLE BOX BRACKET

(8905- )

 LS400 |  CONSOLE BOX BRACKET 55477A - BEZEL, CIGARETTE LIGHTER HOLE 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP 55620A - CUSHION(FOR CUP HOLDER) 58086B - DUCT SUB-ASSY, CONSOLE BOX 58804A - PANEL SUB-ASSY, CONSOLE, UPPER 58811B - BOX, CONSOLE 58834A - COVER, CONSOLE, LOWER 58860A - REGISTER ASSY, CONSOLE BOX 58871 - CUSHION, CONSOLE BOX 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING 58903A - PANEL SUB-ASSY, CONSOLE REAR END 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58912B - BOX, REAR CONSOLE, LOWER 58932A - GARNISH, REAR CONSOLE BOX 58987A - RETAINER, CONSOLE BOX, NO.2 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
